DIODE LED DI-CV-MW12V40W-277 40W Commercial Grade Constant Voltage Driver 12V DC

$159.30
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 848333011580

Description

Identification & Application

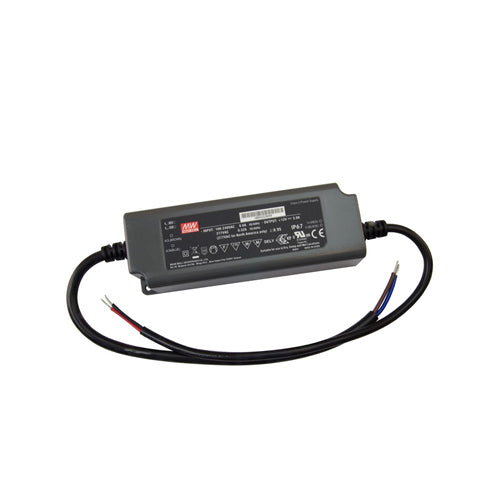

Diode LED DI-CV-MW12V40W-277 40W Commercial Grade Constant Voltage Driver 12V DC

The Diode LED DI-CV-MW12V40W-277 40W Commercial Grade Constant Voltage Driver 12V DC is a Commercial Grade Constant Voltage Driver designed to supply regulated low-voltage power for compatible LED lighting systems.

This model provides 40W maximum load, 12VDC output, 120/240/277VAC, 50/60Hz input, making it suitable for low-voltage LED tape light, linear lighting, under-cabinet lighting, cove lighting, display lighting, and architectural accent lighting.

The driver is intended for use with on/off switching, PWM dimmers, DMX systems, RGB(W) controllers, and compatible low-voltage controls. Confirm dimmer, controller, load, wire gauge, and installation conditions against the manufacturer specification sheet before installation.

Technical Performance Specifications

Brand: Diode LED
Manufacturer Part Number (MPN): DI-CV-MW12V40W-277
Series: Commercial Grade Constant Voltage
Product Type: Commercial Grade Constant Voltage Driver
Input Voltage: 120/240/277VAC, 50/60Hz
Output Voltage: 12VDC Constant Voltage
Maximum Load / Wattage: 40W
Output Configuration: Constant Voltage Output
Control / Dimming Compatibility: on/off switching, PWM dimmers, DMX systems, RGB(W) controllers, and compatible low-voltage controls
Environment: Wet Location / IP67
Ingress Protection: IP67
Dimensions: 5.9 in. L × 2.1 in. W × 1.4 in. H
Certifications / Compliance: UL Listed, Class 2, IP67 approved; see specification sheet for complete certification list
Key Features: Commercial grade wet-location design
Warranty: 5 Year Limited Warranty
Recommended Applications: low-voltage LED tape light, linear lighting, under-cabinet lighting, cove lighting, display lighting, and architectural accent lighting
Documentation: See manufacturer specification sheet.
