DIODE LED DI-DM-MW24V90W-0-10V-LPL 90W Commercial Grade 0-10V Dimmable Driver and Lo-Pro Large Jbox Combo 24V DC

$378.90
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
SKU: DI-DM-MW24V90W-0-10V-LPL
Barcode: 848333014192

Description

Identification & Application

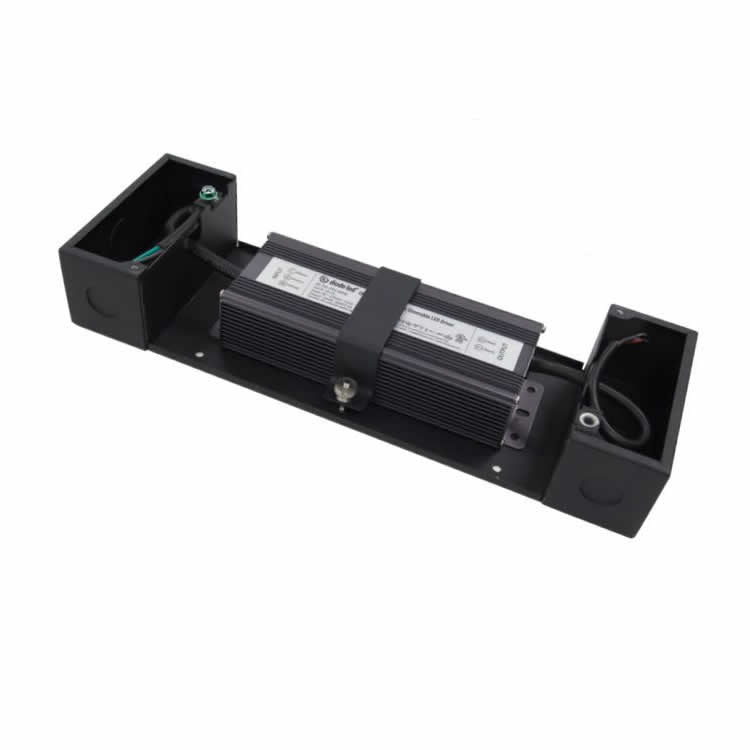

Diode LED DI-DM-MW24V90W-0-10V-LPL 90W Commercial Grade 0-10V Dimmable Driver and Lo-Pro Large Jbox Combo 24V DC

The Diode LED DI-DM-MW24V90W-0-10V-LPL 90W Commercial Grade 0-10V Dimmable Driver and Lo-Pro Large Jbox Combo 24V DC combines a compatible Diode LED driver with a specified junction box configuration, giving installers a packaged driver-and-enclosure solution for low-voltage LED lighting projects.

This model provides 90W maximum load, 24VDC output, 120/240/277VAC, 50/60Hz input, making it suitable for commercial dimming projects, retrofit lighting systems, architectural LED tape light, cove lighting, and linear lighting.

The driver is intended for use with 0-10V dimming controls. Confirm dimmer, controller, load, wire gauge, and installation conditions against the manufacturer specification sheet before installation.

The included junction box helps provide a clean driver mounting solution for installations requiring an enclosure and service access.

Technical Performance Specifications

Brand: Diode LED
Manufacturer Part Number (MPN): DI-DM-MW24V90W-0-10V-LPL
Series: Commercial Grade 0-10V Dimmable Constant Voltage
Product Type: Commercial Grade 0-10V Dimmable Constant Voltage Driver
Input Voltage: 120/240/277VAC, 50/60Hz
Output Voltage: 24VDC Constant Voltage
Maximum Load / Wattage: 90W
Output Configuration: Constant Voltage Output
Control / Dimming Compatibility: 0-10V dimming controls
Minimum Load: No minimum load
Environment: Wet Location / IP67
Ingress Protection: IP67
Dimensions: 5.9 in. L × 2.1 in. W × 1.4 in. H
Certifications / Compliance: UL Listed, Class 2, IP67 approved; see specification sheet for complete certification list
Key Features: Commercial grade wet-location design

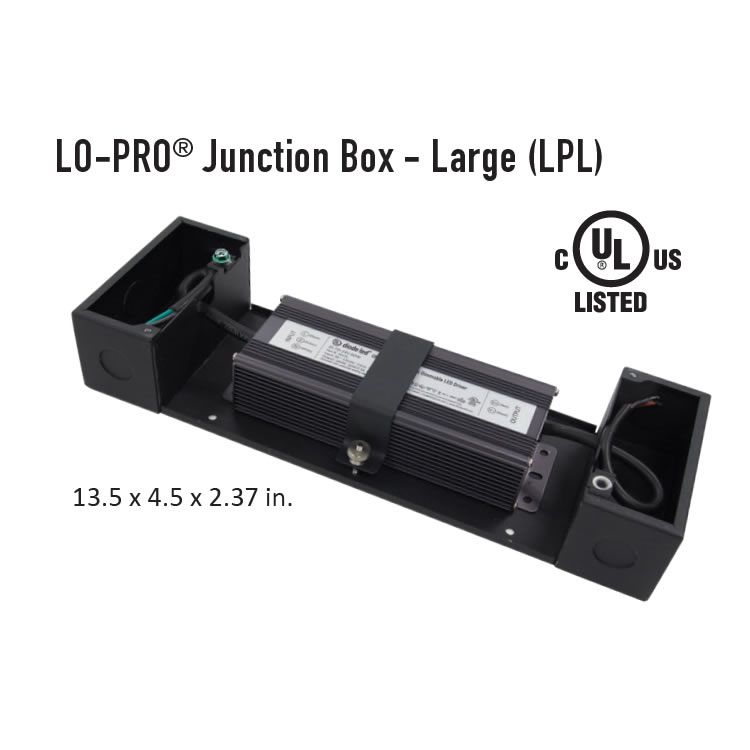

Junction Box / Enclosure: LO-PRO® Large junction box and driver combo
Warranty: 5 Year Limited Warranty
Recommended Applications: commercial dimming projects, retrofit lighting systems, architectural LED tape light, cove lighting, and linear lighting
Documentation: See manufacturer specification sheet.
