DIODE LED DI-JBOX-LPS3R Small NEMA3R Wet Location Junction Box

Name: Diode LED DI-JBOX-LPS3R Small NEMA3R Wet Location Junction Box
Brand: Diode LED
SKU: DI-JBOX-LPS3R
Price: 125.55 USD
Availability: InStock

$125.55

Shipping calculated at checkout.

Product Information

SKU

DI-JBOX-LPS3R

Barcode 848333029516

PRODUCT SPEC SHEET DOWNLOAD

View Spec Sheet

Description

Identification & Application

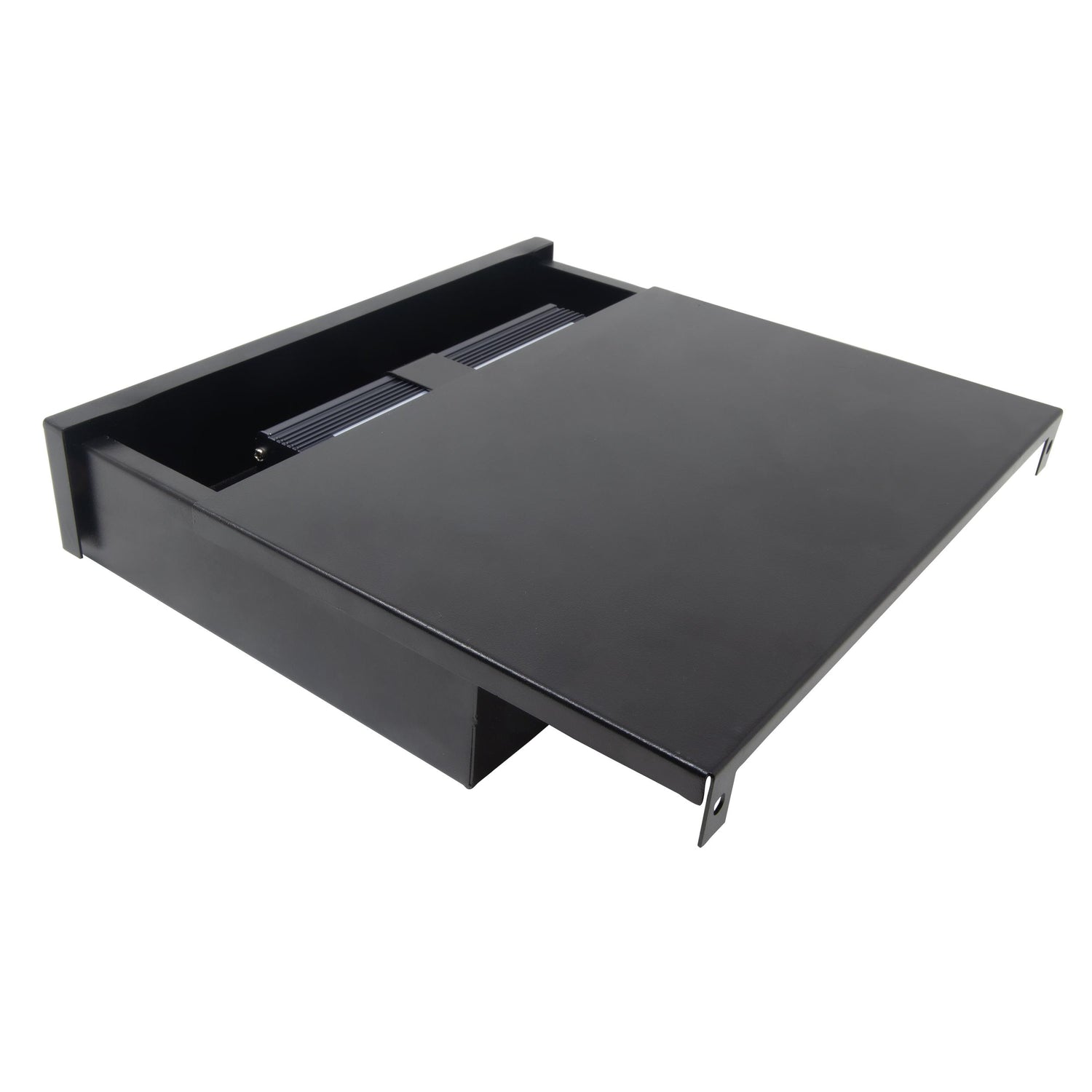

Diode LED DI-JBOX-LPS3R Small NEMA3R Wet Location Junction Box

The Diode LED DI-JBOX-LPS3R Small LO-PRO® NEMA 3R Junction Box is a UL Listed weather-resistant enclosure designed to house compatible Class 2 LED drivers and electrical components in outdoor and wet location installations. Engineered for commercial and residential applications, it provides a durable solution for protecting LED drivers from environmental exposure while maintaining a clean, code-compliant installation.

Compatible with a wide variety of Diode LED driver families including OMNIDRIVE®, OMNIDRIVE® Basics, Constant Voltage Drivers, VLM Series Drivers, Commercial Grade Drivers, Commercial Grade 0-10V Drivers, and 24V DMX Driver Decoders, this enclosure offers exceptional installation flexibility for both new construction and retrofit projects.

The NEMA 3R housing is suitable for cabinet mounting, surface mounting, and air handling spaces while providing protection for compatible 12VDC and 24VDC LED power systems operating from 120-277VAC input power.

Technical Performance Specifications

Brand: Diode LED

Manufacturer Part Number (MPN): DI-JBOX-LPS3R

Series: LO-PRO® Small NEMA3R Junction Box

Product Type: Wet Location LED Driver Junction Box

Input Voltage: 120-277VAC

Maximum Compatible Load: 12VDC: 60W | 24VDC: 100W

Class Rating: Class 2 Certified

Housing: NEMA 3R Weather-Resistant Enclosure

Dimensions: 10.79 in. L × 6.30 in. W × 2.17 in. D

Environment: Outdoor / Wet Location

Ambient Temperature: -22°F to 104°F (-30°C to 40°C)

Operating Temperature: -4°F to 194°F (-20°C to 90°C)

Working Humidity: 5%–95% RH, Non-Condensing

Compatible Driver Families: OMNIDRIVE®, OMNIDRIVE® Basics, Constant Voltage Drivers, VLM Series Constant Voltage Drivers, Commercial Grade Drivers, Commercial Grade 0-10V Drivers, 24V DMX Driver Decoder

Suitable Mounting Applications: Cabinet Mount, Surface Mount, Air Handling Spaces per NEC Section 300.22(C)

Certifications: UL 508A Industrial Control Panel (UL# E486215), UL 1598 Luminaire Fitting (UL# E485321), UL 2108 Class 2 Power Supply (UL# E469769)

Warranty: 5 Year Limited Warranty

Documentation: See manufacturer specification sheet.
