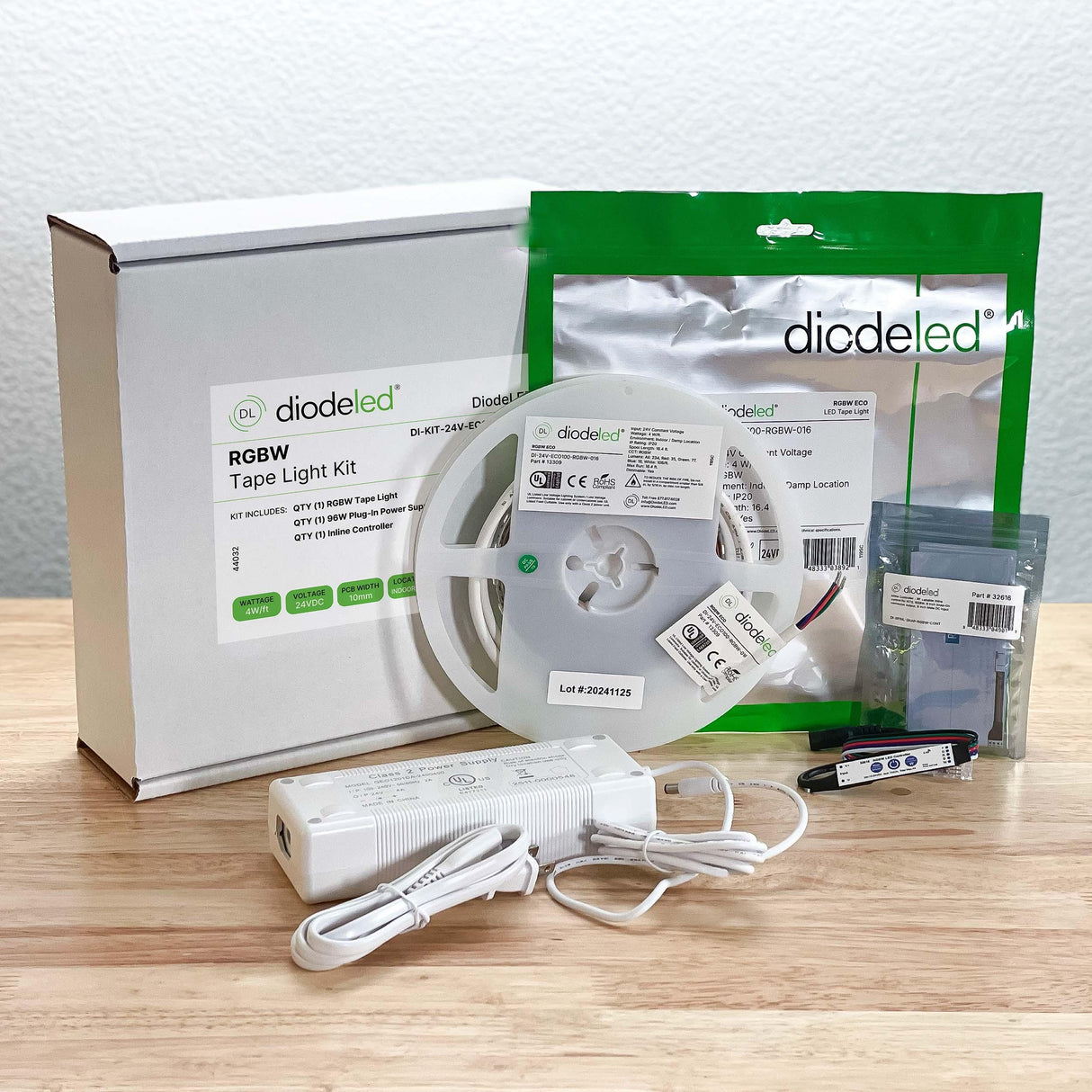

DIODE LED DI-KIT-24V-ECO-RGBW-PG96-INL 16.4ft RGBW Eco Tape Light Kit with 96W Plug-In Adapter 24V

$214.50
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Product Information

SKU
DI-KIT-24V-ECO-RGBW-PG96-INL
Barcode 848333045509

PRODUCT SPEC SHEET DOWNLOAD

Spec Sheet View Spec Sheet

Description

Identification & Application

Diode LED DI-KIT-24V-ECO-RGBW-PG96-INL 16.4ft RGBW ECO Tape Light Kit with 96W Plug-In Power Supply and Inline Controller

The Diode LED DI-KIT-24V-ECO-RGBW-PG96-INL is a complete 24V RGBW ECO LED tape light kit that provides an easy, all-in-one solution for adding dynamic RGB color-changing illumination with dedicated white light output. Designed for simple plug-in installation, this kit includes everything needed to create vibrant accent lighting for residential and commercial indoor applications without requiring separate component selection.

The kit includes a 16.4-foot spool of RGBW ECO LED tape light, a 96-watt plug-in power supply, and an inline RGBW controller for convenient operation. Producing up to 234 lumens per foot with only 4 watts per foot, the RGBW tape combines rich color-changing effects with functional white illumination, making it ideal for architectural accent lighting, under-cabinet lighting, shelving, display cases, cove lighting, entertainment areas, and decorative applications.

Operating on 24V DC, the tape light features high-quality 5050 LED chips, a CRI of 80, cut points every 3.93 inches (100 mm), and an estimated 50,000+ hour service life. Both the tape light and power supply are rated IP20 for indoor and damp locations, while the plug-in design allows for fast installation without hardwiring.

Technical Performance Specifications

Brand Diode LED
SKU / MPN DI-KIT-24V-ECO-RGBW-PG96-INL
Product Type 24V RGBW ECO LED Tape Light Kit
Input Voltage 100-240VAC, 50/60Hz
Output Voltage 24V DC
Tape Length 16.4 ft.
Power Supply 96W Plug-In Adapter
Controller Inline RGBW Controller
Power Consumption 4W/ft.
Light Output 234 lm/ft. Total; Red: 35 lm/ft.; Green: 77 lm/ft.; Blue: 18 lm/ft.; White (3000K): 106 lm/ft.
CRI 80
LED Density 18 LEDs/ft.
LED Chip Type 5050 SMD LEDs
Cut Points Every 3.93 in. (100 mm)
Maximum Run 16.4 ft.
TM-21 (LM-80) Greater Than 50,000 Hours
Dimming PWM
Power Supply Efficiency 93% (Power Factor ≥0.9)
Power Supply Protection Auto Reset Hiccup
Minimum Load No Minimum Load
Input Connection 60 in. AC Cable with NEMA 1-15P Plug
Output Connection 60 in. Male DC Barrel Connector (2.1 × 5.5 mm)
Lead Wire 36 in. White Bare Lead, 20/5 AWG UL 2464 with Strain Relief
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Ambient Temperature -22°F to 158°F (-30°C to 70°C)
Environment Indoor / Damp Location (IP20)
Working Humidity 20% to 90% RH Non-Condensing
Certifications UL Listed 2108 Low Voltage Lighting System
Closet Approval Approved for Clothes Closet Storage Areas per NEC Requirements
Warranty 3-Year Limited Warranty
Applications Under-Cabinet Lighting, Cove Lighting, Shelving, Display Cases, Entertainment Areas, Retail Displays, Hospitality, Residential Interiors, Commercial Accent Lighting, and Decorative RGBW Installations
Documentation See specification sheet.
