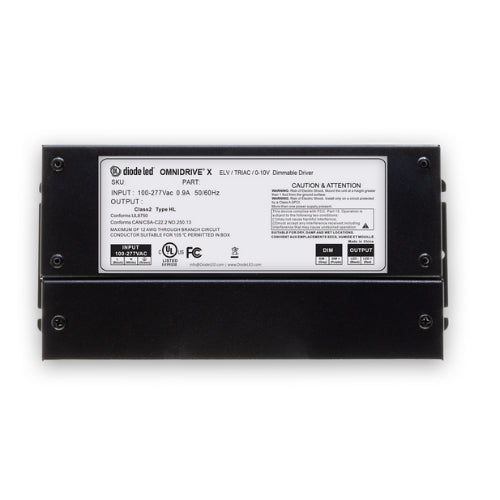

DIODE LED DI-ODX-24V200W-J 200W Omnidrive X Dimmable LED Driver 24V DC

$384.75
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 848333032349

Description

Identification & Application

Diode LED DI-ODX-24V200W-J 200W Omnidrive X Dimmable LED Driver 24V DC

The Diode LED DI-ODX-24V200W-J 200W Omnidrive X Dimmable LED Driver 24V DC is an OMNIDRIVE® X Dimmable Constant Voltage Driver designed to supply regulated low-voltage power for compatible LED lighting systems.

This model provides 200W maximum load, 24VDC output, 100-277VAC, 50/60Hz input, making it suitable for dimmable LED tape light, linear lighting, under-cabinet lighting, cove lighting, display lighting, and architectural accent lighting.

The driver is intended for use with ELV, TRIAC, and 0-10V dimming controls. Confirm dimmer, controller, load, wire gauge, and installation conditions against the manufacturer specification sheet before installation.

Technical Performance Specifications

Brand: Diode LED
Manufacturer Part Number (MPN): DI-ODX-24V200W-J
Series: OMNIDRIVE® X Dimmable Constant Voltage
Product Type: OMNIDRIVE® X Dimmable Constant Voltage Driver
Input Voltage: 100-277VAC, 50/60Hz
Output Voltage: 24VDC Constant Voltage
Maximum Load / Wattage: 200W
Output Configuration: Constant Voltage Output
Control / Dimming Compatibility: ELV, TRIAC, and 0-10V dimming controls
Minimum Load: No minimum load
Environment: Wet Location / NEMA 3R models where supplied with required junction box
Enclosure Rating: NEMA 3R where supplied with junction box
Certifications / Compliance: cULus Listed, UL E499308, ANSI/UL 1310, CAN/CSA C22.2 No. 250.13, Class P, FCC Part 15, Title 24 JA8/JA10 where applicable
Key Features: Automatic fault recovery
Warranty: 5 Year Limited Warranty
Recommended Applications: dimmable LED tape light, linear lighting, under-cabinet lighting, cove lighting, display lighting, and architectural accent lighting
Documentation: See manufacturer specification sheet.
