DIODE LED DI-REIGN2-WH 100W Max Load Reign Wall Mount LED PWM Dimmer Switch 12-24V

Name: Diode LED DI-REIGN2-WH 100W Max Load Reign Wall Mount LED PWM Dimmer Switch 12-24V
Brand: Diode LED
SKU: DI-REIGN2-WH
Price: 85.95 USD
Availability: InStock

$85.95

Shipping calculated at checkout.

Product Information

SKU

DI-REIGN2-WH

Description

Identification & Application

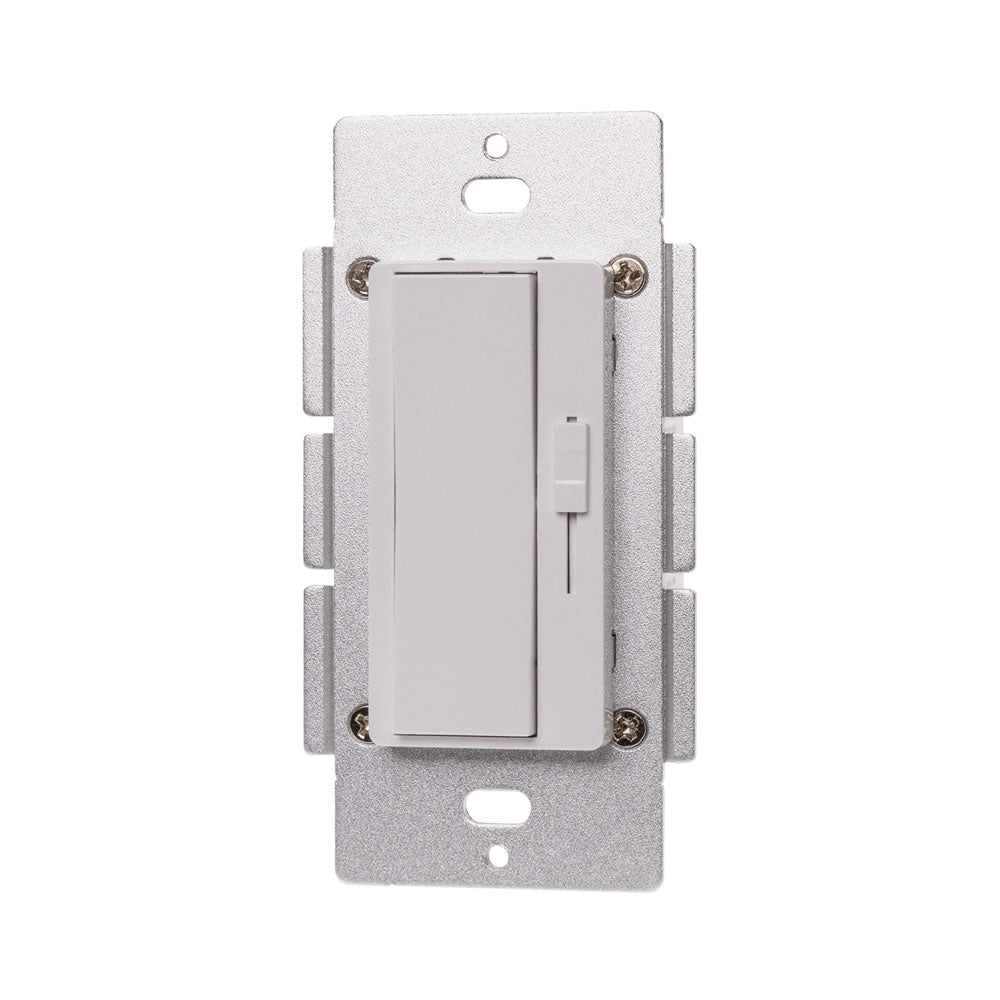

Diode LED DI-REIGN2-WH 100W Max Load REIGN 2 Wall Mount LED PWM Dimmer Switch 12-24V White

The Diode LED REIGN 2 Wall Mount LED Dimmer Switch is a low-voltage PWM dimmer designed to provide smooth, flicker-free dimming control for compatible 12VDC and 24VDC LED lighting systems. It installs in a standard gang box and is intended for inline dimming applications using non-dimmable low-voltage LED drivers.

REIGN 2 is wired between the LED driver and the LED tape light or fixture, allowing the dimmer to control the low-voltage output side of the system. This white wall-mounted dimmer supports 12V and 24V applications with a maximum load of 60W at 12VDC or 100W at 24VDC.

Designed for indoor and damp location installations, the REIGN 2 dimmer provides simple wall-mount integration, Class 2 operation, wire input and output connections, and a familiar wall-control interface for low-voltage LED lighting projects.

Technical Performance Specifications

Brand: Diode LED

Manufacturer Part Number (MPN): DI-REIGN2-WH

Series: REIGN 2

Product Type: Wall Mount LED PWM Dimmer Switch

Color / Finish: White

Input Voltage: 12-24VDC

Output Voltage: 12-24VDC

Maximum Load: 12VDC: 60W; 24VDC: 100W

Class 2: Yes

Dimming: Yes, Smooth Flicker-Free PWM Dimming

Installation Type: Wall Mount Setup in Standard Gang Box

Wiring Configuration: Install Between Driver and LED Fixture; Input Connects to Driver, Output Connects to LED Fixture

Input Connection Type: Wire

Output Connection Type: Wire

Environment: Indoor / Damp Location (IP20)

Ambient Temperature: -4°F to 122°F (-20°C to 50°C)

Operating Temperature: -4°F to 176°F (-20°C to 80°C)

Dimensions: 4.15 in. H × 2.15 in. W × 1.47 in. D; Face Opening Area 2.60 in. H × 1.80 in. W

Important Wiring Notes: Do Not Connect to High Voltage Power; Use Copper Wiring Only; Do Not Install Low and High Voltage Wiring in the Same Wall Box Without a Physical Divider

Certifications: UL Certified, UL Listed E521871 for Use in the US and Canada

Warranty: 5 Year Limited Warranty

Documentation: See manufacturer specification sheet.
