DIODE LED VLM200W-24-LPL 200W VLM Constant Voltage LED Driver 24V DC

$353.63
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 848333030369

Description

Identification & Application

Diode LED VLM200W-24-LPL 200W VLM Constant Voltage LED Driver 24V DC

The Diode LED VLM200W-24-LPL 200W VLM Constant Voltage LED Driver 24V DC combines a compatible Diode LED driver with a specified junction box configuration, giving installers a packaged driver-and-enclosure solution for low-voltage LED lighting projects.

This model provides 200W maximum load, 24VDC output, 120/277VAC, 47-63Hz input, making it suitable for on/off, PWM dimming, color-changing, LED tape light, linear lighting, and architectural accent lighting.

The driver is intended for use with on/off switching, PWM dimmers, DMX systems, RGB(W) controllers, and compatible low-voltage controls. Confirm dimmer, controller, load, wire gauge, and installation conditions against the manufacturer specification sheet before installation.

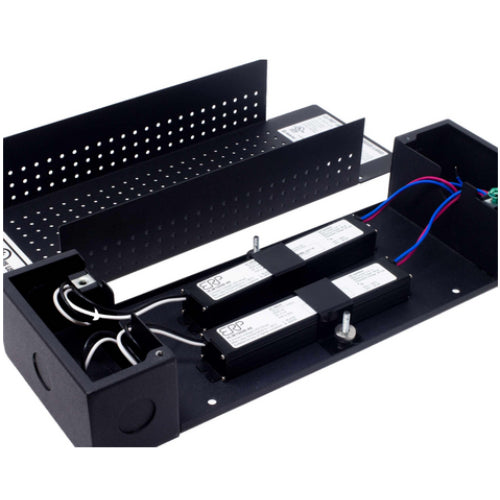

The included junction box helps provide a clean driver mounting solution for installations requiring an enclosure and service access.

Technical Performance Specifications

Brand: Diode LED
Manufacturer Part Number (MPN): VLM200W-24-LPL
Series: VLM Series Constant Voltage
Product Type: VLM Series Constant Voltage Driver
Input Voltage: 120/277VAC, 47-63Hz
Output Voltage: 24VDC Constant Voltage
Maximum Load / Wattage: 200W
Output Configuration: Constant Voltage Output
Control / Dimming Compatibility: on/off switching, PWM dimmers, DMX systems, RGB(W) controllers, and compatible low-voltage controls
Minimum Load: No minimum load
Environment: Indoor / Dry Location
Dimensions: Refer to manufacturer specification sheet
Certifications / Compliance: UL Certified and Component Recognized
Key Features: Short circuit, over-current, over-voltage, and over-temperature protection
Junction Box / Enclosure: LO-PRO® Large junction box and driver combo
Warranty: 5 Year Limited Warranty
Recommended Applications: on/off, PWM dimming, color-changing, LED tape light, linear lighting, and architectural accent lighting
Documentation: See manufacturer specification sheet.
