HALCO LHB-3-WS-40-U 30284 180-200-220W ProLED Select Linear Highbay 4000K Dimmable 25,200-29,920lm 120-277V

Identification & Application

Halco 30284 LHB-3-WS-40-U ProLED Select Linear High Bay, 180W/200W/220W, 4000K, 25,200-29,920 Lumens, 120-277V

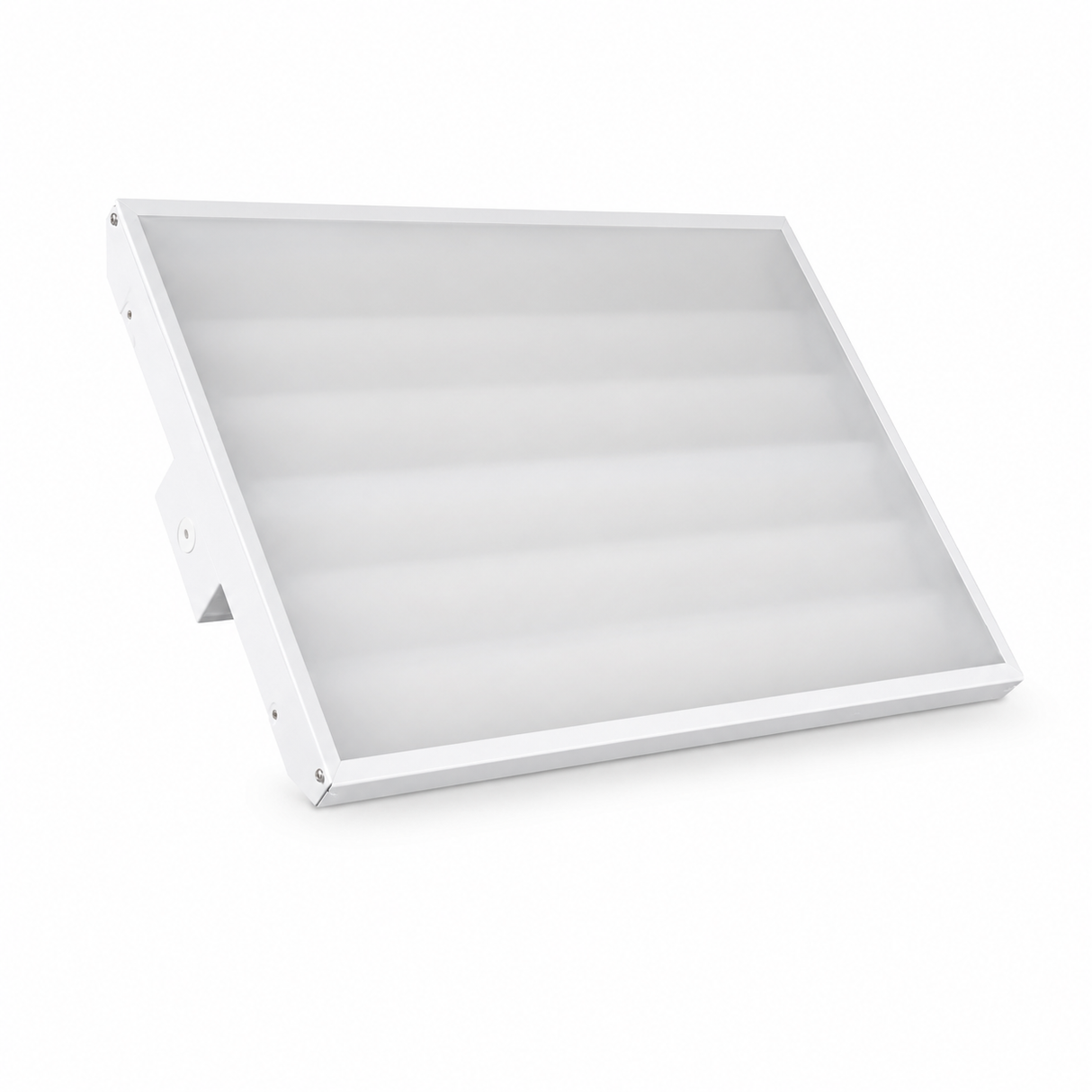

The Halco LHB-3-WS-40-U ProLED Select Linear High Bay is a field-selectable LED luminaire designed to replace traditional fluorescent and HID high bay fixtures in commercial and industrial applications. Selectable wattage provides installation flexibility while reducing inventory requirements.

The fixture features selectable 180W, 200W, and 220W power settings with a fixed 4000K neutral white color temperature. Depending on the selected wattage, light output ranges from approximately 25,200 to 29,920 lumens while delivering high efficacy and uniform illumination.

Constructed with a durable steel housing and frosted polycarbonate lens, the fixture provides excellent glare control and dependable long-term performance. Standard chain and V-hook mounting hardware simplify installation in warehouses, manufacturing facilities, gymnasiums, showrooms, retail stores, and other high-ceiling applications.

A universal 120-277V driver includes standard 0-10V dimming capability. Optional RF bi-level occupancy sensors, PIR motion sensors, emergency battery backup, surface mount kits, pendant mount kits, and wire guards are available separately to meet project requirements.

The ProLED Select Linear High Bay delivers instant-on operation, reduced maintenance, and an L70 rated life exceeding 100,000 hours, making it an energy-efficient replacement for legacy fluorescent and HID lighting systems.

Technical Performance Specifications
