HALCO LHB-3-WS-50-U 30285 180-200-220W ProLED Select Linear Highbay 5000K Dimmable 25,200-29,920lm 120-277V

Identification & Application

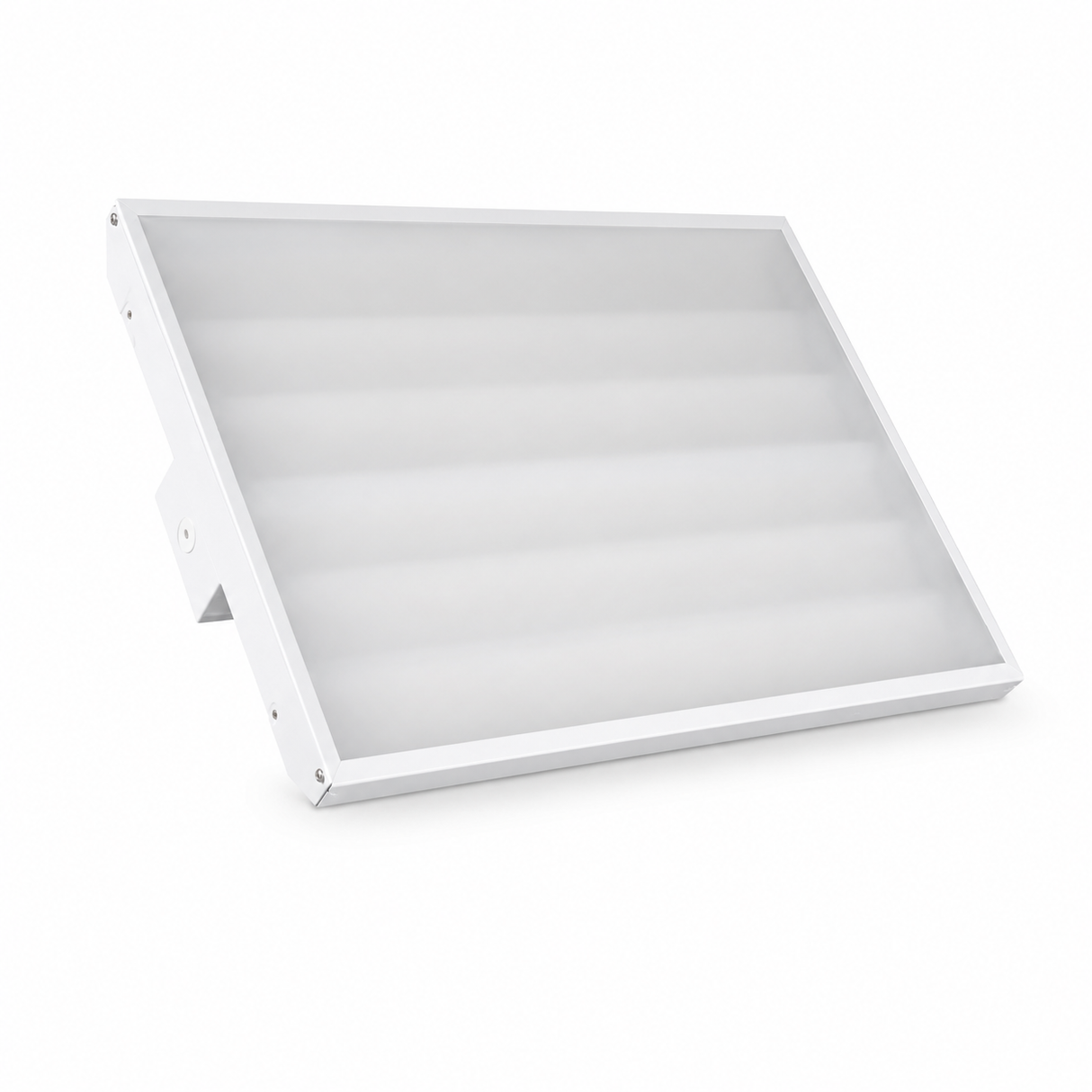

Halco 30285 LHB-3-WS-50-U ProLED Select Linear High Bay, 180W/200W/220W, 5000K, 25,200-29,920 Lumens, 120-277V

The Halco LHB-3-WS-50-U ProLED Select Linear High Bay is a field-selectable LED luminaire engineered to replace traditional fluorescent and HID high bay fixtures in commercial and industrial applications. Selectable wattage provides installation flexibility while simplifying inventory requirements.

The fixture features selectable 180W, 200W, and 220W power settings with a fixed 5000K daylight color temperature. Depending on the selected wattage, light output ranges from approximately 25,200 to 29,920 lumens while delivering excellent efficacy and uniform illumination.

Constructed with a durable steel housing and frosted polycarbonate lens, the fixture provides reduced glare and dependable long-term performance. Standard chain and V-hook mounting hardware simplify installation in warehouses, manufacturing facilities, gymnasiums, showrooms, retail stores, and other high-ceiling applications.

A universal 120-277V driver includes standard 0-10V dimming capability. Optional RF bi-level occupancy sensors, PIR motion sensors, emergency battery backup, surface mount kits, pendant mount kits, and wire guards are available separately to accommodate specific project requirements.

The ProLED Select Linear High Bay delivers instant-on operation, reduced maintenance, and an L70 rated life exceeding 100,000 hours, making it an energy-efficient replacement for legacy fluorescent and HID lighting systems.

Technical Performance Specifications
