HALCO HRHB-1-LS-CS-U-BL 30401 60-80-100W ProLED Select HoverBay Round Highbay 3500K/4000K/5000K Dimmable 9600-12800-16000lm 120-277V

Identification & Application

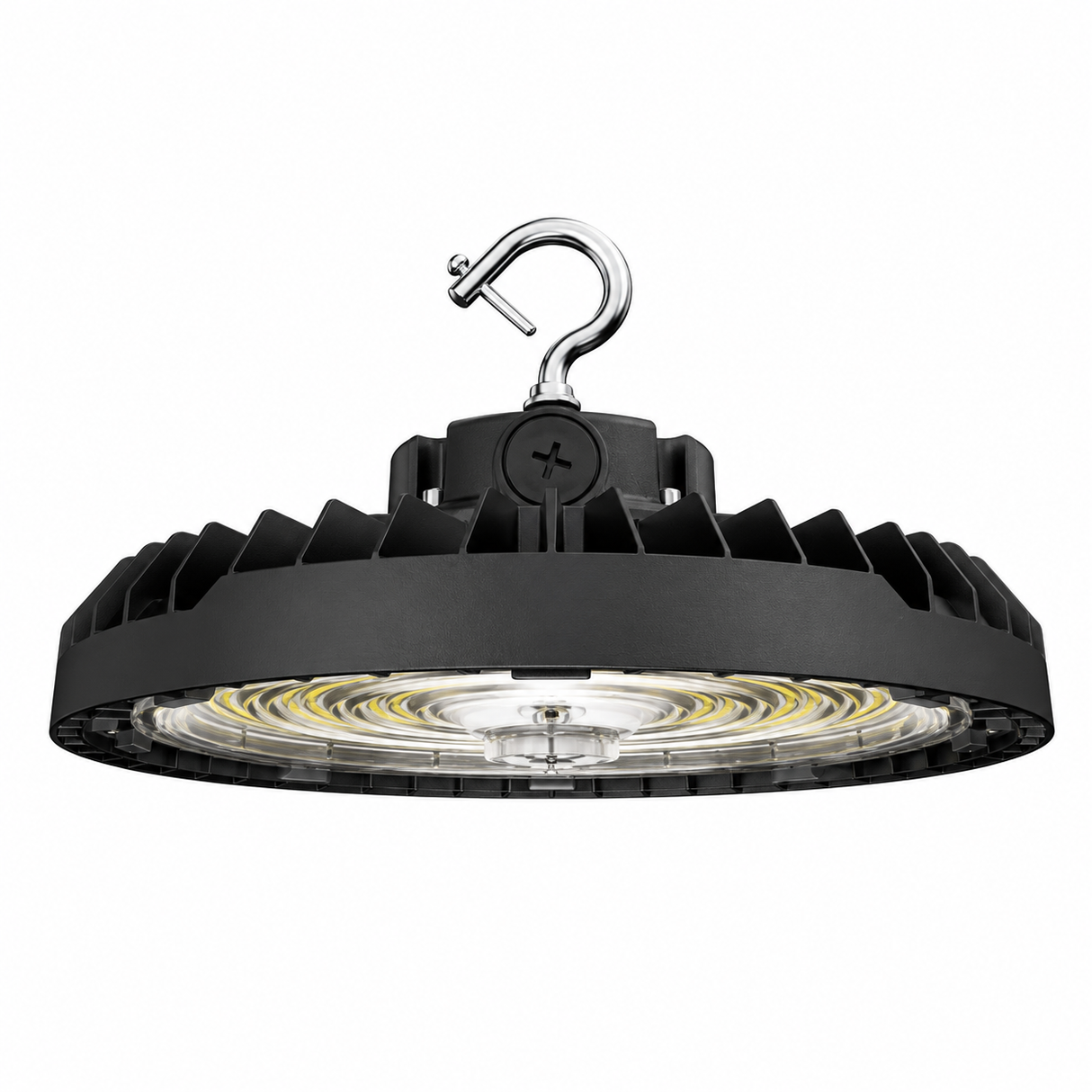

Halco 30401 HRHB-1-LS-CS-U-BL ProLED Select HoverBay Round High Bay, 60W/80W/100W, 3500K/4000K/5000K Selectable, 9,600-12,800-16,000 Lumens, 120-277V

The Halco HRHB-1-LS-CS-U-BL ProLED Select HoverBay Round High Bay is engineered for superior performance, flexibility, and long-term serviceability in demanding commercial and industrial environments. Field-selectable wattage, color temperature, and beam angle allow installers to customize light output for warehouses, manufacturing facilities, distribution centers, gymnasiums, retail stores, and showrooms.

This fixture offers selectable 60W, 80W, or 100W operation with selectable 3500K, 4000K, or 5000K color temperatures. Depending on the selected wattage, the fixture delivers between 9,600 and 16,000 lumens with efficacies up to 164 lumens per watt. Field-selectable beam angles of 60°, 90°, or 110° provide additional application flexibility.

The tool-less serviceable design features a swappable LED board and driver for simplified maintenance and extended fixture life. A die-cast aluminum housing with a durable black powder-coated finish and impact-resistant polycarbonate optics provides exceptional thermal management and long-lasting durability in harsh environments.

A universal 120-277V driver includes standard 0-10V dimming capability and an integrated 3.5mm audio-jack receptacle for plug-and-play PIR sensors, microwave sensors, and Bluetooth lighting controls.

The fixture includes a standard steel hook, 6-foot power cord, and safety cable for quick installation. Optional U-brackets, reflectors, wire guards, pendant adapters, emergency battery backup, and Bluetooth controls are available for expanded installation and control options.

Technical Performance Specifications
