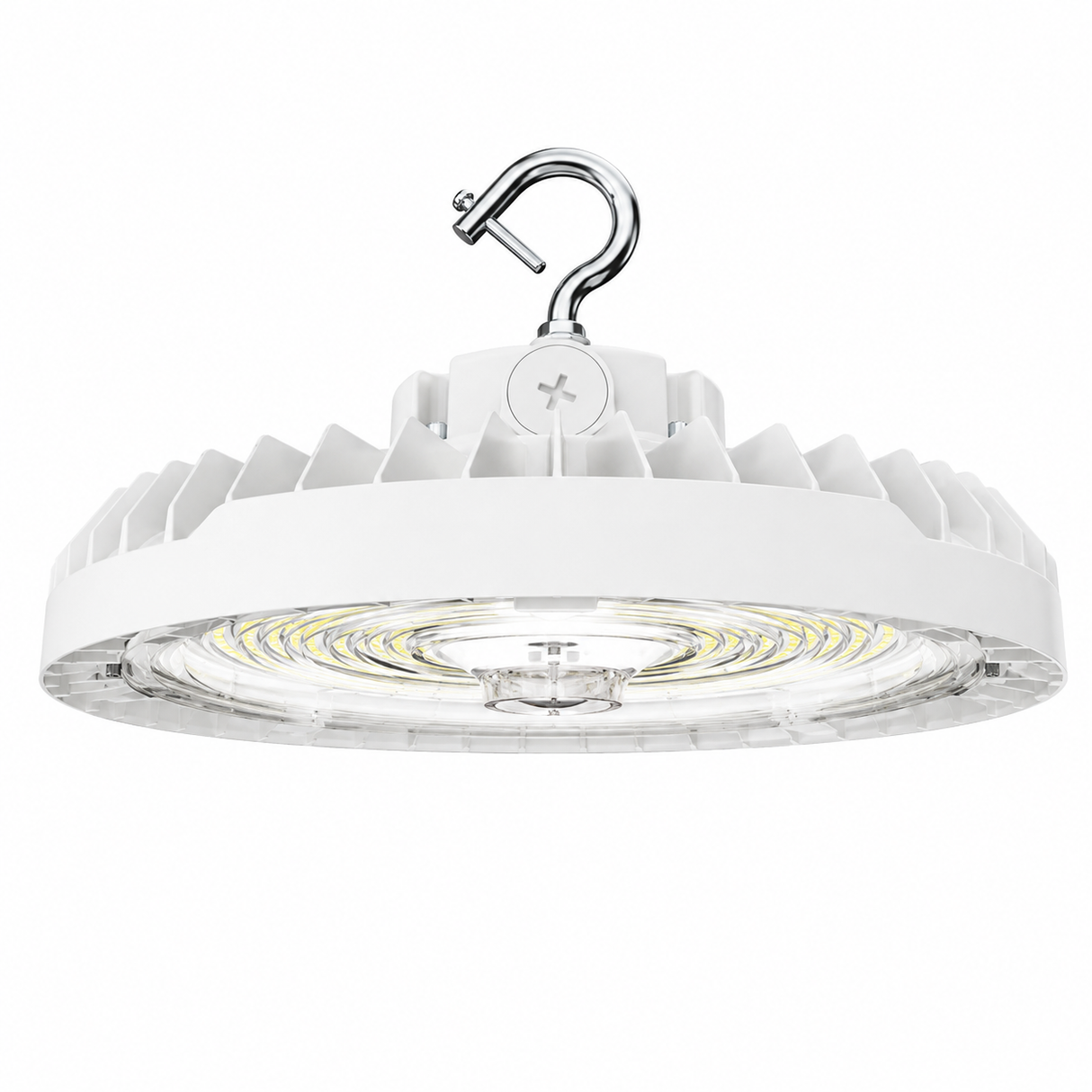

HALCO HRHB-4-LS-CS-U-WH 30406 180-200-240W ProLED Select HoverBay Round Highbay 3500K/4000K/5000K Dimmable 28800-32000-38400lm 120-277V

Identification & Application

Halco 30406 HRHB-4-LS-CS-U-WH ProLED Select HoverBay Round High Bay, 180W/200W/240W, 3500K/4000K/5000K Selectable, 28,800-32,000-38,400 Lumens, 120-277V

The Halco HRHB-4-LS-CS-U-WH ProLED Select HoverBay Round High Bay is engineered to deliver exceptional performance, installation flexibility, and long-term serviceability for demanding commercial and industrial environments. Field-selectable wattage, color temperature, and beam angle allow installers to optimize lighting performance for warehouses, distribution centers, manufacturing facilities, gymnasiums, retail stores, and commercial showrooms.

This fixture features selectable 180W, 200W, or 240W operation with selectable 3500K, 4000K, or 5000K color temperatures. Depending on the selected wattage, the fixture delivers between 28,800 and 38,400 lumens while producing efficacies up to 164 lumens per watt. Field-selectable 60°, 90°, and 110° beam angles provide outstanding flexibility for varying mounting heights and lighting layouts.

The innovative tool-less design features a swappable LED board and driver for simplified maintenance and extended service life. A die-cast aluminum housing with a durable white powder-coated finish and impact-resistant polycarbonate optics provides superior thermal management and long-lasting durability.

A universal 120-277V driver includes standard 0-10V dimming capability and an integrated 3.5mm audio-jack receptacle supporting plug-and-play PIR sensors, microwave sensors, and Bluetooth lighting controls.

The fixture includes a standard steel hook, 6-foot shielded power cord, and safety cable for fast installation. Optional U-brackets, reflectors, wire guards, pendant adapters, emergency battery backup, and Bluetooth controls provide additional installation flexibility.

Technical Performance Specifications
