HALCO ECLHB-110-50-U 36104 110W ProLED Essential Compact Linear Highbay 5000K Dimmable 14960lm 120-277V

Identification & Application

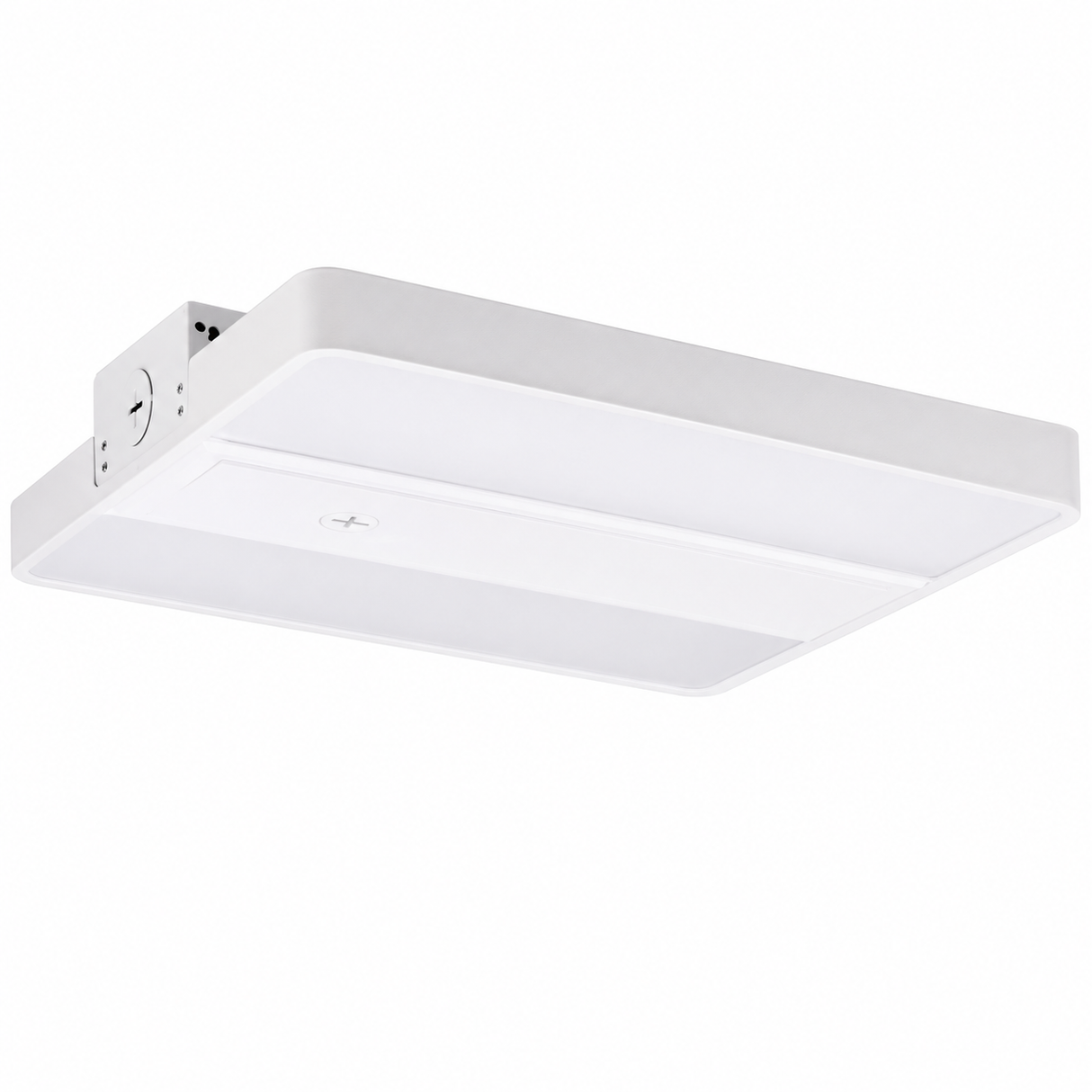

Halco 36104 ECLHB-110-50-U ProLED Essential Compact Linear High Bay, 110W, 5000K, 14,960 Lumens, 120-277V

The Halco ProLED Essential Compact Linear High Bay delivers an economical and reliable lighting solution for light-duty industrial, warehouse, retail, and commercial applications. Its compact design reduces shipping costs and simplifies installation while providing high-performance LED illumination for both retrofit and new construction projects.

Operating at 110 watts with a fixed 5000K daylight color temperature, the fixture delivers 14,960 lumens with efficacy up to 142 lumens per watt. A frosted acrylic lens minimizes glare while producing uniform illumination for workspaces and open areas.

The durable die-cast aluminum housing features multiple ½-inch knockouts on the top, sides, and bottom for installation flexibility. Standard chain and V-hook mounting hardware are included, while optional surface mount kits, pendant mount kits, wire guards, motion sensors, and emergency battery backup are available separately.

A universal 120-277V driver provides standard 0-10V dimming with built-in 6kV surge protection. The fixture is ideal for warehouses, light industrial facilities, storage areas, workshops, and commercial buildings requiring dependable, energy-efficient high bay lighting.

Technical Performance Specifications
