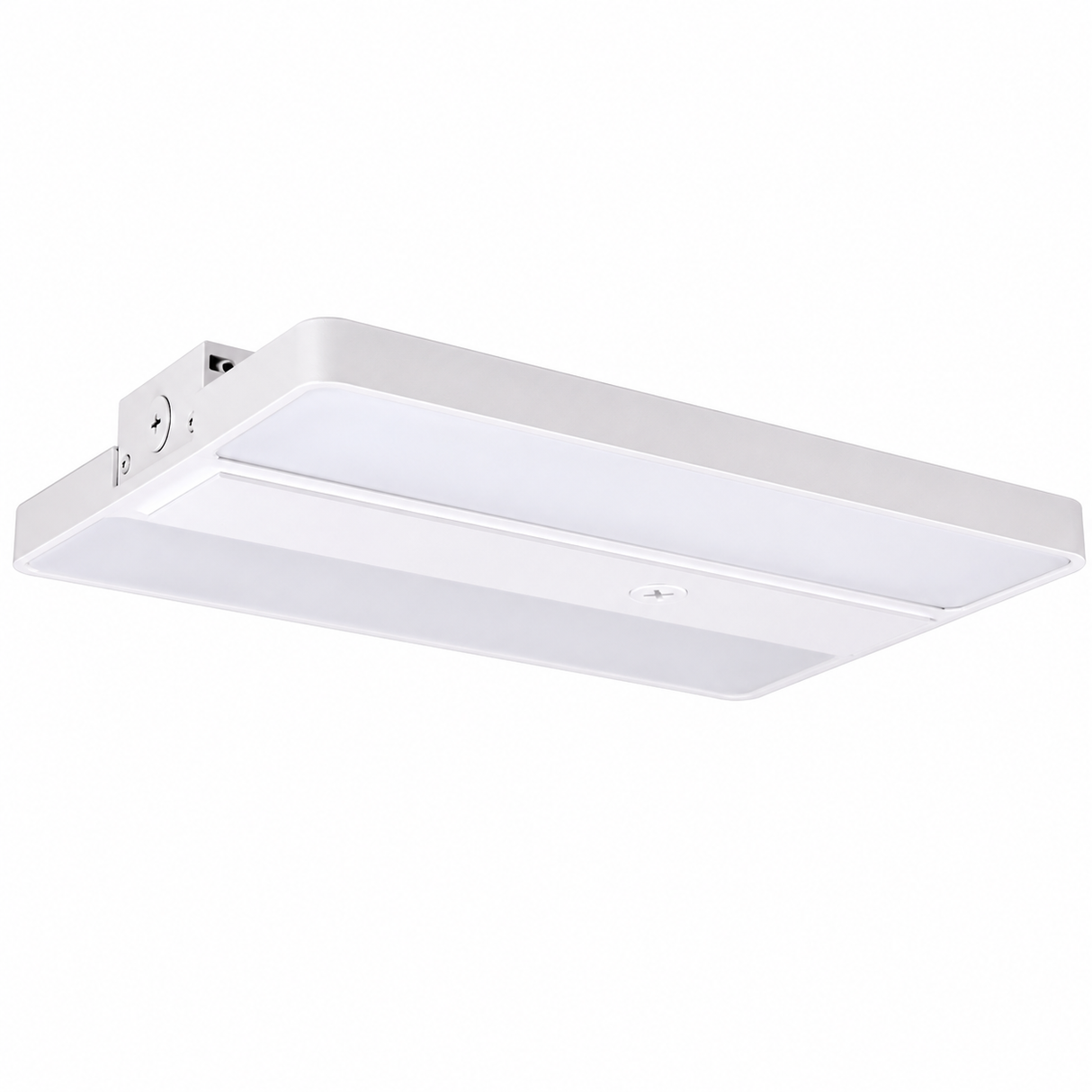

HALCO ECLHB-220-50-U 36105 220W ProLED Essential Compact Linear Highbay 5000K Dimmable 29920lm 120-277V

Identification & Application

Halco 36105 ECLHB-220-50-U ProLED Essential Compact Linear High Bay, 220W, 5000K, 29,920 Lumens, 120-277V

The Halco ProLED Essential Compact Linear High Bay delivers an economical and reliable lighting solution for light-duty industrial, warehouse, retail, and commercial applications. Its compact design reduces shipping costs and simplifies installation while providing high-performance LED illumination for both retrofit and new construction projects.

Operating at 220 watts with a fixed 5000K daylight color temperature, the fixture delivers 29,920 lumens with efficacy up to 145 lumens per watt. A frosted acrylic lens minimizes glare while producing uniform illumination across large workspaces and open warehouse areas.

The durable die-cast aluminum housing features multiple ½-inch knockouts on the top, sides, and bottom for installation flexibility. Standard chain and V-hook mounting hardware are included, while optional surface mount kits, pendant mount kits, wire guards, motion sensors, and emergency battery backup are available separately.

A universal 120-277V driver provides standard 0-10V dimming with built-in 6kV surge protection. The fixture is ideal for warehouses, distribution centers, manufacturing facilities, workshops, and commercial buildings requiring dependable, energy-efficient high bay lighting.

Technical Performance Specifications
