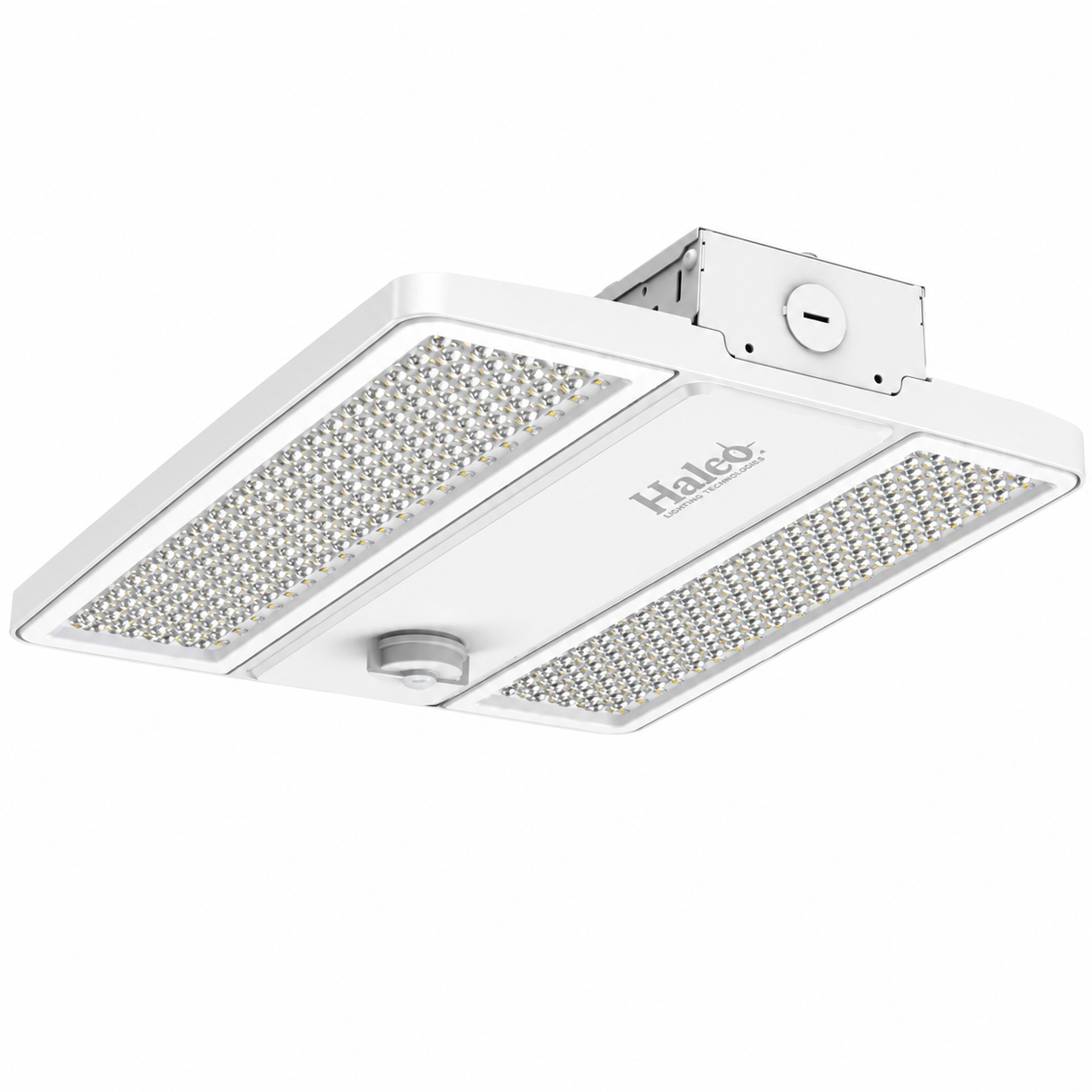

HALCO CLHB-1-LS-CS-U 36160 90-110-130W ProLED Select Compact Linear Highbay 3500K/4000K/5000K Dimmable 14600-17100-19500lm Controls Ready 120-277V

Identification & Application

Halco 36160 CLHB-1-LS-CS-U ProLED Select Compact Linear High Bay, 90W/110W/130W, 3500K/4000K/5000K Selectable, 14,600-17,100-19,500 Lumens, Controls Ready, 120-277V

The Halco ProLED Select Next Generation Compact Linear High Bay combines advanced lighting performance with exceptional field configurability in a compact, installer-friendly design. Adjustable lumen output, selectable color temperature, and field-selectable beam angles allow a single fixture to meet the lighting requirements of warehouses, gymnasiums, retail stores, manufacturing facilities, and other large indoor commercial environments.

The fixture features selectable 90W, 110W, and 130W power settings with selectable 3500K, 4000K, and 5000K color temperatures. Depending on the selected configuration, it delivers between 14,600 and 19,500 lumens while achieving efficacies up to 166 lumens per watt. Three selectable beam distributions (45°×100°, 65°×90°, and 90°×90°) provide outstanding flexibility for varying mounting heights and lighting layouts.

Constructed with a rugged die-cast aluminum housing and durable polycarbonate lens, the fixture is built for long service life in demanding commercial and industrial environments. An integrated Zhaga Z10 receptacle provides plug-and-play compatibility with PIR occupancy sensors and Bluetooth lighting control systems for enhanced energy management.

The universal 120-277V driver includes standard 0-10V dimming and delivers over 100,000 hours of L70 lumen maintenance. Standard chain and V-hook mounting hardware are included, while optional surface mount kits, pendant mount kits, wire guards, emergency battery backup, and high-voltage drivers are available separately.

Technical Performance Specifications
