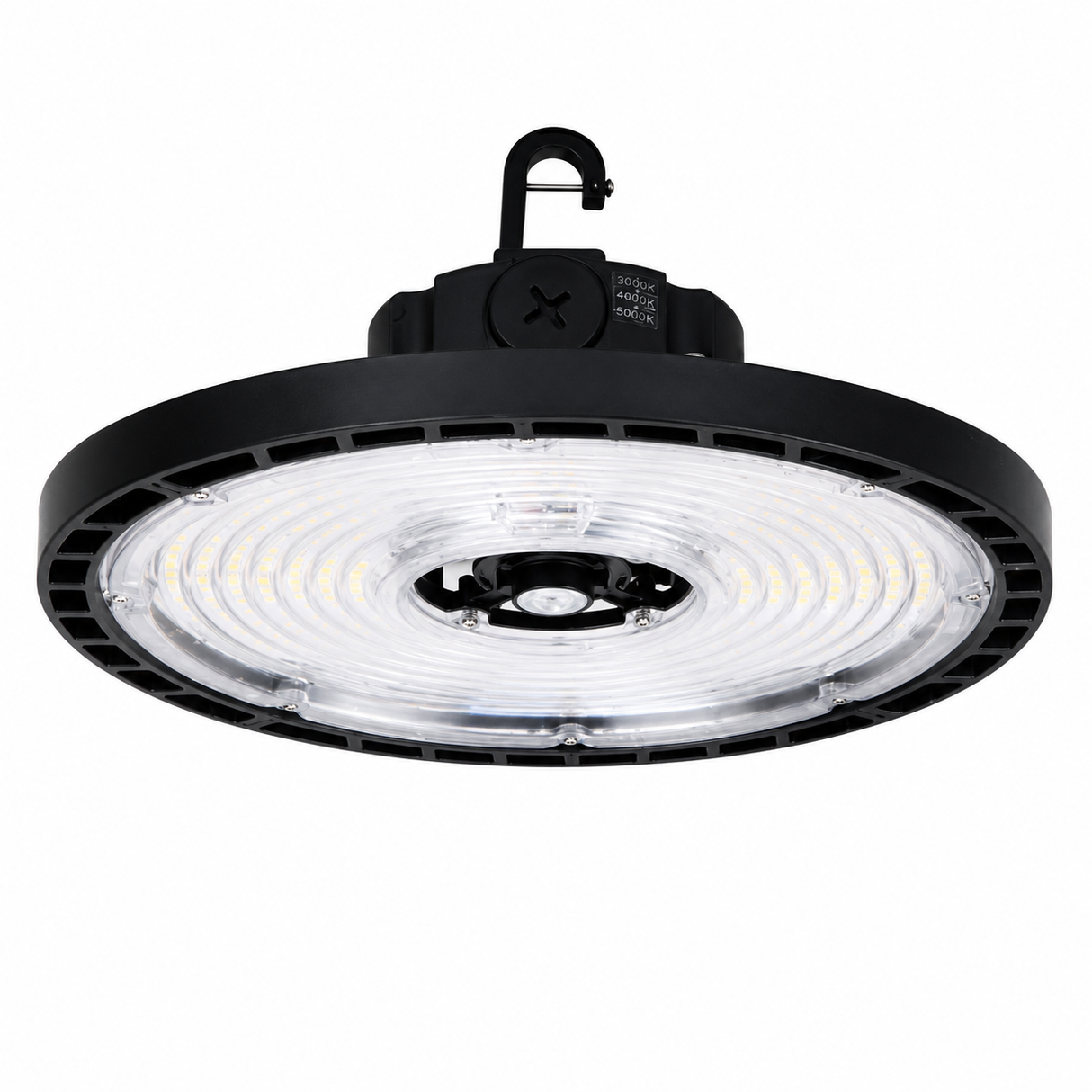

HALCO ERHB-3-LS-CS-U 37312 120-150-200W Essential Round Highbay 4000K/5000K Dimmable 19600-23100-29500lm 120-277V

Identification & Application

Halco 37312 ERHB-3-LS-CS-U Essential Round High Bay, 120W/150W/200W, 4000K/5000K Selectable, 19,600-23,100-29,500 Lumens, 120-277V

The Halco ERHB-3-LS-CS-U Essential Round High Bay delivers an ideal balance of performance and value for commercial and industrial lighting applications. Featuring field-selectable wattage and color temperature, it adapts easily to changing project requirements while minimizing inventory and installation complexity.

The fixture offers selectable 120W, 150W, or 200W operation with selectable 4000K neutral white or 5000K daylight color temperatures. Depending on the selected wattage, the fixture delivers between 19,600 and 29,500 lumens with efficacies up to 158 lumens per watt.

Constructed with a die-cast aluminum housing finished in durable black powder coating and a high-impact polycarbonate lens, the fixture is engineered for long service life in demanding environments. An IP65 wet location rating makes it suitable for indoor and covered outdoor applications.

The fixture includes a standard 6-foot power cord and 1/2-inch NPT steel hook for quick installation. A built-in 3.5mm audio jack supports plug-and-play PIR and microwave motion sensors, while optional accessories include reflectors, wire guards, yoke mounting brackets, emergency battery backup, and pendant mounting hardware.

Ideal applications include warehouses, manufacturing facilities, gymnasiums, big box retail stores, and commercial showrooms requiring efficient, high-output LED illumination.

Technical Performance Specifications
