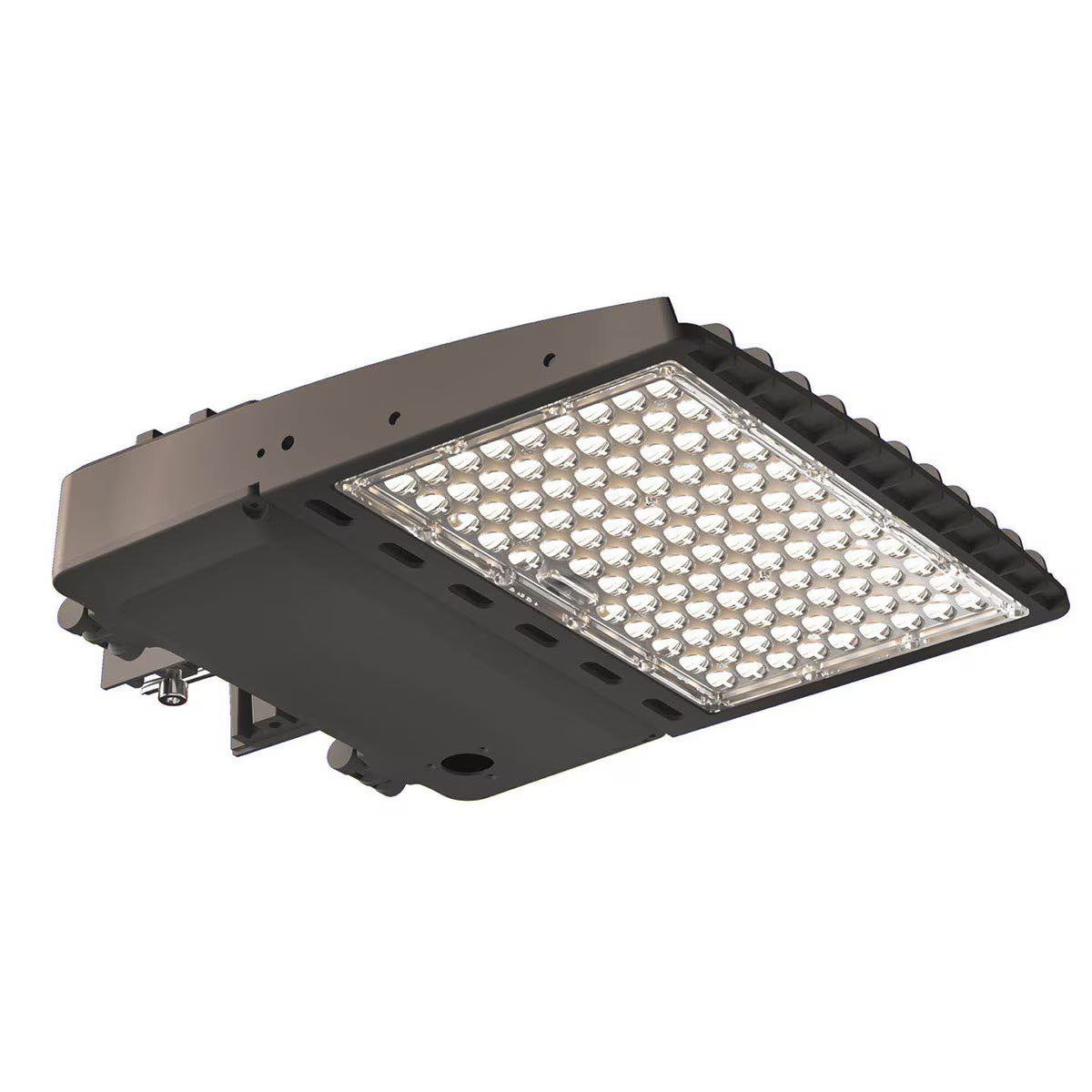

LEDONE AL0153 LOC-RGAL-MW(75/100/120/150)50KD-T3LV 75/100/120/150W LED Area Light 5000K Sensor Ready 120-277V

Identification & Application

LEDone AL0153 LOC-RGAL-MW(75/100/120/150)50KD-T3LV 75/100/120/150W LED Area Light 5000K Sensor Ready 120-277V

The LEDone LOC-RGAL-MW(75/100/120/150)50KD-T3LV is a commercial-grade LED Area Light with a built-in sensor-ready base, engineered to deliver exceptional outdoor illumination, energy efficiency, and long-term reliability. Featuring field-selectable 75W, 100W, 120W, and 150W power settings with a fixed 5000K daylight color temperature, this versatile fixture allows installers to optimize light output from a single luminaire. Producing up to 22,386 lumens with efficacy up to 148.45 lumens per watt, a CRI of 70, and a Type III light distribution, it provides uniform illumination for parking lots, roadways, warehouses, factories, logistics centers, supermarkets, and exhibition halls.

Constructed with a corrosion-resistant bronze die-cast aluminum housing treated with anodic oxidation, this LED area light is designed for demanding outdoor environments. Premium Lumileds 3030 LED chips, a Type III optical lens, full cutoff design, IK08 impact protection, and IP65 weather resistance deliver dependable performance while minimizing glare and light trespass. Standard 0-10V dimming and the integrated sensor-ready base support optional microwave sensors, PIR sensors, photocells, Bluetooth controls, and remote controls for advanced energy management. Operating from a universal 120-277V input, the fixture also includes 10kV surge protection for reliable operation.

Built for years of maintenance-free service, the LOC-RGAL-MW(75/100/120/150)50KD-T3LV offers multiple mounting options including adjustable arm, slip fitter, trunnion, and U-bracket configurations to accommodate a variety of pole and structure installations. With a 50,000-hour rated life and a 5-year limited warranty, this energy-efficient LED area light is an excellent replacement for traditional HID fixtures while significantly reducing operating and maintenance costs.

Technical Performance Specifications
