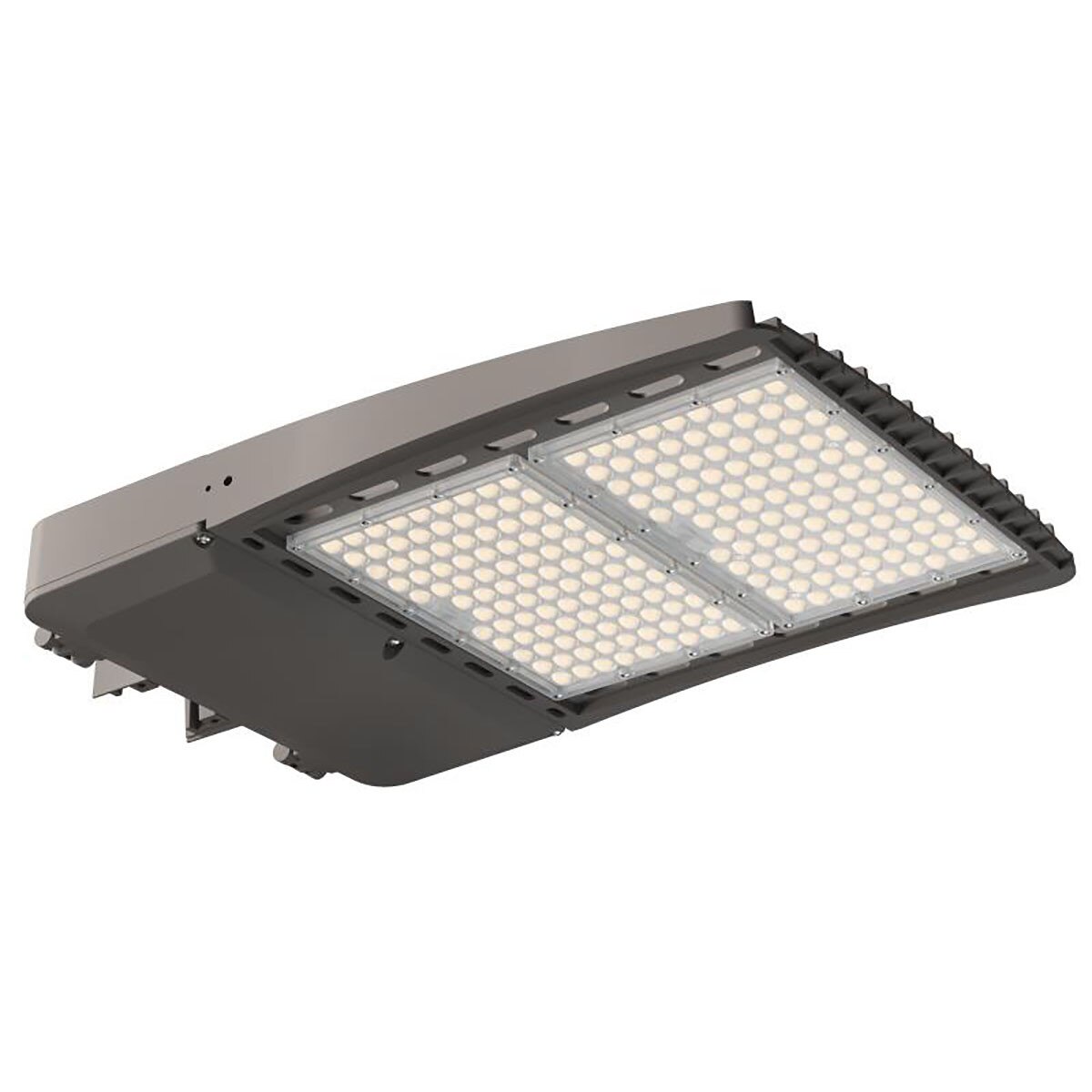

LEDONE AL0154 LOC-RGAL-MW(160/200/240/320)50KD-T3LV 160/200/240/320W LED Area Light 5000K Sensor Ready 120-277V

Identification & Application

LEDone AL0154 LOC-RGAL-MW(160/200/240/320)50KD-T3LV 160/200/240/320W LED Area Light 5000K Sensor Ready 120-277V

The LEDone LOC-RGAL-MW(160/200/240/320)50KD-T3LV is a commercial-grade LED Area Light with a built-in sensor-ready base, engineered to provide high-output outdoor illumination, superior energy efficiency, and long-term reliability. Featuring field-selectable 160W, 200W, 240W, and 320W power settings with a fixed 5000K daylight color temperature, this versatile fixture allows installers to optimize light output from a single luminaire. Producing up to 46,000 lumens with efficacy up to 144 lumens per watt, a CRI of 70, and a Type III light distribution, it delivers bright, uniform illumination for parking lots, roadways, warehouses, factories, logistics centers, stadiums, supermarkets, and exhibition halls.

Constructed with a corrosion-resistant bronze die-cast aluminum housing treated with anodic oxidation, this LED area light is designed to withstand demanding outdoor environments. Premium Lumileds 3030 LED chips, a Type III optical lens, full cutoff design, IK08 impact protection, and IP65 weather resistance provide exceptional optical performance while minimizing glare and light trespass. Standard 0-10V dimming and the integrated sensor-ready base support optional microwave sensors, PIR sensors, Bluetooth controls, photocells, and remote controls for advanced lighting automation. Operating from a universal 120-277V input, the fixture also incorporates 10kV surge protection for dependable commercial performance.

Built for years of maintenance-free service, the LOC-RGAL-MW(160/200/240/320)50KD-T3LV offers flexible installation with adjustable arm, slip fitter, trunnion, and U-bracket mounting options. With a 50,000-hour rated life and a 5-year limited warranty, this energy-efficient LED area light is an excellent replacement for traditional 600W to 1,000W HID fixtures while significantly reducing maintenance and operating costs.

Technical Performance Specifications
