LEDONE AL0191 LOC-ALAL- MW(180/200/240/320)MCCT(30/40/50)-HV 180/200/240/320W LED Area Light 3000K/4000K/5000K Sensor Ready 277-480V

Identification & Application

LEDone AL0191 LOC-ALAL-MW(180/200/240/320)MCCT(30/40/50)-HV 180/200/240/320W LED Area Light 3000K/4000K/5000K Sensor Ready 277-480V

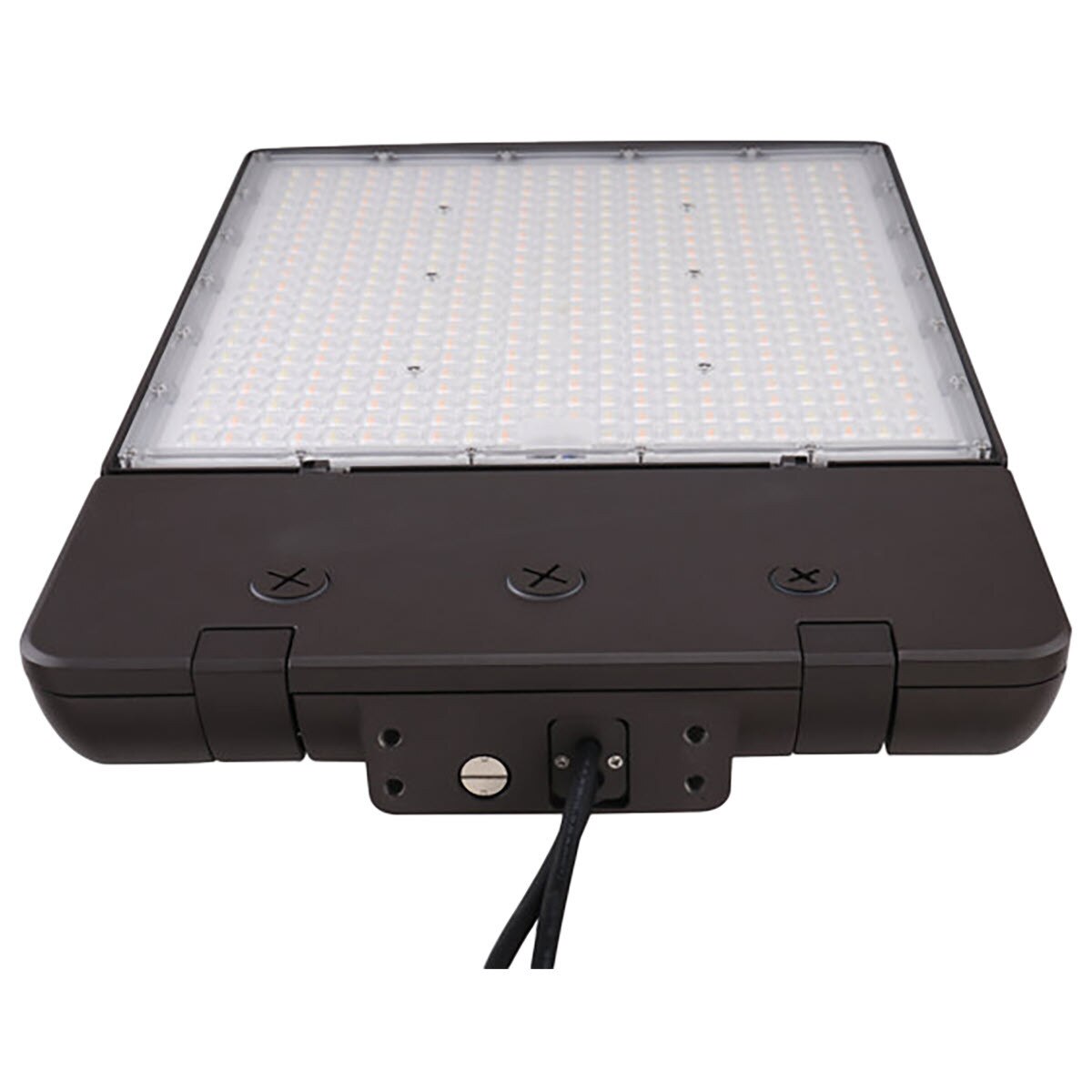

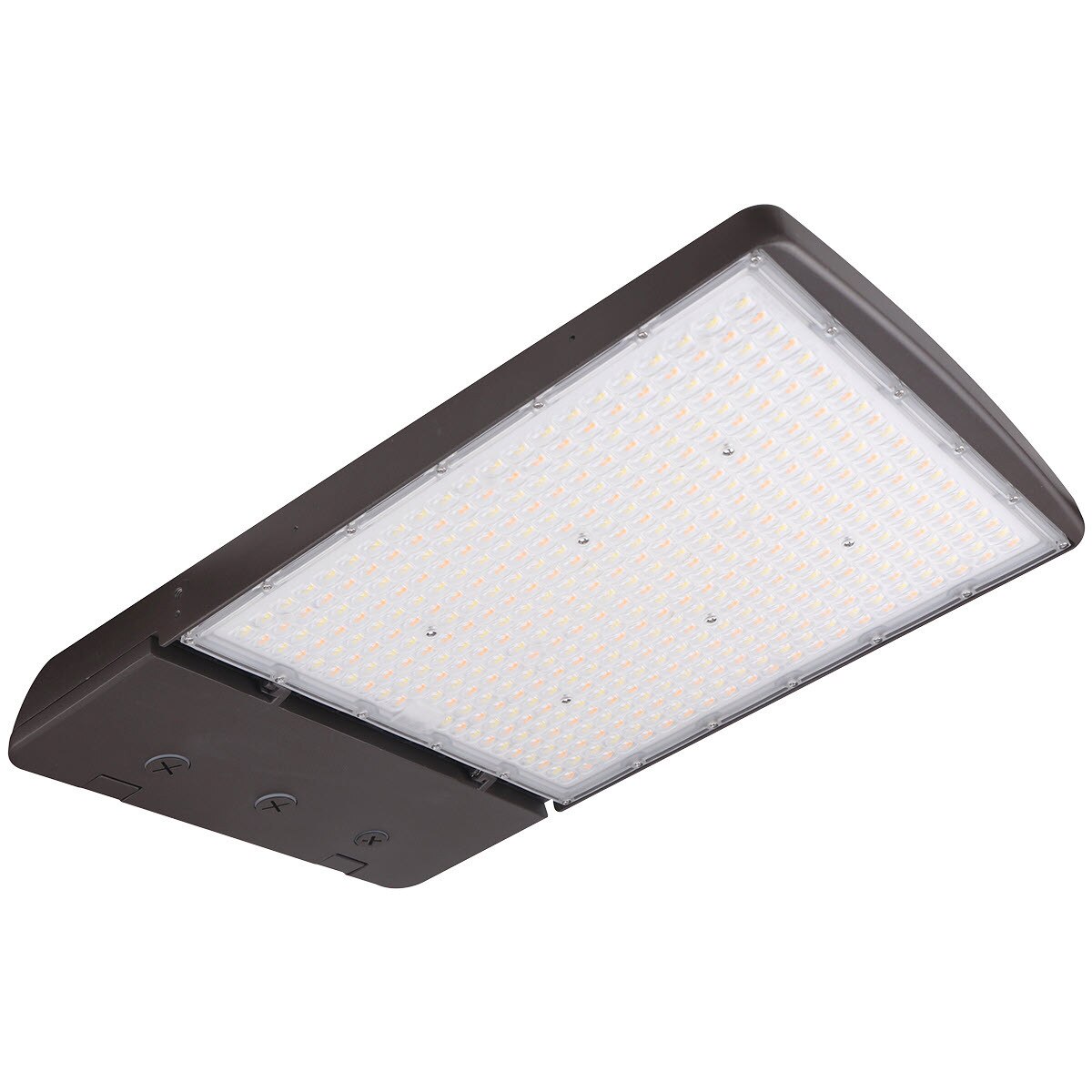

The LEDone LOC-ALAL-MW(180/200/240/320)MCCT(30/40/50)-HV is a commercial-grade LED Area Light featuring a built-in sensor base and adjustable lens for maximum installation flexibility. Designed with selectable 180W, 200W, 240W, and 320W power settings and selectable 3000K, 4000K, and 5000K color temperatures, this versatile luminaire allows installers to customize both light output and color appearance from a single fixture. Producing up to 47,680 lumens with efficacy up to 149 lumens per watt, it is ideal for parking lots, warehouses, stadiums, factories, supermarkets, logistics centers, and exhibition halls.

Constructed with a corrosion-resistant bronze die-cast aluminum housing treated with anodic oxidation, the fixture is engineered for demanding outdoor environments. Premium Lumileds 2835 LED chips, an adjustable Type III lens, full cutoff design, IP65 weather resistance, and integrated 10kV surge protection deliver outstanding optical performance and long-term reliability. Standard 0-10V dimming and the built-in smart sensor base support optional microwave sensors, PIR sensors, Bluetooth sensors, photocells, and remote controls for advanced lighting automation.

Designed for years of maintenance-free operation, the LOC-ALAL-MW(180/200/240/320)MCCT(30/40/50)-HV supports installation using adjustable arm, slip fitter, or trunnion mounting options. With a 50,000-hour rated life and a 5-year limited warranty, this DLC Premium listed LED area light is an excellent replacement for traditional 600W to 1,000W HID fixtures while significantly reducing maintenance and energy costs.

Technical Performance Specifications
