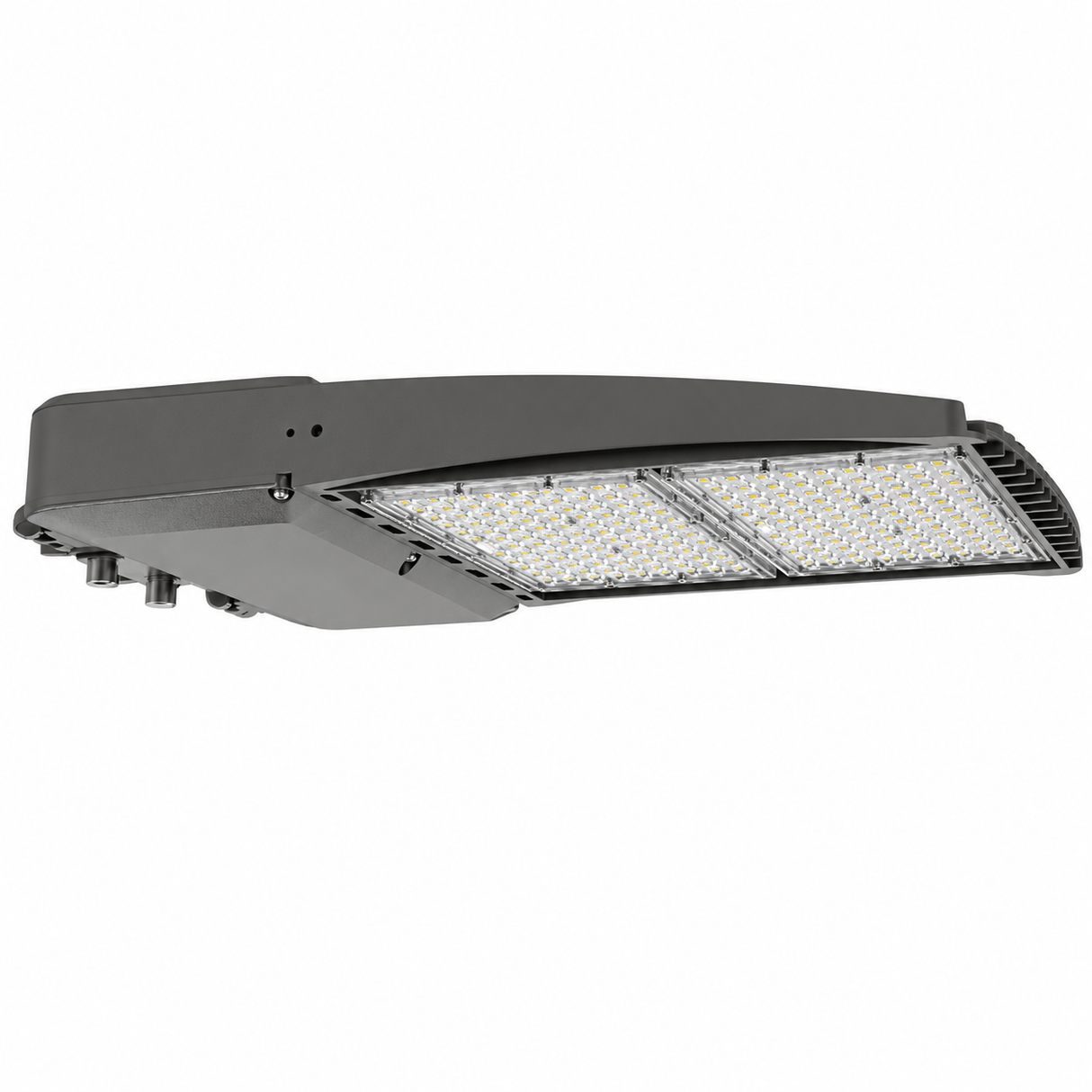

LEDONE AL0196 LOC-RGAL-MW(320/350/400/450)MCCT(30/40/50)-T3HV 320/350/400/450W LED Area Light 3000K/4000K/5000K Sensor Ready 277-480V

Identification & Application

LEDone AL0196 LOC-RGAL-MW(320/350/400/450)MCCT(30/40/50)-T3HV 320/350/400/450W LED Area Light 3000K/4000K/5000K Sensor Ready 277-480V

The LEDone LOC-RGAL-MW(320/350/400/450)MCCT(30/40/50)-T3HV is a commercial-grade LED Area Light with a built-in sensor-ready base, engineered to deliver ultra-high-output outdoor illumination, exceptional energy efficiency, and long-term reliability. Featuring field-selectable 320W, 350W, 400W, and 450W power settings along with selectable 3000K, 4000K, and 5000K color temperatures, this versatile fixture allows installers to customize both light output and color temperature from a single luminaire. Producing up to 69,300 lumens with efficacy up to 154 lumens per watt, a CRI of 70, and a Type III light distribution, it is ideal for parking lots, roadways, warehouses, factories, logistics centers, stadiums, supermarkets, and exhibition halls.

Constructed with a corrosion-resistant bronze die-cast aluminum housing treated with anodic oxidation, this LED area light is built for demanding outdoor environments. Premium Lumileds 3030 LED chips, a Type III optical lens, 120° beam angle, full cutoff design, IK08 impact protection, and IP65 weather resistance deliver exceptional optical performance while minimizing glare and light trespass. Standard 0-10V dimming and the integrated sensor-ready base support optional microwave sensors, PIR sensors, Bluetooth controls, photocells, and remote controls for advanced lighting automation. Operating from a 277-480V input, the fixture also incorporates 10kV surge protection for dependable commercial and industrial performance.

Designed for years of maintenance-free operation, the LOC-RGAL-MW(320/350/400/450)MCCT(30/40/50)-T3HV provides flexible installation with adjustable arm, slip fitter, trunnion, and U-bracket mounting options. With a 50,000-hour rated life and a 5-year limited warranty, this high-performance LED area light is an ideal replacement for traditional 1000W to 1500W HID fixtures while significantly reducing maintenance and energy costs.

Technical Performance Specifications
