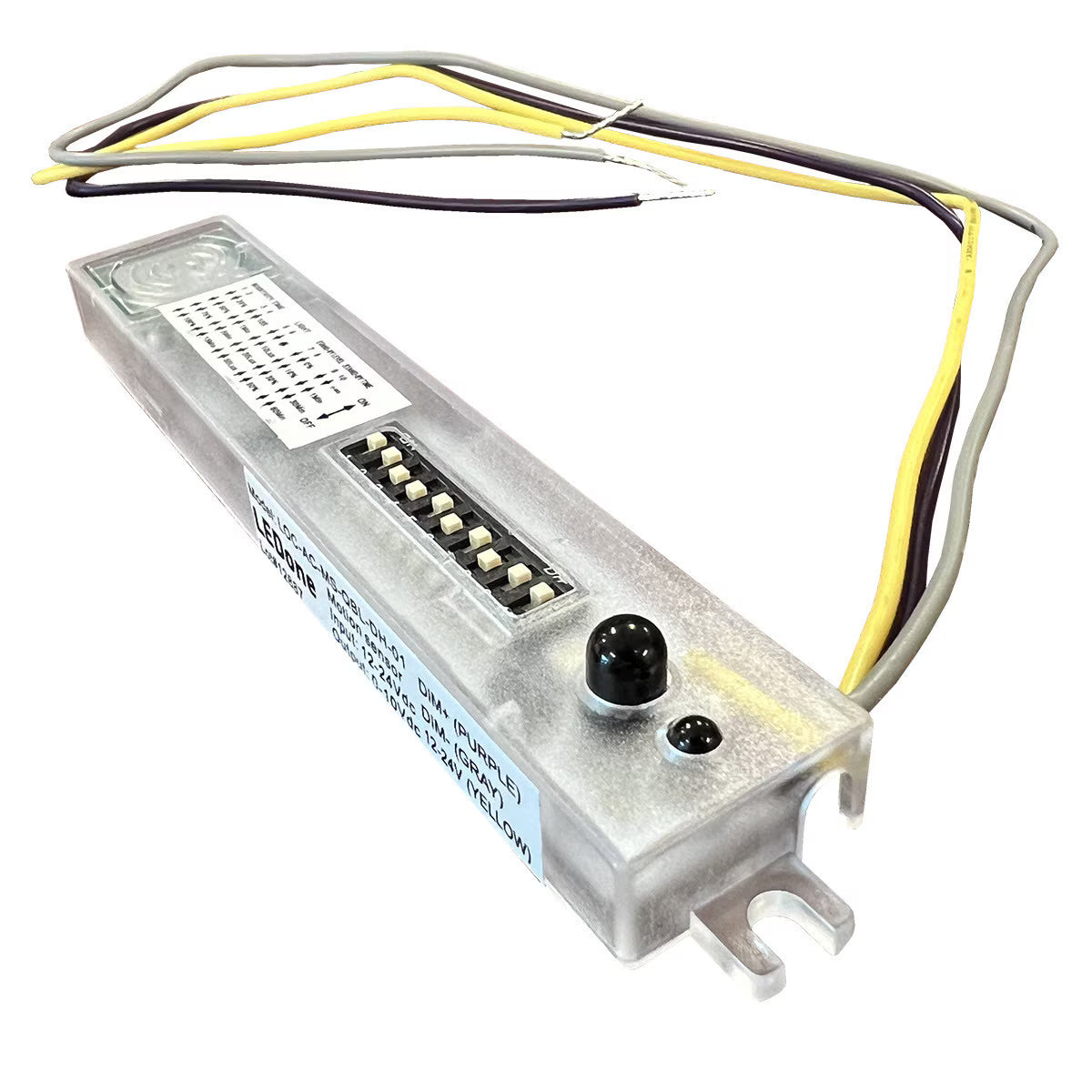

LEDONE AO0302 LOC-AC-MS-QBL-DH-01 Microwave Bi-Level Occupancy Sensor 12-24VDC

Identification & Application

LEDone AO0302 LOC-AC-MS-QBL-DH-01 Microwave Bi-Level Occupancy Sensor 12-24VDC

The LEDone AO0302 LOC-AC-MS-QBL-DH-01 is a bi-level microwave occupancy sensor designed to provide intelligent lighting control with integrated daylight harvesting for indoor LED lighting systems. Utilizing high-frequency microwave sensing technology, the sensor automatically adjusts lighting based on occupancy and ambient daylight, providing smooth transitions between full output, dimmed operation, and OFF to maximize energy savings while maintaining occupant comfort.

Operating from a 12-24VDC power supply, the sensor delivers a 0-10V dimming output for compatible LED drivers. Configuration can be performed using onboard DIP switches or the optional LOC-RC-100 remote control, allowing adjustment of detection sensitivity, hold time, daylight threshold, standby dimming level, and standby time. The integrated daylight harvesting function continuously regulates light output to maintain the desired illumination level as natural daylight changes.

Designed for commercial indoor LED fixtures, the sensor supports mounting heights up to 13 feet with 360° microwave detection and a maximum detection radius of 17 feet. Its compact linear design, high-frequency sensing, adjustable operating parameters, and daylight harvesting capabilities make it ideal for panel lights, troffers, strip fixtures, wrap fixtures, and other commercial LED lighting applications.

Technical Performance Specifications
