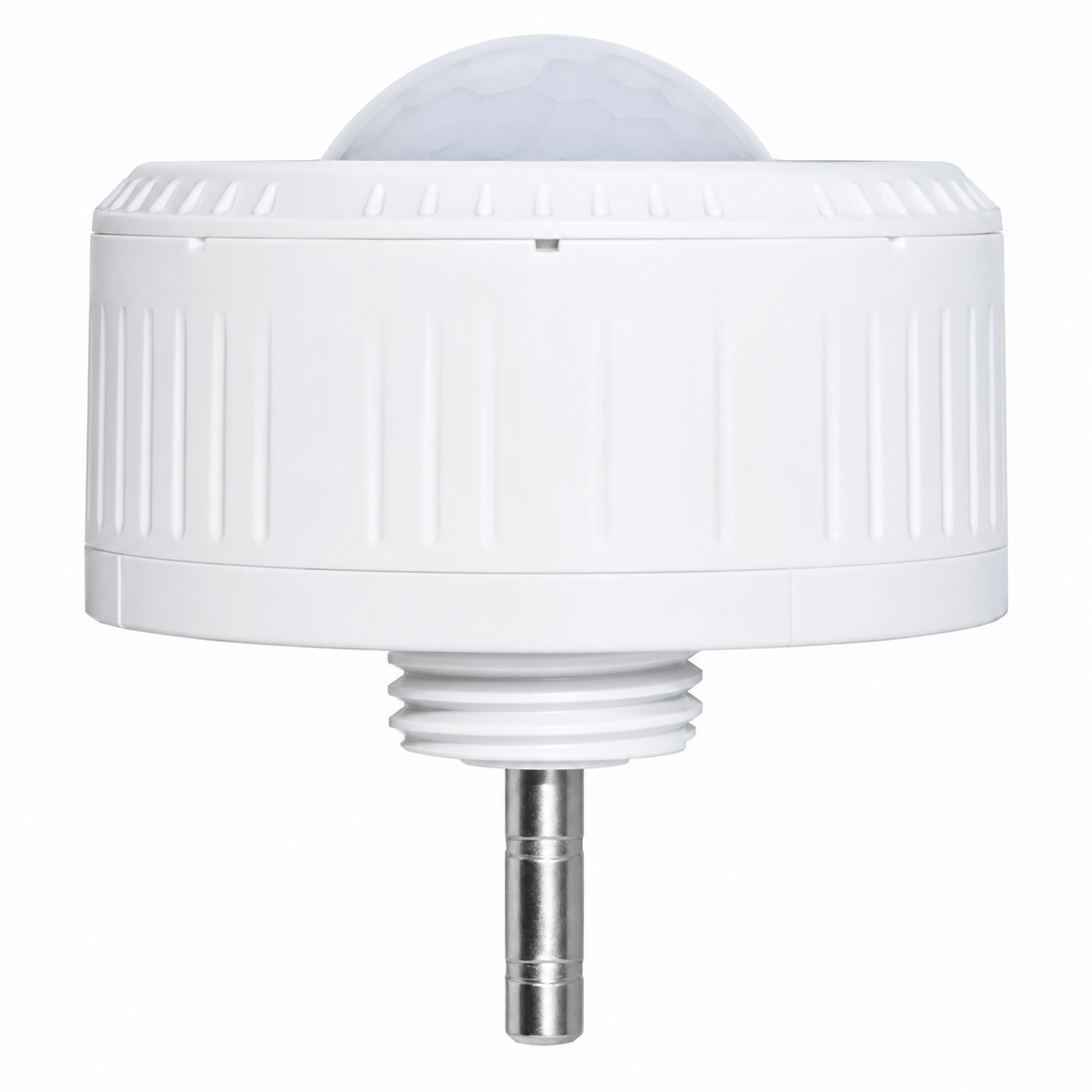

LEDONE AO0306 LOC-ANT-6-4T PIR Bi-Level Occupancy Sensor 12-24VDC

Identification & Application

LEDone AO0306 LOC-ANT-6-4T PIR Bi-Level Occupancy Sensor 12-24VDC

The LEDone AO0306 LOC-ANT-6-4T is a bi-level PIR occupancy sensor designed to provide intelligent motion-based lighting control for outdoor LED fixtures. Utilizing passive infrared (PIR) sensing technology, the sensor automatically switches luminaires between full output, dimmed operation, and OFF based on occupancy and available daylight, helping maximize energy savings while maintaining safe illumination.

Operating from a 12-24VDC power supply, the sensor provides a 0-10V dimming output for compatible LED drivers and dimming ballasts. All operating parameters, including detection sensitivity, hold time, daylight threshold, dimming level, and standby time, are fully adjustable using the optional LOC-RC-100 remote control. Integrated daylight sensing and corridor function provide smooth transitions between lighting levels while adapting to changing ambient light conditions.

Designed for outdoor installations, the LOC-ANT-6-4T features an IP65-rated enclosure suitable for wet and cold locations. Supporting mounting heights up to 40 feet with adjustable detection coverage up to 100%, it is ideal for parking lot fixtures, wall packs, area lights, canopy lights, roadway luminaires, and other outdoor commercial LED lighting applications.

Technical Performance Specifications
