LEDONE AO0320 LOC-ANT-11 Microwave Bi-Level Occupancy Sensor 12-24VDC

Identification & Application

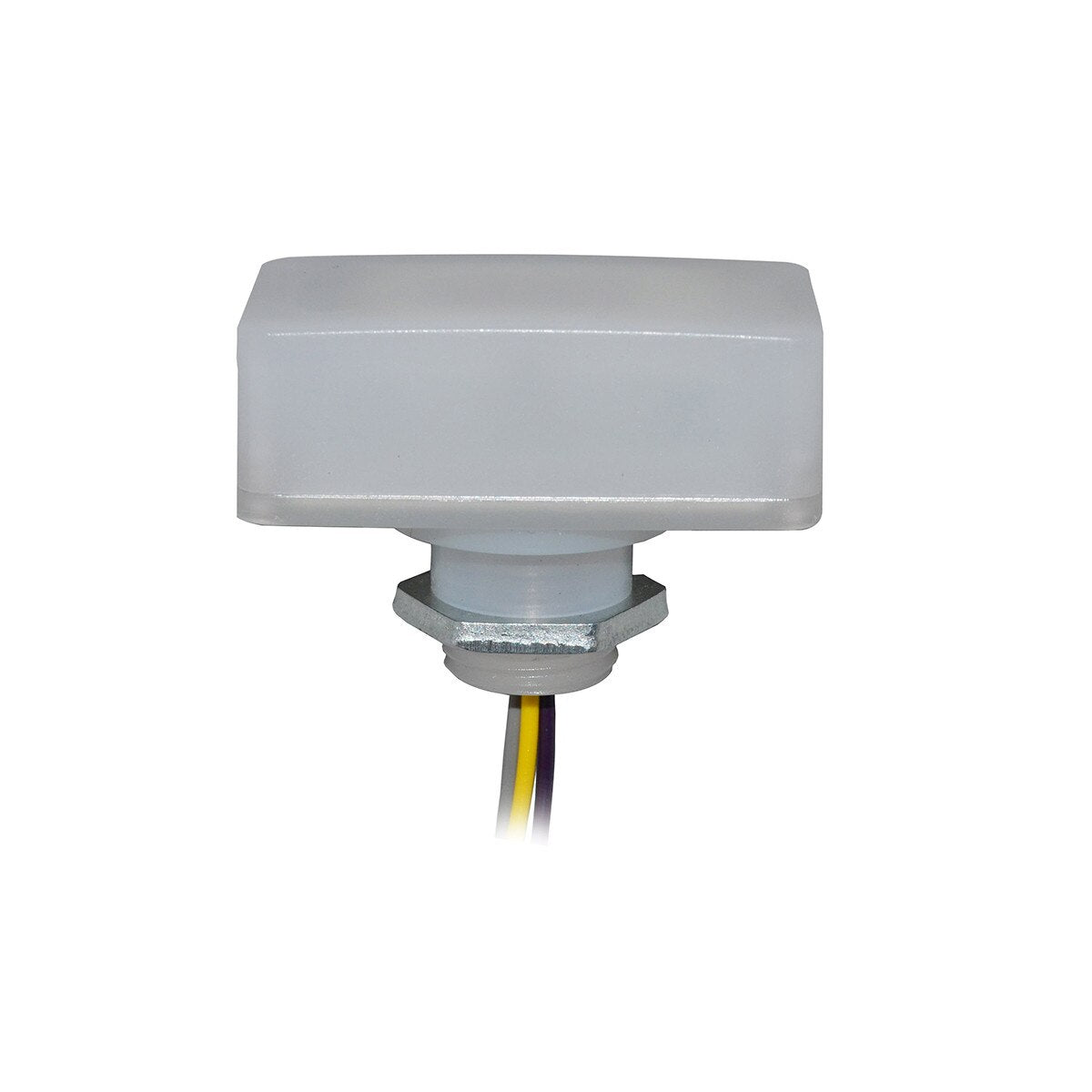

LEDone AO0320 LOC-ANT-11 Microwave Bi-Level Occupancy Sensor 12-24VDC

The LEDone AO0320 LOC-ANT-11 is a low-voltage microwave bi-level occupancy sensor designed to provide intelligent lighting control for indoor LED fixtures. Utilizing 5.8GHz high-frequency microwave sensing technology, the sensor automatically controls lighting based on occupancy and ambient daylight, delivering energy-efficient operation while maintaining comfortable illumination in commercial environments.

Operating from a 12-24VDC power supply, the sensor provides a 0-10V dimming output for compatible LED drivers and dimming ballasts. Configuration is performed using the optional LOC-RC-100 wireless infrared remote control, allowing adjustment of motion sensitivity, daylight threshold, hold time, standby dimming level, and standby period. The sensor provides three-stage lighting control, automatically transitioning between full brightness, dimmed output, and OFF based on occupancy and available daylight.

Designed for ceiling-mounted commercial lighting applications, the LOC-ANT-11 supports 360° microwave detection with mounting heights up to 40 feet and a maximum detection radius of 26 feet. Its compact design, reliable microwave sensing, and intelligent daylight harvesting capabilities make it ideal for high bays, warehouses, parking garages, industrial facilities, and other commercial LED lighting systems requiring automatic occupancy control.

Technical Performance Specifications
