LEDONE AO0331 LOC-ACY-S-PIRS-01-G1 Remote Combo PIR Occupancy Sensor 12VDC

Identification & Application

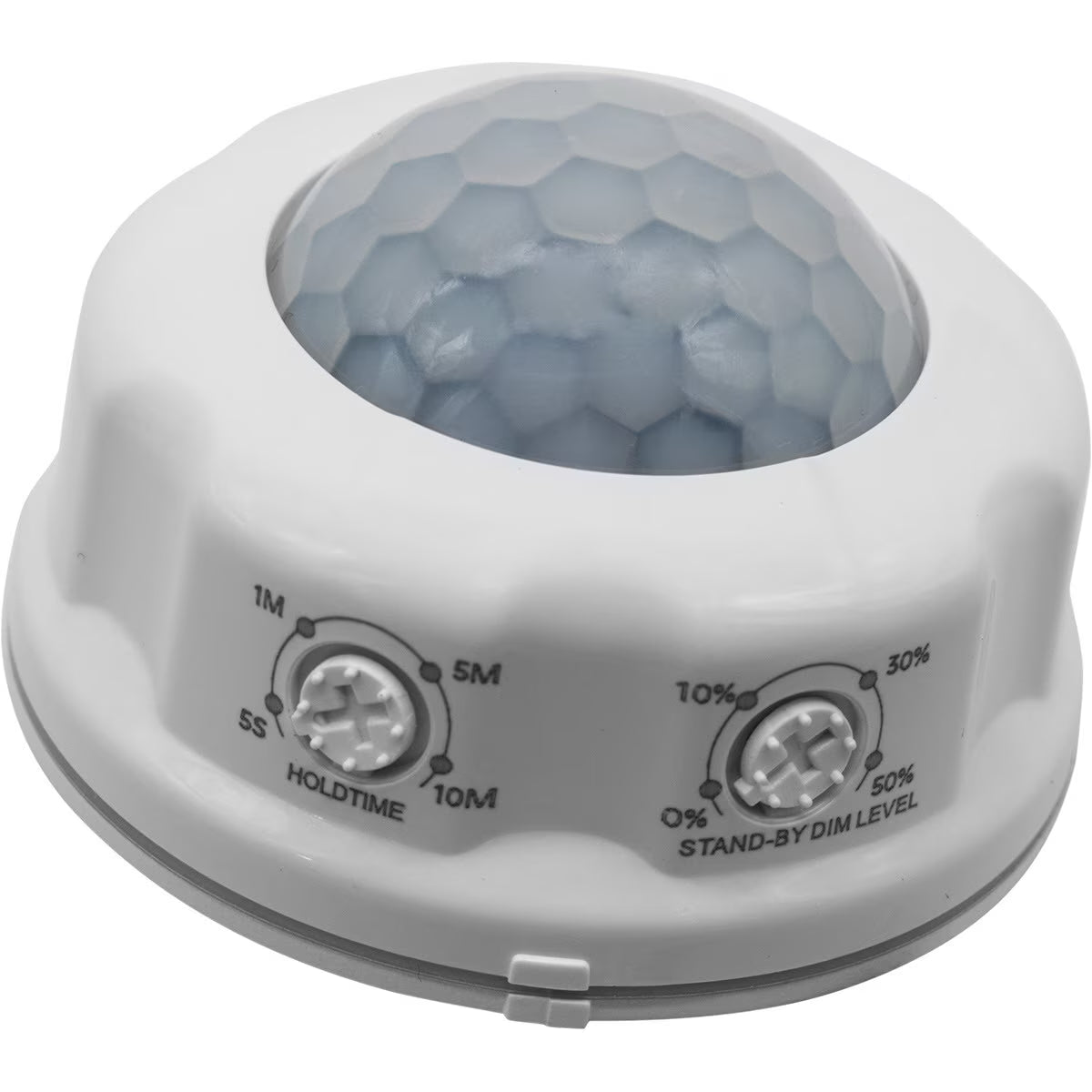

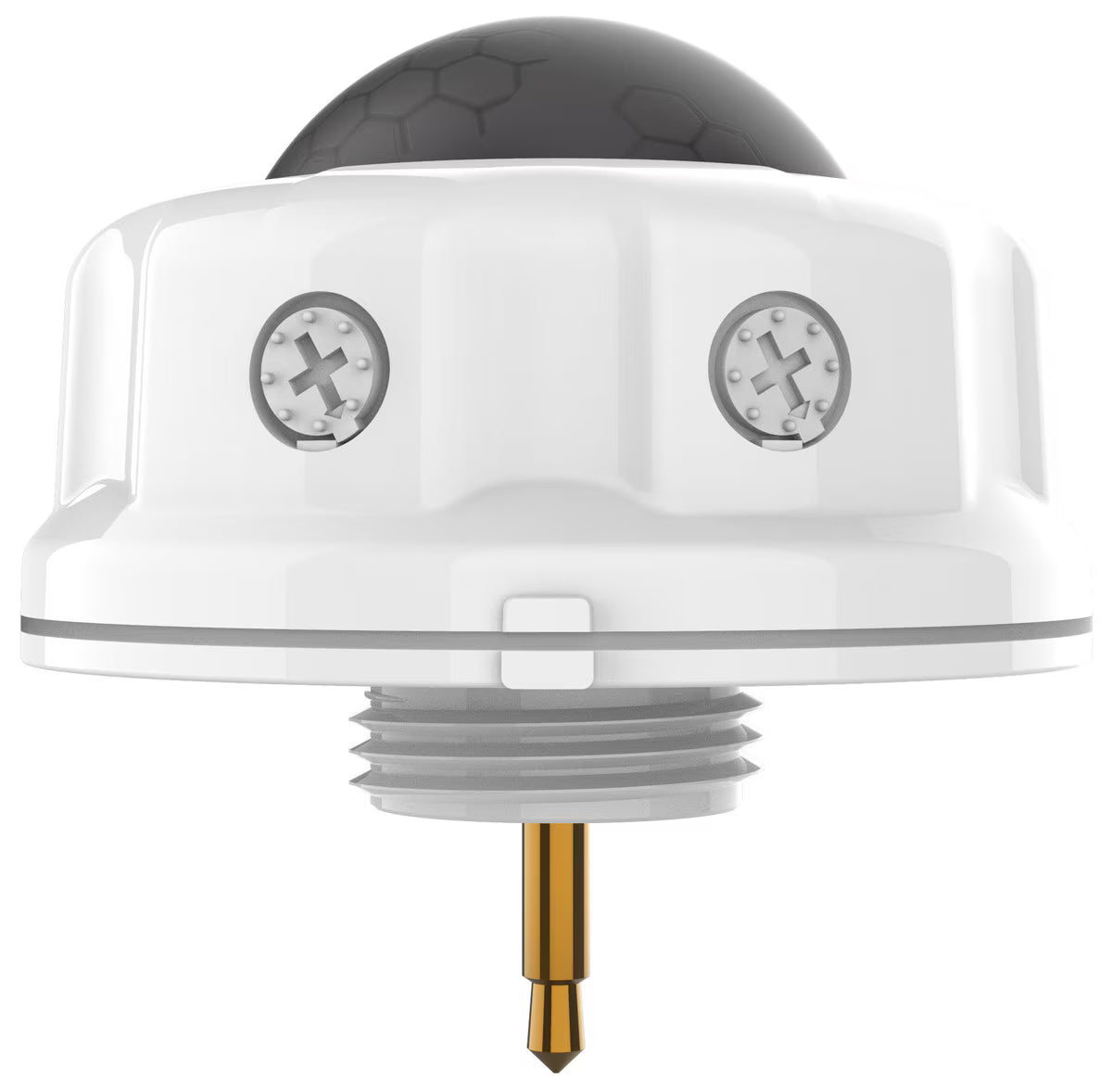

LEDone AO0331 LOC-ACY-S-PIRS-01-G1 Remote Combo PIR Occupancy Sensor 12VDC

The LEDone AO0331 LOC-ACY-S-PIRS-01-G1 is a remote-controlled PIR occupancy sensor designed for compatible LEDone lighting fixtures equipped with a sensor receptacle. Using passive infrared technology, the sensor detects movement within the coverage area and automatically adjusts connected lighting based on occupancy, hold-time, standby, and daylight settings. It is suitable for warehouses, manufacturing facilities, retail spaces, gymnasiums, corridors, and other commercial or industrial areas where automated lighting control can reduce unnecessary energy consumption.

Operating from a 10-15VDC input, this sensor provides a 0-10V dimming signal and supports daylight harvesting and photocell functionality. Users can adjust the detection area, daylight threshold, hold time, standby period, and standby dimming level using the compatible LOC-RC-WHITE-G1 remote control or the built-in adjustment dials. The sensor can keep the connected fixture off when sufficient natural daylight is available, activate the light when motion is detected under low-light conditions, and dim or switch the fixture off after the programmed occupancy period.

The sensor supports ceiling-mounted installations at heights up to approximately 39 feet and provides an adjustable detection radius of approximately 9.84 to 22.96 feet. Its IP65-rated enclosure offers protection from dust and water exposure, while the operating temperature range of -20°C to 60°C supports dependable performance in a variety of indoor commercial and industrial environments. The regular version memorizes the most recently programmed settings for consistent operation after configuration.

Technical Performance Specifications
