LEDONE AO0370 LOC-ACY-S-PIRS-BT-02-G2 Remote Combo PIR Occupancy Sensor with Bluetooth 12VDC

Identification & Application

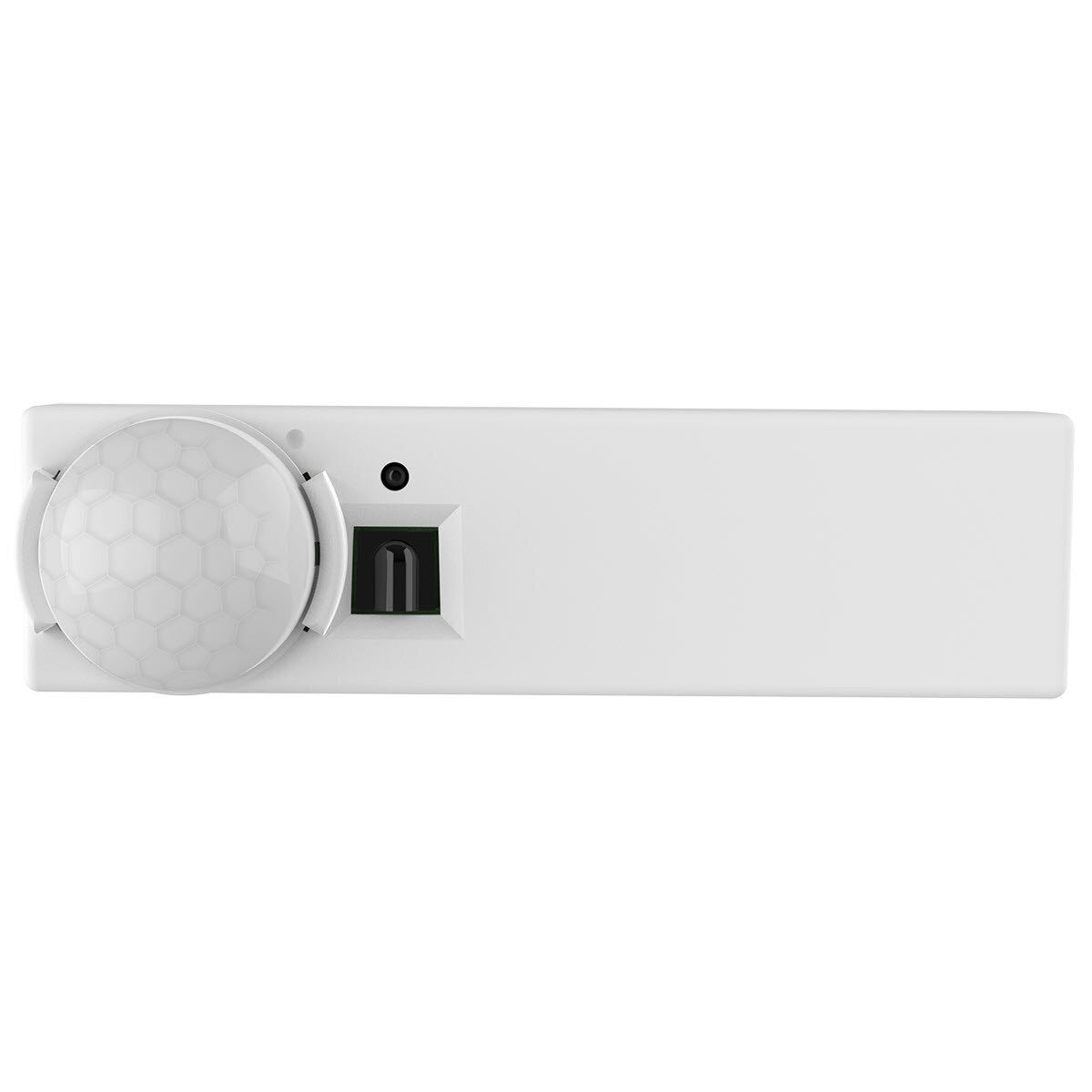

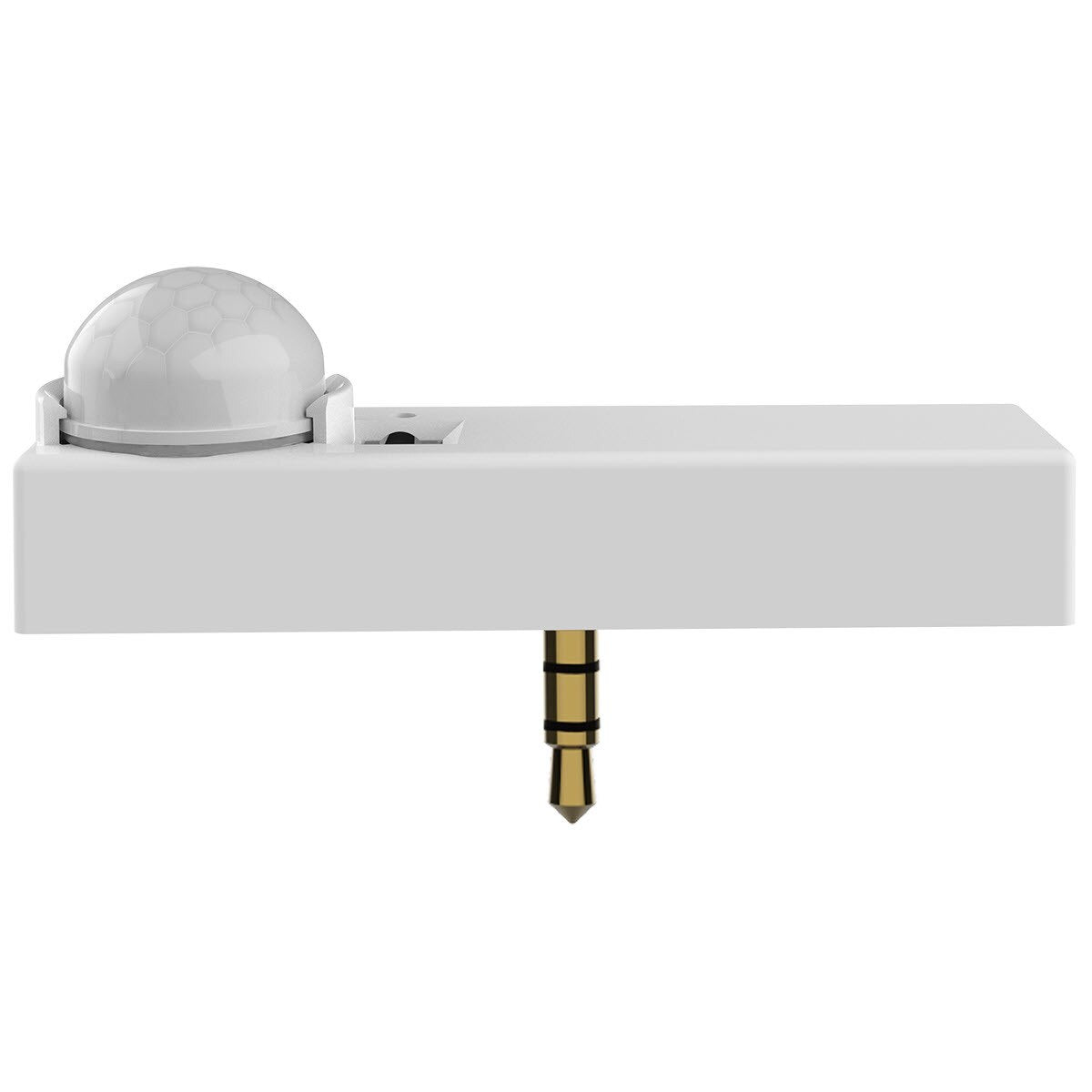

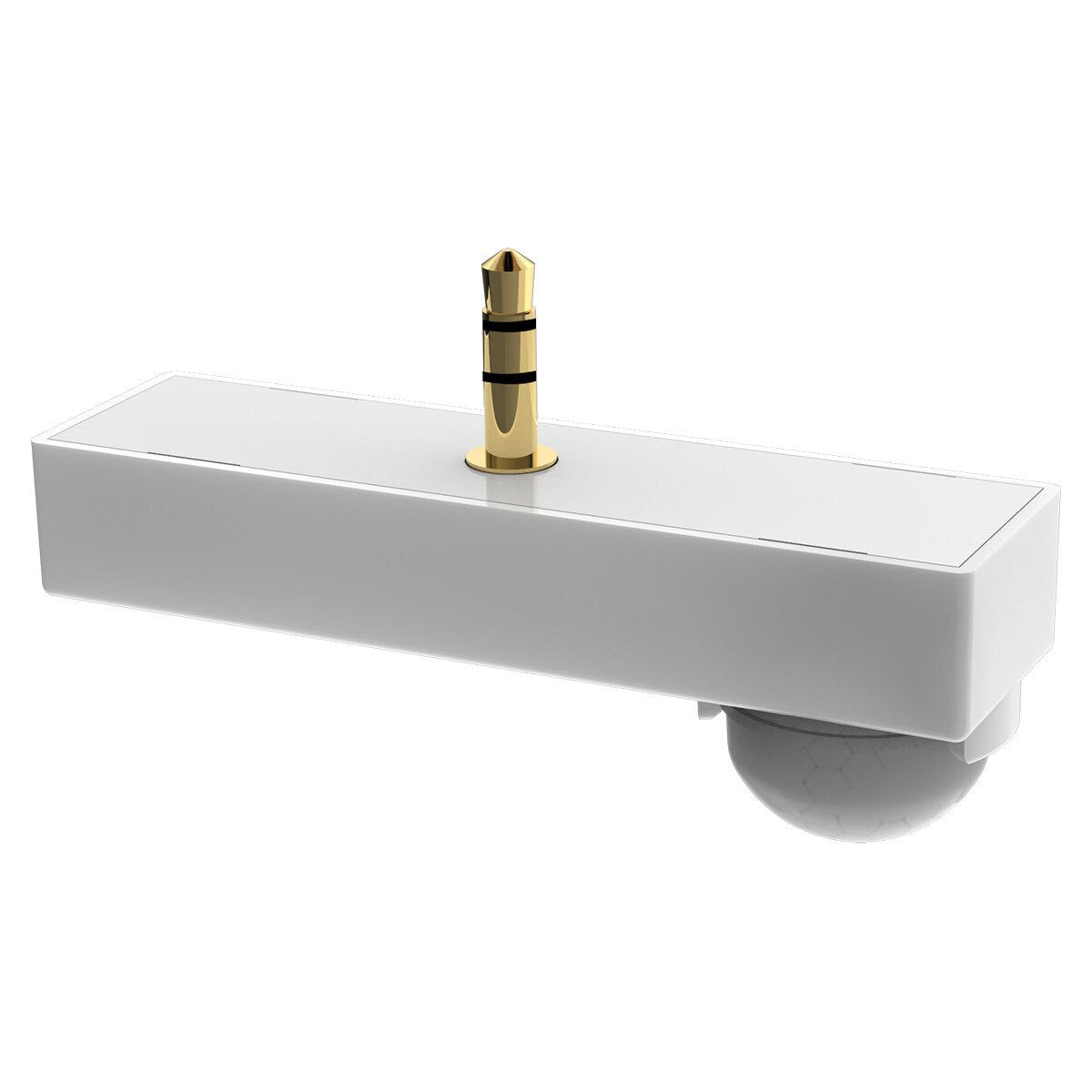

LEDone AO0370 LOC-ACY-S-PIRS-BT-02-G2 Remote Combo PIR Occupancy Sensor with Bluetooth 12VDC

The LEDone AO0370 LOC-ACY-S-PIRS-BT-02-G2 is a Bluetooth-enabled bi-level PIR occupancy sensor designed to provide intelligent lighting control for compatible LED fixtures. Utilizing passive infrared (PIR) technology, the sensor automatically controls lighting based on occupancy, ambient daylight, hold time, standby dimming level, and standby period. The Bluetooth version enables convenient wireless configuration while delivering dependable occupancy-based lighting management for indoor commercial applications.

Operating from a 12VDC input with a 10-15VDC operating range, the sensor provides a 0-10V dimming output for compatible LED drivers. Settings including detection area, hold time, daylight threshold, standby period, and standby dimming level can be adjusted through Bluetooth using a compatible mobile application. The sensor also supports daylight harvesting and dusk-to-dawn functionality, automatically turning lighting on only when ambient light is below the selected threshold and dimming or switching fixtures off after occupancy is no longer detected.

Designed exclusively for indoor ceiling-mounted installations, the Fresnel lens must remain exposed below the lighting fixture and should not be obstructed by shelving or other objects. Supporting mounting heights up to approximately 13 feet with a detection radius of up to 13.12 feet and Bluetooth communication distances exceeding 65 feet, the sensor provides an efficient smart lighting solution for offices, classrooms, retail spaces, warehouses, and other commercial environments.
