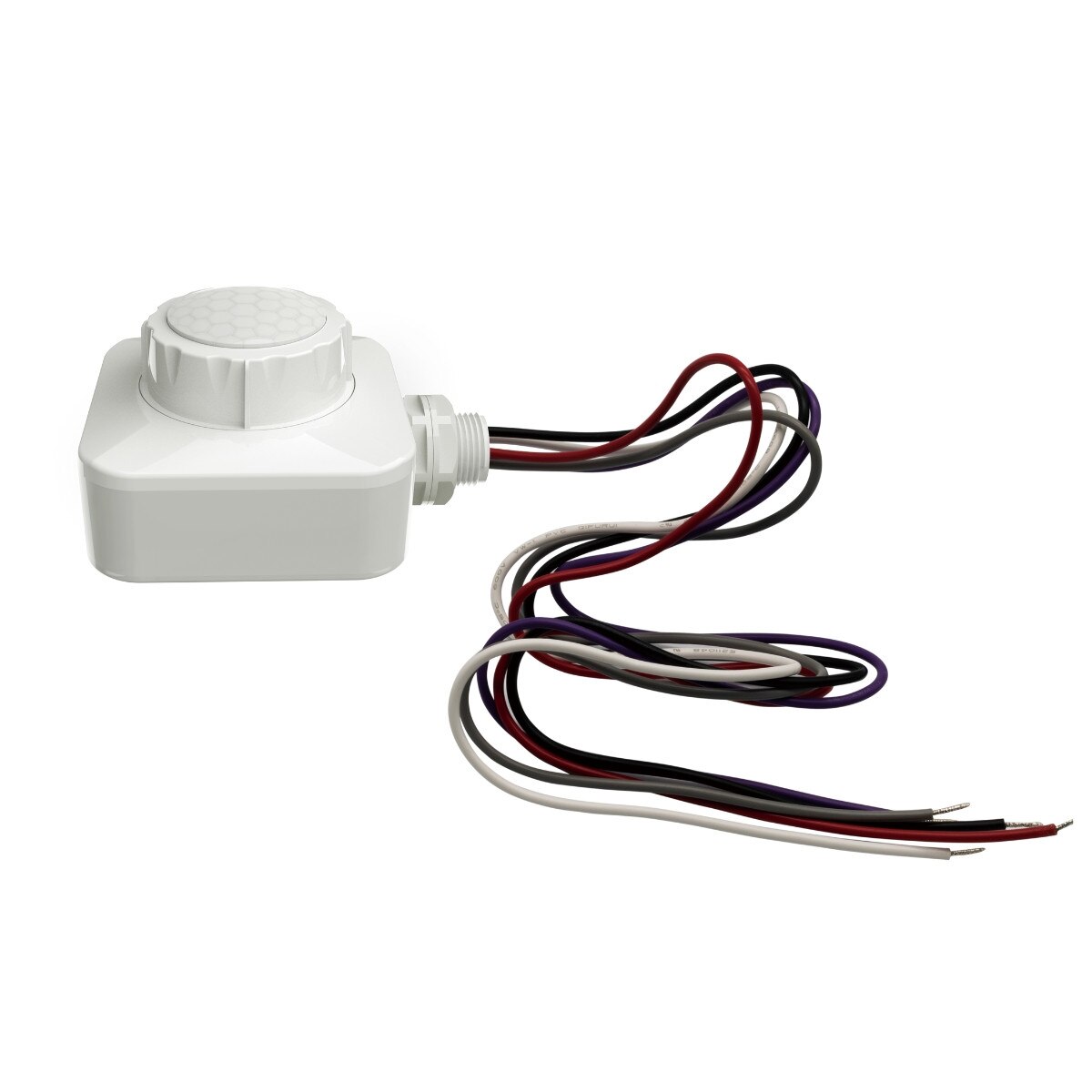

LEDONE AO0393 LOC-ACY-W-MS-02-G1 PIR Remote Occupancy Sensor 120-347V

Identification & Application

LEDone AO0393 LOC-ACY-W-MS-02-G1 PIR Remote Occupancy Sensor 120-347V

The LEDone AO0393 LOC-ACY-W-MS-02-G1 is a PIR occupancy sensor with 0-10V dimming control designed to provide intelligent lighting automation for commercial and industrial LED fixtures. Utilizing passive infrared (PIR) sensing technology with integrated daylight harvesting and photocell functionality, the sensor automatically adjusts lighting based on occupancy and available natural light to maximize energy savings while maintaining occupant comfort.

Operating from a wide 120-347VAC input range, the sensor provides 0-10V dimming control for compatible LED drivers. Configuration is performed using the required LOC-RC-WHITE-G1 remote control, allowing adjustment of detection area, hold time, daylight threshold, standby period, and standby dimming level. The sensor supports multiple dimming and occupancy settings, making it suitable for applications requiring flexible lighting control.

Designed for installation in linear fixtures using a standard knockout or in UFO high bay fixtures with an optional mounting bracket, the sensor supports mounting heights up to 39 feet with a detection radius of up to 22.96 feet. Its wide voltage compatibility, intelligent dimming capabilities, and commercial-grade design make it an excellent solution for warehouses, manufacturing facilities, offices, retail spaces, schools, and other indoor commercial lighting applications.

Technical Performance Specifications
