LEDONE AO0394 LOC-ACY-S-PC-01-G1 Basic On/Off Photocell/Daylight Harvesting Sensor 10-15VDC

Identification & Application

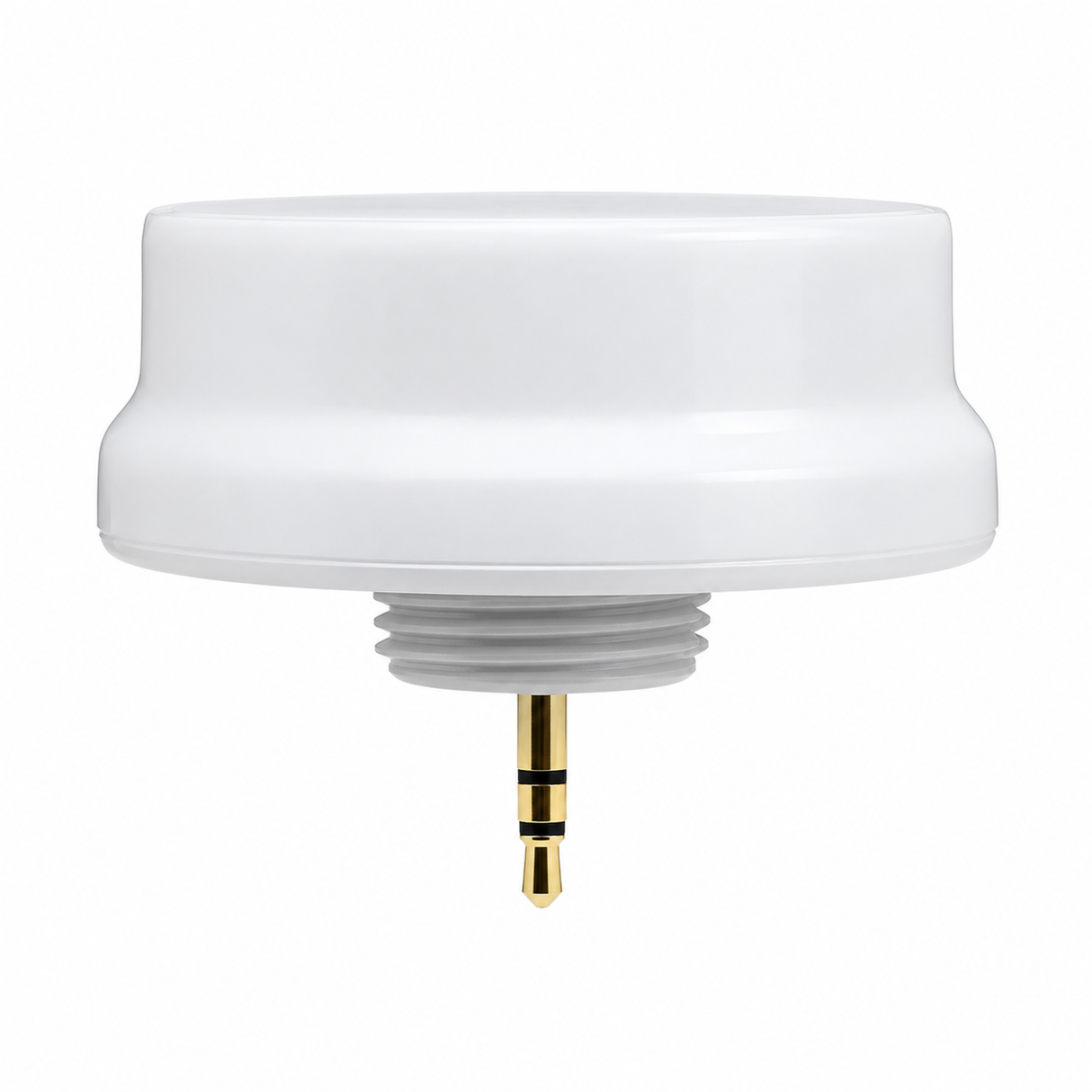

LEDone AO0394 LOC-ACY-S-PC-01-G1 Basic On/Off Photocell/Daylight Harvesting Sensor 10-15VDC

The LEDone AO0394 LOC-ACY-S-PC-01-G1 is a low-voltage photocell and daylight harvesting sensor designed to provide automatic daylight-responsive lighting control for compatible LED fixtures. Operating without motion detection, the sensor continuously monitors ambient light levels to automatically switch lighting on or off and provide smooth 0-10V dimming for enhanced energy savings and consistent illumination.

Powered by a 10-15VDC input, the sensor supports both photocell and daylight harvesting operation with programmable daylight thresholds ranging from 30 to 400 lux. Ambient brightness learning allows the sensor to automatically establish a custom daylight reference point, while the optional HD05R remote control enables convenient configuration of daylight settings without accessing the fixture. Fast 3-10 second response time and bi-level dimming ensure reliable, efficient lighting control in changing daylight conditions.

Ideal for commercial, industrial, and architectural lighting systems, the LOC-ACY-S-PC-01-G1 features an IP65-rated housing for demanding environments and integrates easily with compatible 0-10V dimmable LED drivers. Typical applications include warehouses, offices, retail facilities, schools, parking structures, and other locations where automatic daylight harvesting improves energy efficiency and occupant comfort.

Technical Performance Specifications
