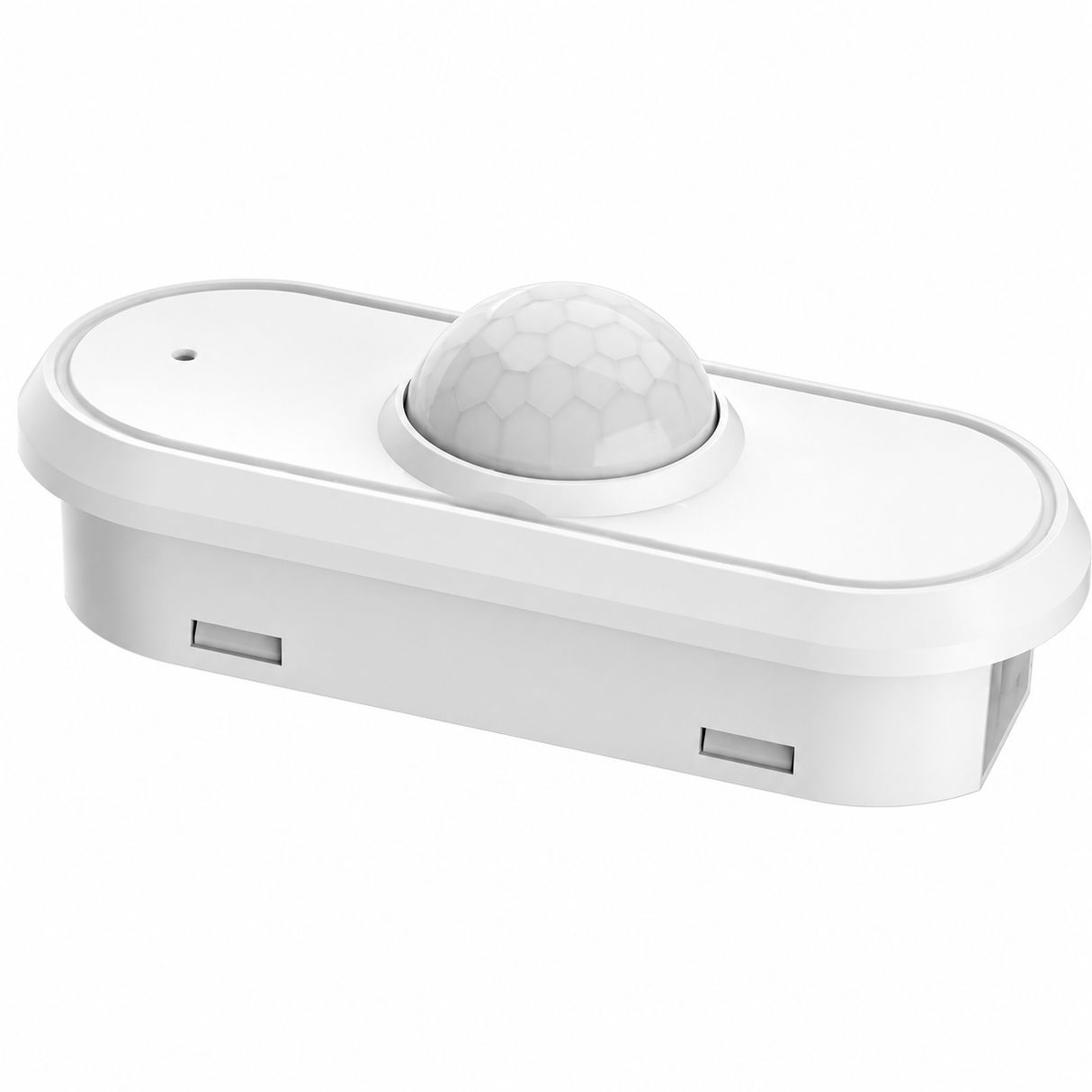

LEDONE AO0397 LOC-ACY-S-PIRS-01-G4 Pro Series PIR Occupancy Sensor 12VDC

Identification & Application

LEDone AO0397 LOC-ACY-S-PIRS-01-G4 Pro Series PIR Occupancy Sensor 12VDC

The LEDone AO0397 LOC-ACY-S-PIRS-01-G4 Pro Series PIR Occupancy Sensor is an intelligent lighting control solution designed to provide automatic occupancy sensing and energy-efficient dimming for compatible LED luminaires. Utilizing passive infrared (PIR) sensing technology with integrated daylight harvesting, the sensor automatically adjusts lighting based on occupancy and ambient light levels, making it ideal for commercial applications requiring reliable energy management.

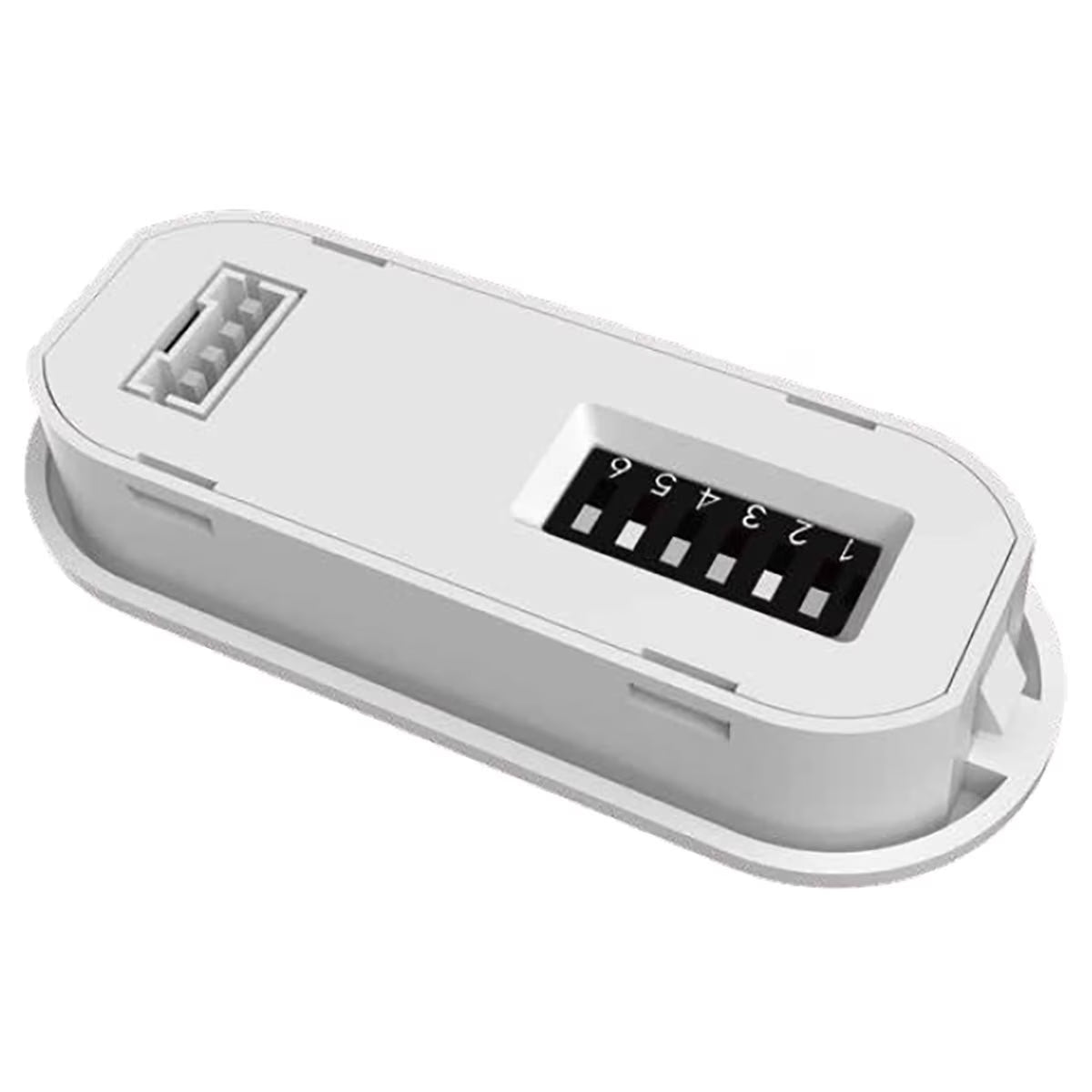

Operating from a 10-15VDC input, the sensor provides a 0-10V PWM dimming output for compatible LED drivers. Configuration is performed using the LOC-RC-WHITE-BT-G1 remote control, allowing users to customize detection area, hold time, daylight threshold, standby period, standby dimming level, and sensing mode. The low-profile linear housing with a 4-pin connection supports color-tuning compatible fixtures while maintaining a clean, unobtrusive appearance within the luminaire.

Designed for panel lights, troffers, and troffer retrofit fixtures, the Pro Series PIR sensor supports mounting heights up to 13 feet with adjustable detection coverage. Daylight harvesting and dusk-to-dawn functionality help maximize energy savings by automatically dimming or switching lighting according to occupancy and available natural light, making it an excellent solution for offices, educational facilities, healthcare environments, and other commercial buildings.

Technical Performance Specifications
