LEDONE AO0404 LOC-ACY-S-PIRS-02-G3 Remote Combo PIR Occupancy Sensor 12VDC

Identification & Application

LEDone AO0404 LOC-ACY-S-PIRS-02-G3 Remote Combo PIR Occupancy Sensor 12VDC

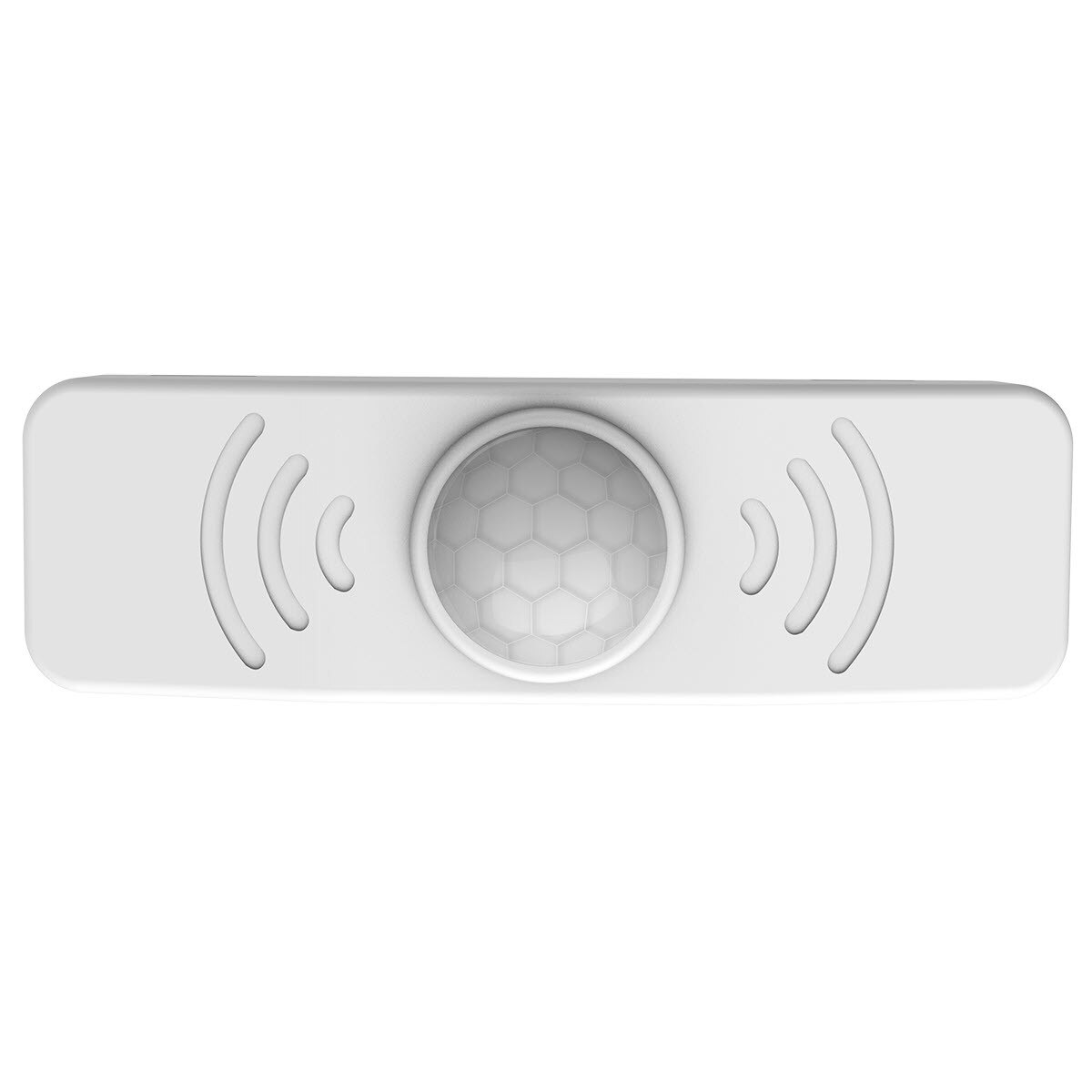

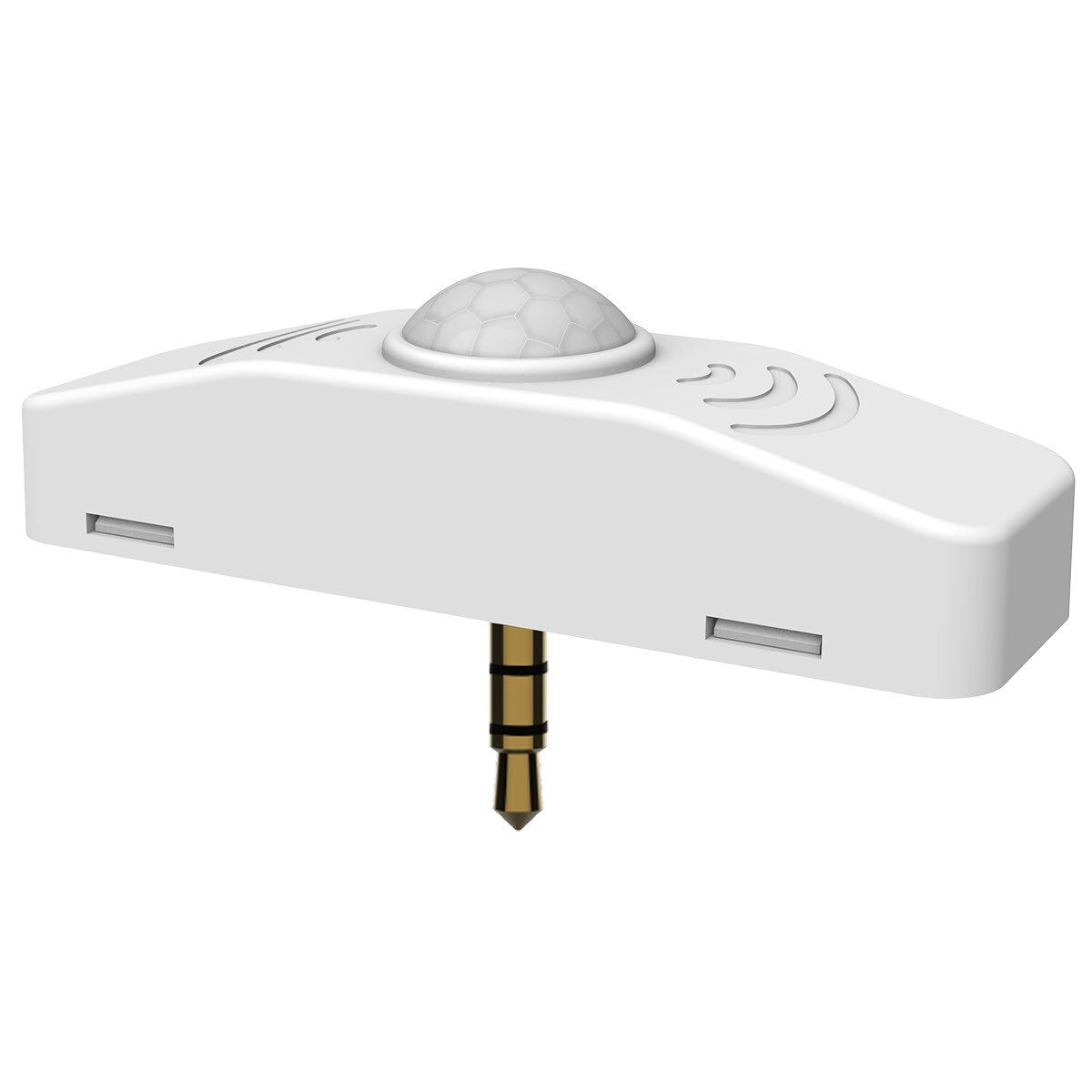

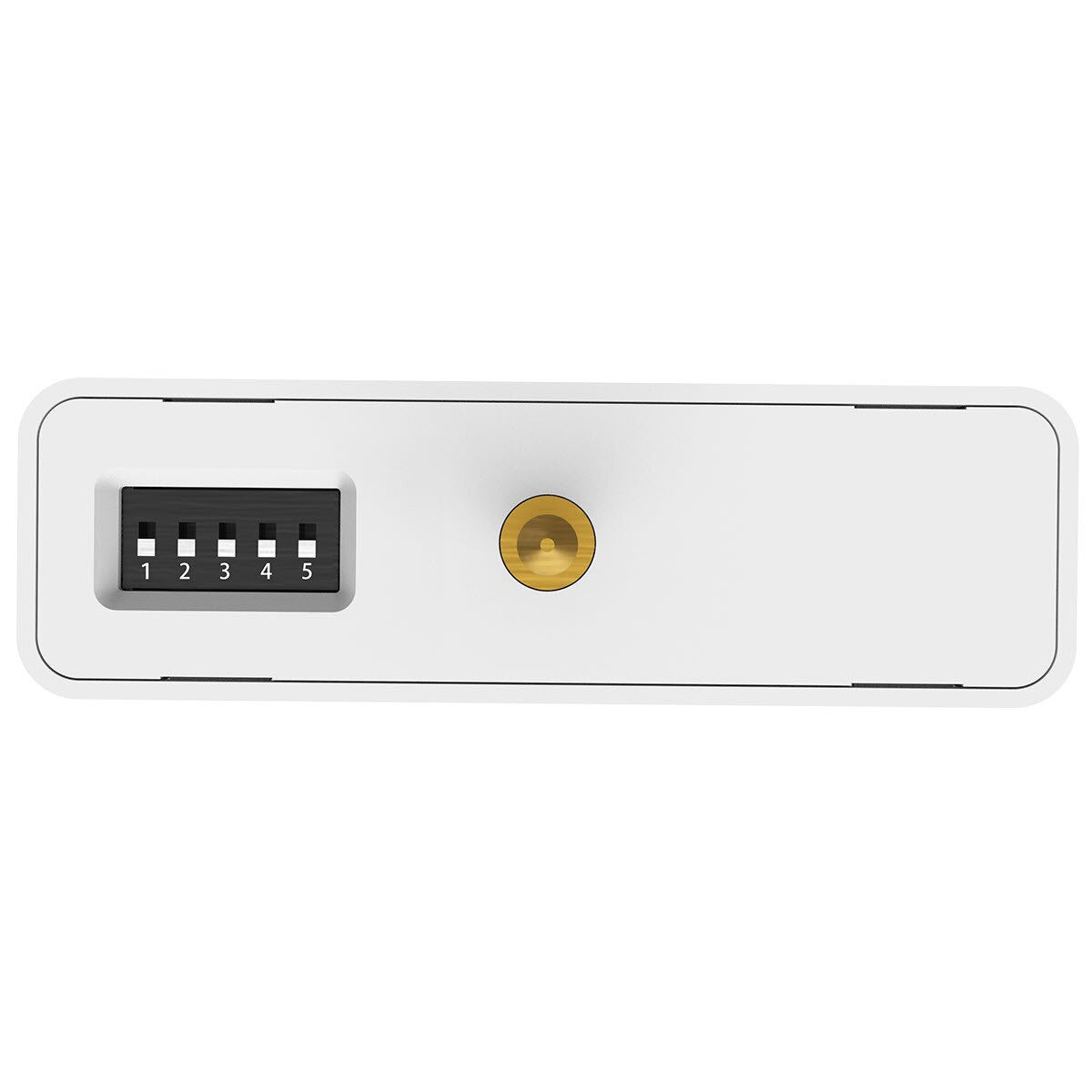

The LEDone AO0404 LOC-ACY-S-PIRS-02-G3 is a bi-level PIR occupancy sensor designed to provide intelligent lighting control for compatible LED fixtures. Utilizing passive infrared (PIR) technology, the sensor automatically controls lighting based on occupancy, available daylight, hold time, standby dimming level, and standby period. Designed for panel lights, troffers, strip fixtures, wrap fixtures, and similar commercial luminaires, it helps reduce energy consumption while maintaining occupant comfort.

Operating from a 10-15VDC input, the sensor delivers a 0-10V dimming control signal for compatible LED drivers. Configuration is performed using the compatible LOC-RC-WHITE-G1 remote control, allowing adjustment of detection area, hold time, daylight threshold, standby period, and standby dimming level. Integrated daylight harvesting and photocell functionality automatically regulate fixture output based on available natural light, while dusk-to-dawn operation further enhances energy savings.

Designed for indoor ceiling-mounted applications, the sensor supports mounting heights up to 13 feet with a selectable detection area up to 100%. The compact design, low standby power consumption, and intelligent lighting control capabilities make the LOC-ACY-S-PIRS-02-G3 an excellent solution for offices, schools, healthcare facilities, retail spaces, warehouses, and other commercial environments requiring automatic occupancy-based lighting control.

Technical Performance Specifications
