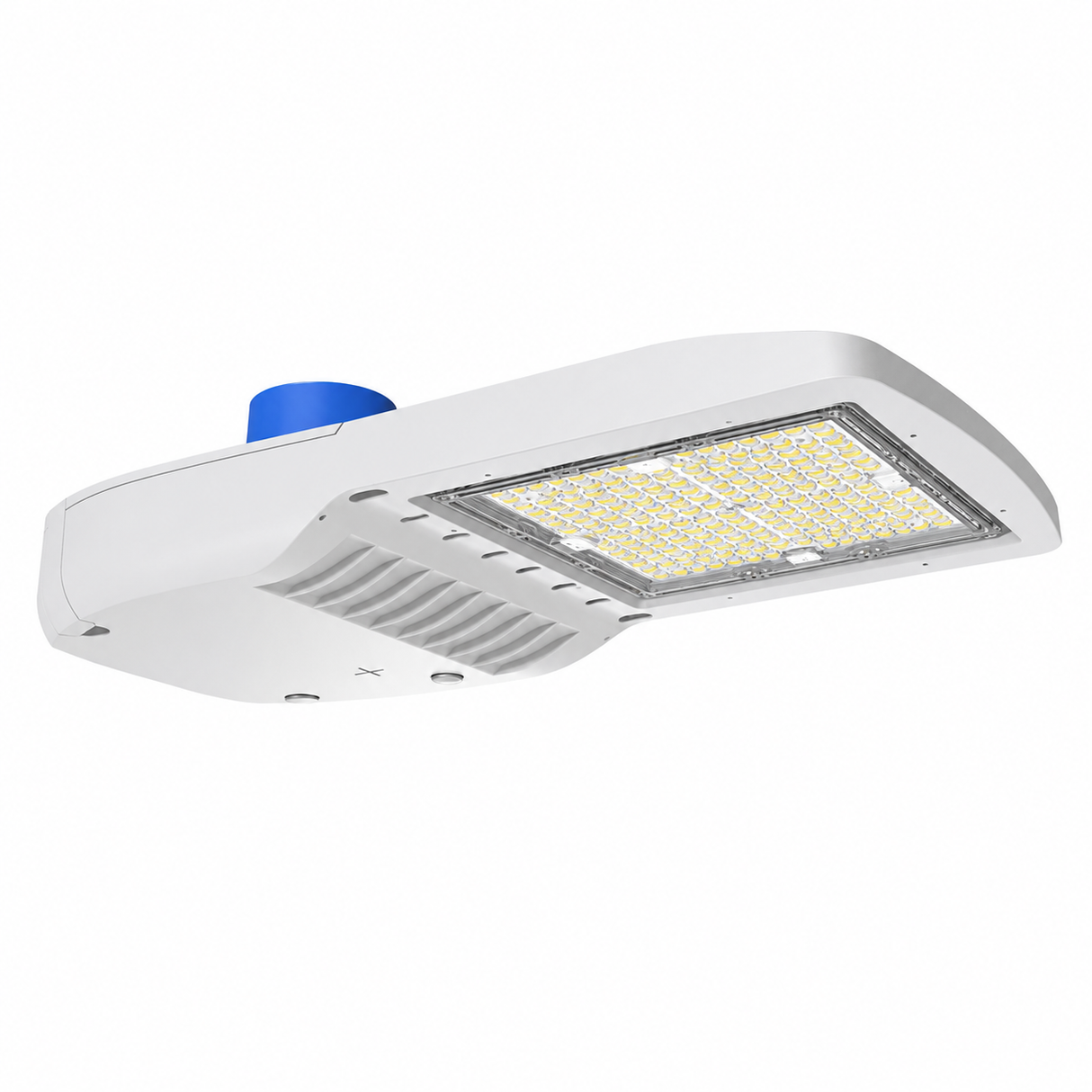

LEDONE CH0006 LOC-ST-MW(60/80/100/120)MCCT(30/40/50)-T2(Grey) 60/80/100/120W LED Area Light 3000K/4000K/5000K Sensor Ready 120-277V

Identification & Application

LEDone CH0006 LOC-ST-MW(60/80/100/120)MCCT(30/40/50)-T2 (Grey) 60/80/100/120W LED Street Light 3000K/4000K/5000K Sensor Ready 120-277V

The LEDone LOC-ST-MW(60/80/100/120)MCCT(30/40/50)-T2 is a commercial-grade LED street light engineered to deliver dependable roadway and area illumination with exceptional energy efficiency and long-term performance. Featuring selectable 60W, 80W, 100W, and 120W power settings along with selectable 3000K, 4000K, and 5000K color temperatures, this versatile luminaire allows installers to customize both light output and color appearance from a single fixture. Producing up to 16,320 lumens with efficacy up to 136 lumens per watt, it is ideal for streets, parking lots, parks, warehouses, factories, stadiums, supermarkets, logistics centers, and exhibition halls.

Constructed with a corrosion-resistant silver die-cast aluminum housing treated by anodic oxidation, the fixture is designed for demanding outdoor environments. Premium SMD 3030 LED chips, a Type II lens, 100° beam angle, IP65 weather resistance, and integrated 10kV/6kV surge protection provide dependable illumination and long service life. Standard 0-10V dimming and photocell control simplify installation while providing energy-saving lighting control.

Designed for years of maintenance-free operation, the LOC-ST-MW(60/80/100/120)MCCT(30/40/50)-T2 mounts directly to 50-60 mm poles or tenons using its internal bracket mounting system. With a 50,000-hour rated life and a 5-year limited warranty, this DLC Premium listed LED street light is an excellent replacement for traditional 175W to 1,000W HID roadway fixtures while significantly reducing maintenance and operating costs.

Technical Performance Specifications
