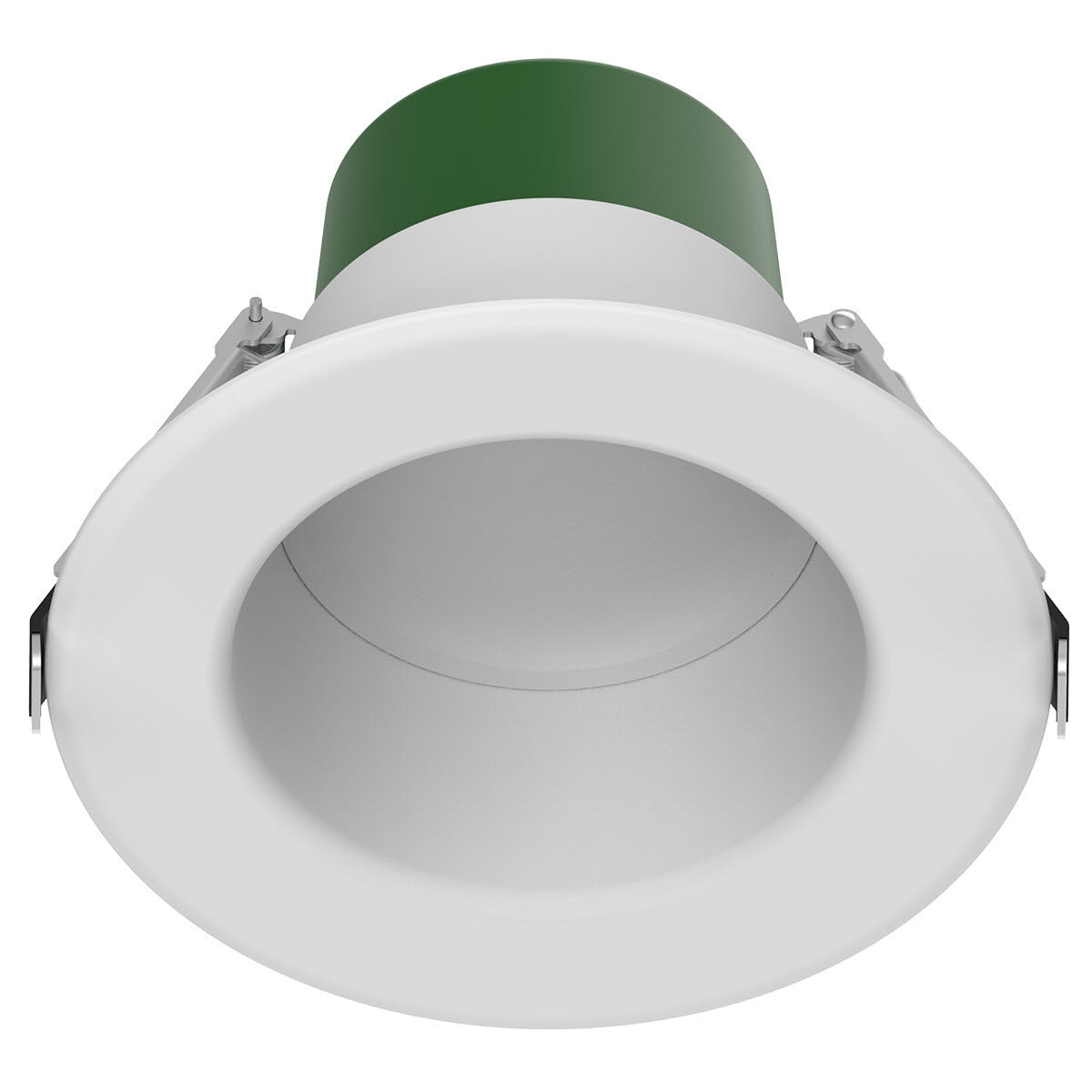

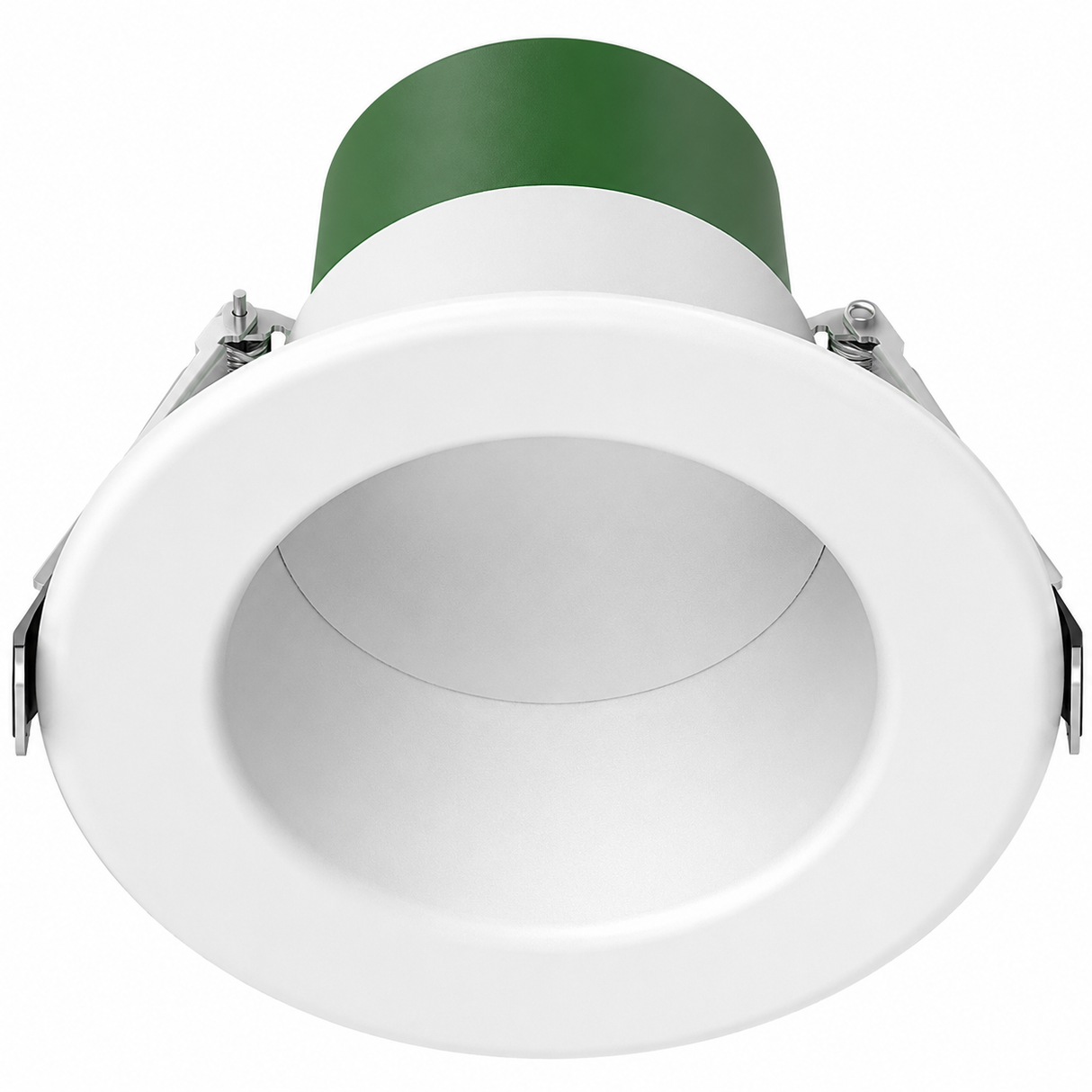

LEDONE DL0077 LOC-4DL-MW(5.5/8/12)MCCT(30/40/50)D 5.5/8/12W 4-Inch LED Commercial Down Light 3000K/4000K/5000K 120-277V

Identification & Application

LEDone DL0077 LOC-4DL-MW(5.5/8/12)MCCT(30/40/50)D 5.5/8/12W 4-Inch LED Commercial Down Light 3000/4000/5000K 120-277V

The LEDone DL0077 LOC-4DL-MW(5.5/8/12)MCCT(30/40/50)D is a commercial-grade 4-inch LED recessed downlight featuring field-selectable wattage and color temperature, allowing installers to select 5.5W, 8W, or 12W output along with 3000K, 4000K, or 5000K color temperatures to match virtually any commercial or residential lighting application. Designed for maximum installation flexibility, this all-in-one fixture replaces multiple fixture models while reducing inventory requirements and simplifying project planning.

Constructed with a durable aluminum housing and aluminum heat sink for natural convective cooling, the fixture utilizes premium Lumiled LED chips to produce up to 1,000 lumens with a high 93 CRI and a wide 90° beam angle for smooth, uniform illumination. Universal 120-277VAC operation, 0-10V dimming capability, and torsion spring clip installation make it suitable for both new construction and retrofit applications.

Rated for 50,000 hours of operation, the LOC-4DL-MW is IP44 rated, IC Rated, Airtight, UL Certified, and Energy Star certified. It is ideal for kitchens, bathrooms, bedrooms, hallways, corridors, museums, offices, retail spaces, hospitality environments, healthcare facilities, and other commercial or residential recessed lighting installations. An optional LOC-EMDR-25WHV emergency battery backup is also available for emergency lighting applications.

Technical Performance Specifications
