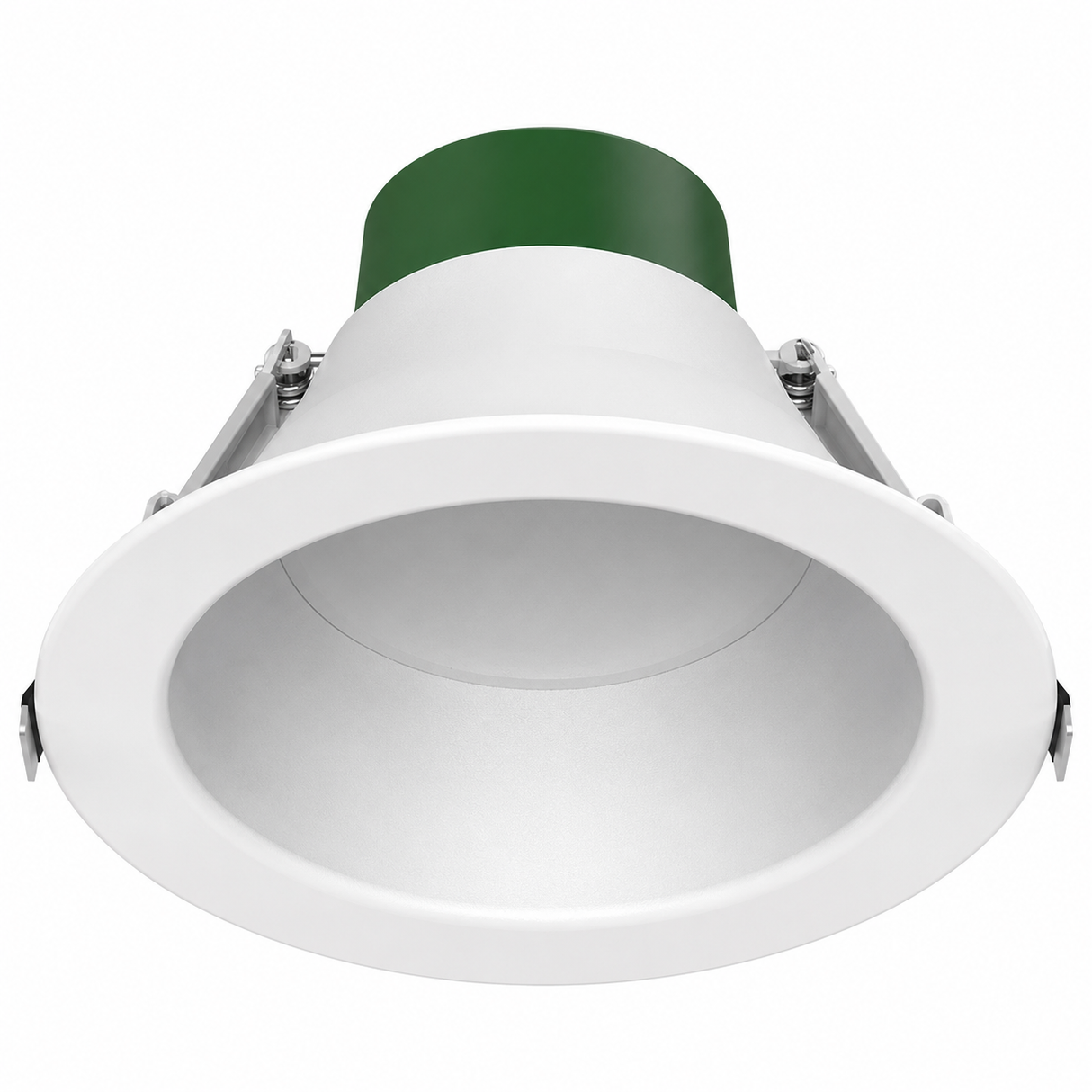

LEDONE DL0080 LOC-9.5DL-MW(20/25/32) MCCT(30/40/50)D 20/25/32W 9.5-Inch LED Commercial Down Light 3000K/4000K/5000K 120-277V

Identification & Application

LEDone DL0080 LOC-9.5DL-MW(20/25/32) MCCT(30/40/50)D 20/25/32W 9.5-Inch LED Commercial Down Light 3000K/4000K/5000K 120-277V

The LEDone LOC-9.5DL-MW(20/25/32)MCCT(30/40/50)D is a commercial-grade 9.5-inch LED downlight featuring field-selectable wattages of 20W, 25W, and 32W along with selectable 3000K, 4000K, and 5000K color temperatures. Designed for universal 120-277VAC operation, the fixture provides flexible performance for new construction, renovation, and retrofit applications while delivering up to 3,001.6 lumens. It is ideal for kitchens, bedrooms, bathrooms, corridors, hallways, museums, offices, schools, hospitals, retail spaces, and other commercial interiors.

Constructed with a durable aluminum housing and lightweight aluminum heat sink for efficient thermal management, the downlight utilizes Lumiled LED chips to provide uniform illumination through a 90° beam angle. The fixture supports smooth 0-10V dimming, delivers excellent color accuracy with a 94 CRI, and installs easily using torsion spring clips. An IP44 rating makes it suitable for damp indoor environments.

Designed for long-lasting commercial performance, the LOC-9.5DL-MW(20/25/32)MCCT(30/40/50)D is rated for 50,000 hours of operation and is backed by a 5-year limited warranty. It is Energy Star certified, UL Listed, Airtight Housing rated, IC Rated, and is compatible with the optional LOC-EMDR-25WHV emergency battery for enhanced life safety applications.

Technical Performance Specifications
