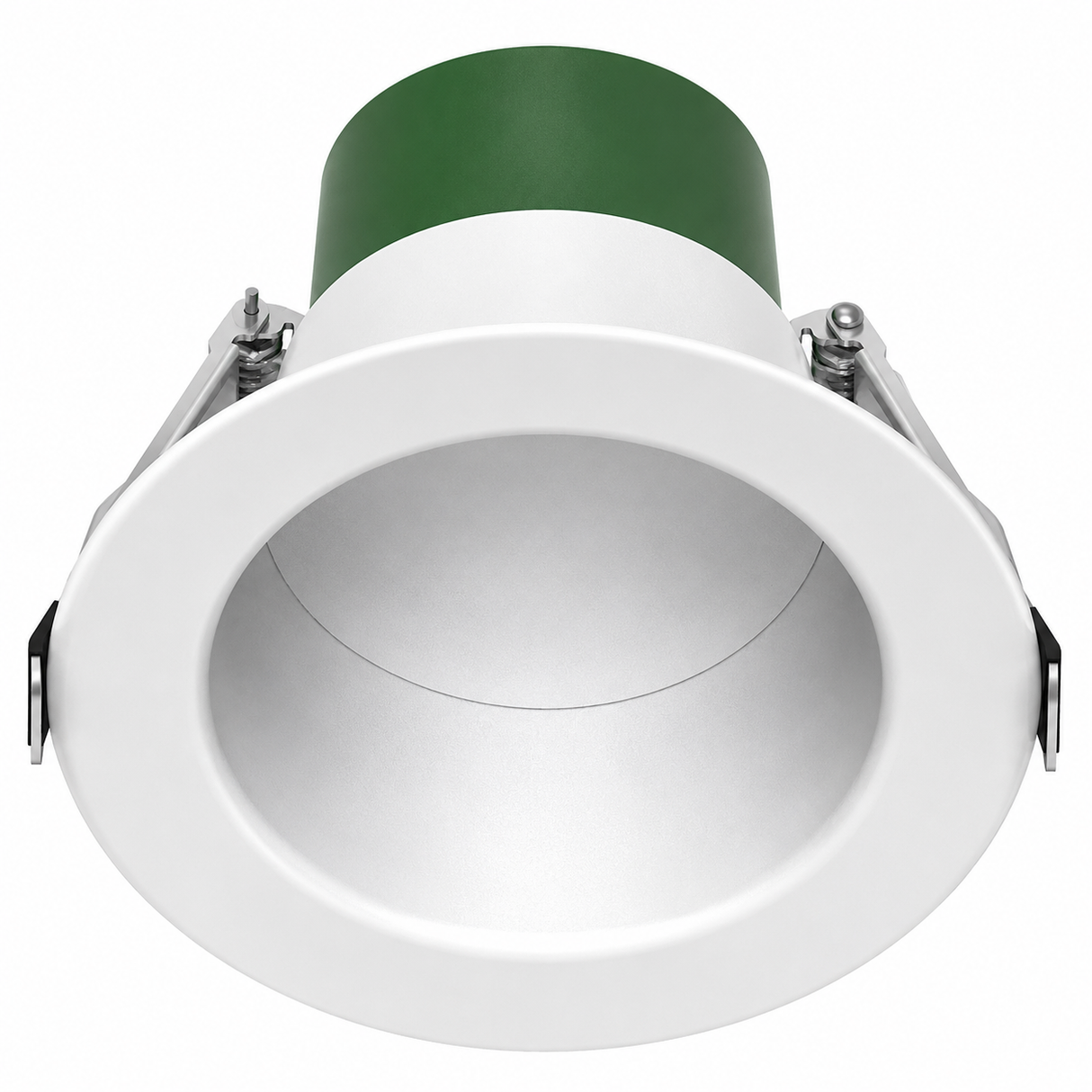

LEDONE DL0085 LOC-4DL-MW(5.5/8/12) MCCT(27/30/35/40/50)D 5.5/8/12W 4-Inch LED Commercial Down Light 2700K/3000K/3500K/4000K/5000K 120-277V

Identification & Application

LEDone DL0085 LOC-4DL-MW(5.5/8/12)MCCT(27/30/35/40/50)D 5.5W/8W/12W 4-Inch LED Commercial Down Light 2700K/3000K/3500K/4000K/5000K 120-277V

The LEDone LOC-4DL-MW(5.5/8/12)MCCT(27/30/35/40/50)D is a commercial-grade 4-inch LED downlight featuring field-selectable wattages of 5.5W, 8W, and 12W along with five selectable color temperatures of 2700K, 3000K, 3500K, 4000K, and 5000K. Designed for universal 120-277VAC operation, this versatile fixture allows installers to customize both brightness and color temperature on-site while delivering up to 1,000 lumens. It is ideal for kitchens, bedrooms, bathrooms, corridors, hallways, museums, offices, retail spaces, schools, healthcare facilities, and other commercial interiors.

Constructed with a durable aluminum housing and lightweight aluminum heat sink for excellent thermal management, the downlight utilizes Lumiled LED chips to deliver uniform illumination through a 90° beam angle. The fixture supports smooth 0-10V dimming, provides outstanding color accuracy with a 95 CRI, and installs quickly using torsion spring clips. The Type IC-rated design allows direct contact with insulation, while the IP44 rating makes it suitable for damp indoor environments.

Built for dependable long-term performance, the LOC-4DL-MW(5.5/8/12)MCCT(27/30/35/40/50)D is rated for 50,000 hours of operation and is backed by a 5-year limited warranty. It is Energy Star certified, ETL Listed, Title 24 JA8 compliant, and IC Rated. The fixture is also compatible with the optional LOC-EMDR-25WHV emergency battery for enhanced emergency lighting capability.

Technical Performance Specifications
