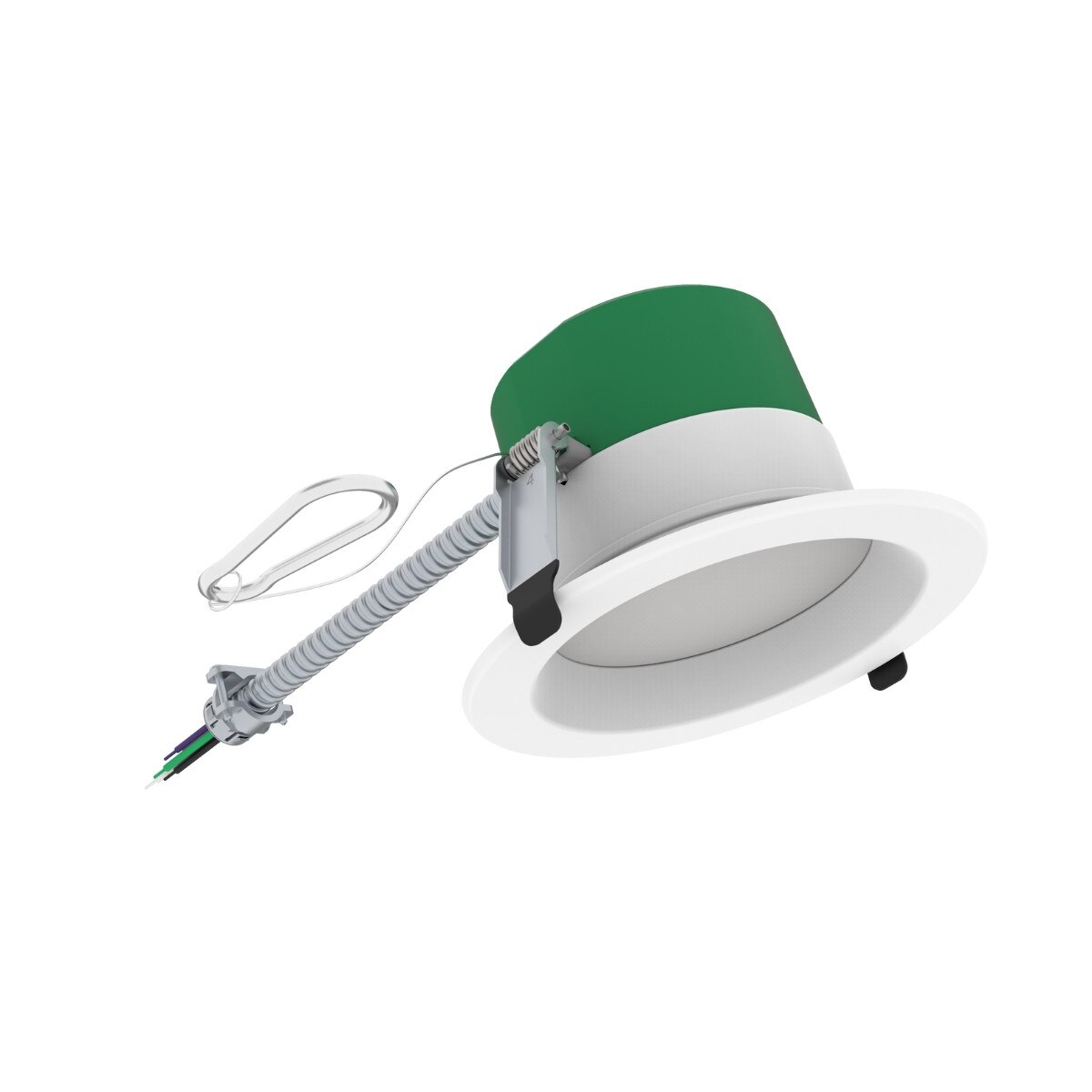

LEDONE DL0106 LOC-4CDL-MW13W5CCT 5.5/7/9/10/13W 4-Inch LED Tri-Pro Commercial Down Light 2700K/3000K/3500K/4000K/5000K 120-277V

Identification & Application

LEDone DL0106 LOC-4CDL-MW13W5CCT 5.5W/7W/9W/10W/13W 4-Inch LED Tri-Pro Commercial Down Light 2700K/3000K/3500K/4000K/5000K 120-277V

The LEDone LOC-4CDL-MW13W5CCT is a versatile 4-inch commercial LED downlight featuring five selectable wattages of 5.5W, 7W, 9W, 10W, and 13W along with five selectable color temperatures of 2700K, 3000K, 3500K, 4000K, and 5000K. Designed for universal 120-277VAC operation, this fixture allows installers to customize both light output and color temperature on-site while delivering up to 1,450 lumens. It is ideal for hotels, healthcare facilities, meeting rooms, corridors, hallways, museums, offices, retail stores, schools, and commercial buildings.

The Tri-Pro dimming driver supports 0-10V, TRIAC, and ELV dimming, providing outstanding compatibility across both commercial and residential control systems. Built with a white aluminum heat sink, optical polycarbonate diffuser, and aircraft cable safety support, the fixture delivers smooth, flicker-free illumination through a 90° beam angle while maintaining excellent color accuracy with a 90 CRI. The wet-location rated IP54 construction makes it suitable for damp and wet location installations.

Engineered for long-term reliability, the LOC-4CDL-MW13W5CCT is rated for 50,000 hours of operation and is backed by a 5-year limited warranty. It is Energy Star certified, ETL Listed, IC Rated, and compatible with the optional LOC-EMDR-25WHV emergency battery for emergency lighting applications.

Technical Performance Specifications
