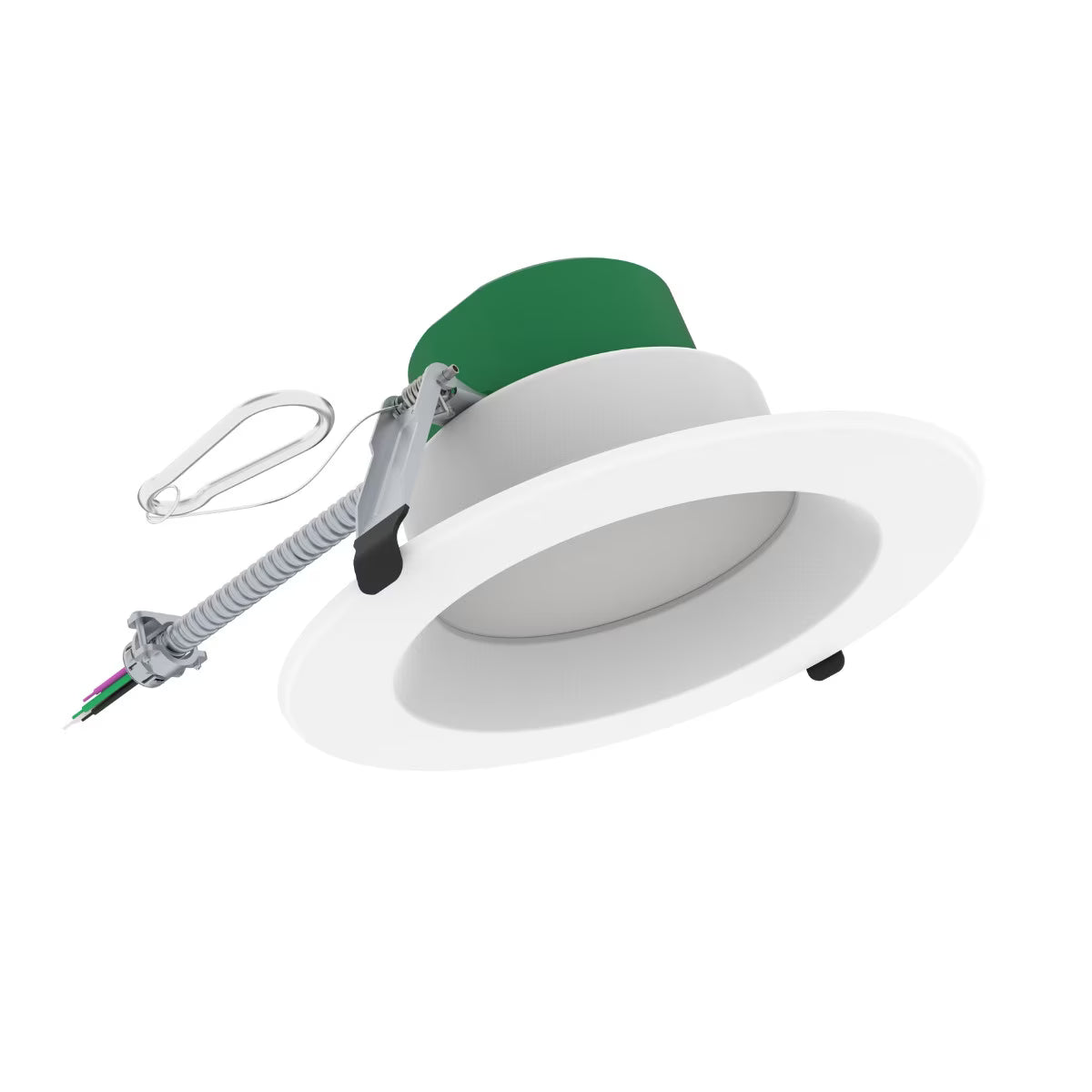

LEDONE DL0108 LOC-6CDL-MW32W5CCT-HO 20/23/27/29/32W 6-Inch LED Tri-Pro Commercial Down Light High Output 2700K/3000K/3500K/4000K/5000K 120-277V

Identification & Application

LEDone DL0108 LOC-6CDL-MW32W5CCT-HO 20W/23W/27W/29W/32W 6-Inch LED Tri-Pro Commercial Down Light High Output 2700K/3000K/3500K/4000K/5000K 120-277V

The LEDone LOC-6CDL-MW32W5CCT-HO is a high-output 6-inch commercial LED downlight featuring five selectable wattages of 20W, 23W, 27W, 29W, and 32W along with five selectable color temperatures of 2700K, 3000K, 3500K, 4000K, and 5000K. Designed for universal 120-277VAC operation, this fixture allows installers to customize both light output and color temperature on-site while delivering up to 4,000 lumens. It is ideal for hotels, healthcare facilities, offices, museums, meeting rooms, corridors, hallways, retail stores, schools, and other commercial environments.

The Tri-Pro driver supports 0-10V, TRIAC, and ELV dimming, providing excellent compatibility with a wide range of lighting control systems. Constructed with a white aluminum heat sink, optical polycarbonate diffuser, and aircraft cable secondary safety support, the fixture produces smooth, flicker-free illumination through a 90° beam angle while maintaining outstanding color quality with a 90 CRI. The High Output model is Type Non-IC Rated and features an IP54 wet-location rating for dependable indoor installations.

Built for long-term commercial performance, the LOC-6CDL-MW32W5CCT-HO is rated for 50,000 hours of operation and includes a 5-year limited warranty. It is Energy Star certified, ETL Listed, and compatible with the optional LOC-EMDR-25WHV emergency battery, making it an excellent solution for both new construction and retrofit applications.

Technical Performance Specifications
