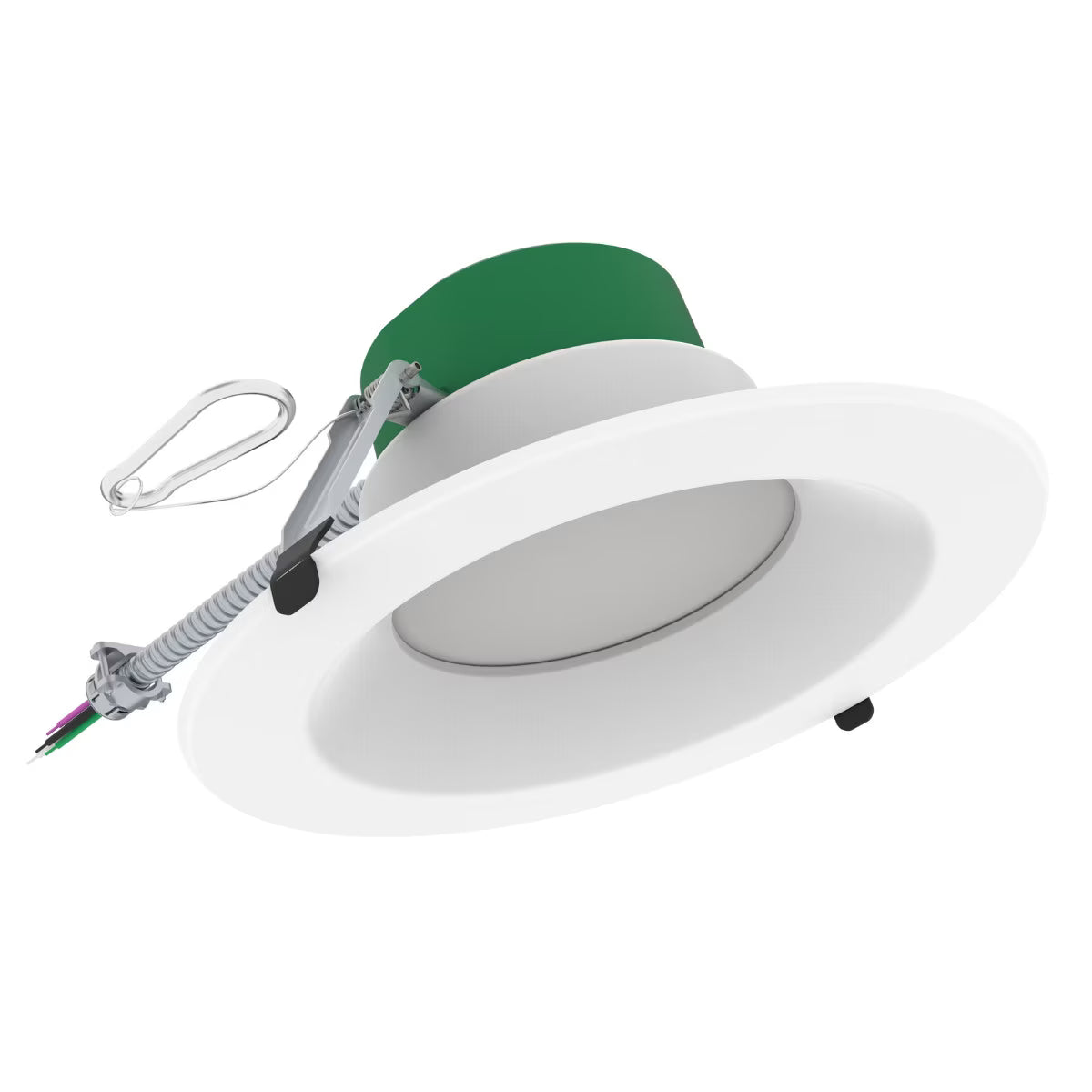

LEDONE DL0109 LOC-8CDL-MW30W5CCT 16/20/23/27/30W 8-Inch LED Tri-Pro Commercial Down Light 2700K/3000K/3500K/4000K/5000K 120-277V

Identification & Application

LEDone DL0109 LOC-8CDL-MW30W5CCT 16W/20W/23W/27W/30W 8-Inch LED Tri-Pro Commercial Down Light 2700K/3000K/3500K/4000K/5000K 120-277V

The LEDone LOC-8CDL-MW30W5CCT is a versatile 8-inch commercial LED downlight featuring five selectable wattages of 16W, 20W, 23W, 27W, and 30W along with five selectable color temperatures of 2700K, 3000K, 3500K, 4000K, and 5000K. Designed for universal 120-277VAC operation, this fixture allows installers to customize both light output and color temperature on-site while delivering up to 3,200 lumens. It is ideal for hotels, healthcare facilities, meeting rooms, corridors, hallways, museums, offices, retail stores, schools, and commercial buildings.

The Tri-Pro dimming driver supports 0-10V, TRIAC, and ELV dimming, providing exceptional compatibility across commercial and residential lighting control systems. Constructed with a white aluminum heat sink, optical polycarbonate diffuser, and aircraft cable safety support, the fixture delivers smooth, flicker-free illumination through a 90° beam angle while maintaining excellent color accuracy with a 90 CRI. Its IP54 wet-location rating makes it suitable for both damp and wet location installations.

Engineered for dependable long-term performance, the LOC-8CDL-MW30W5CCT is rated for 50,000 hours of operation and is backed by a 5-year limited warranty. It is Energy Star certified, ETL Listed, IC Rated, and compatible with the optional LOC-EMDR-25WHV emergency battery for emergency lighting applications, making it an excellent choice for commercial new construction and retrofit projects.

Technical Performance Specifications
