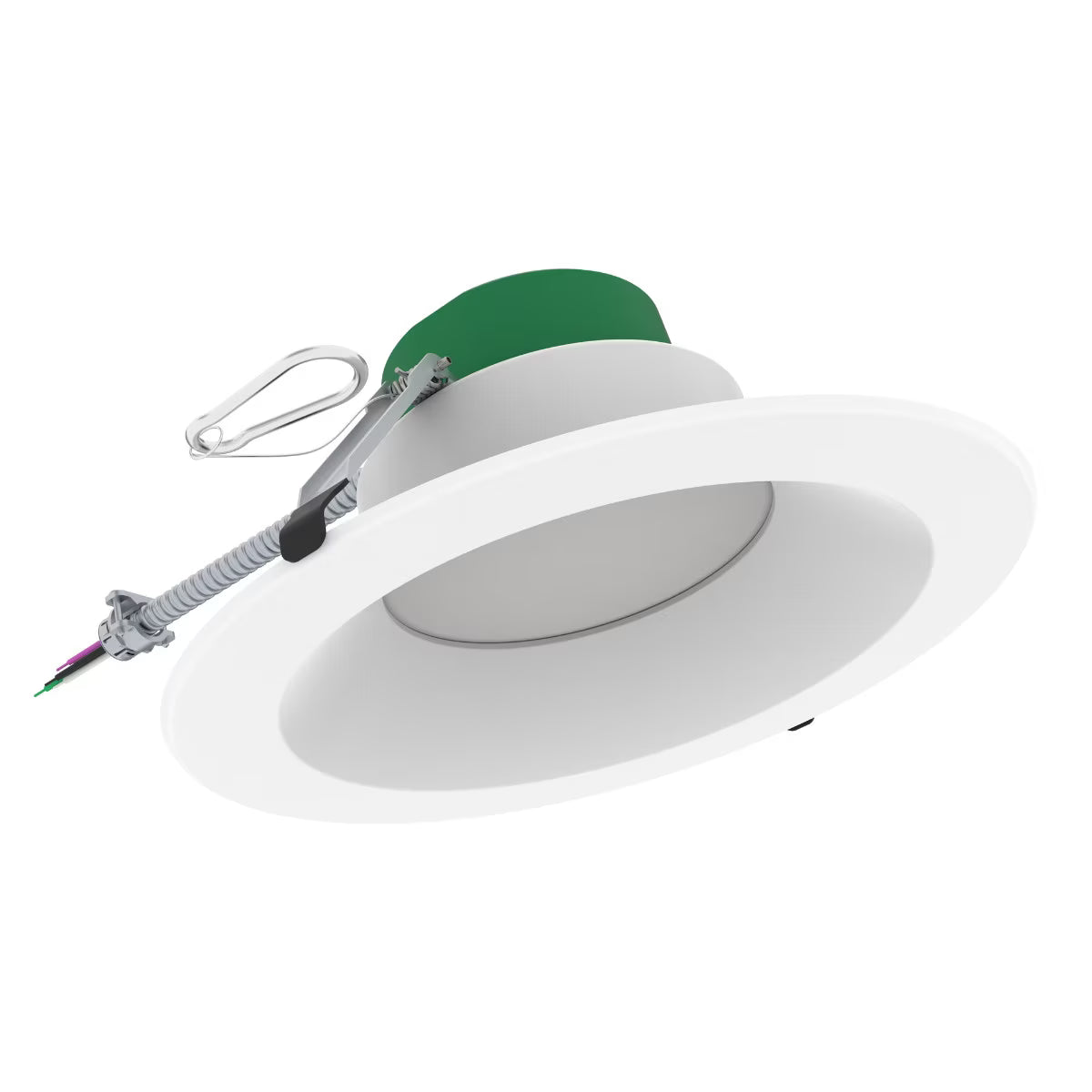

LEDONE DL0111 LOC-10CDL-MW38W5CCT 20/24/28/32/38W 10-Inch LED Tri-Pro Commercial Down Light 2700K/3000K/3500K/4000K/5000K 120-277V

Identification & Application

LEDone DL0111 LOC-10CDL-MW38W5CCT 20W/24W/28W/32W/38W 10-Inch LED Tri-Pro Commercial Down Light 2700K/3000K/3500K/4000K/5000K 120-277V

The LEDone LOC-10CDL-MW38W5CCT is a versatile 10-inch commercial LED downlight featuring five selectable wattages of 20W, 24W, 28W, 32W, and 38W along with five selectable color temperatures of 2700K, 3000K, 3500K, 4000K, and 5000K. Designed for universal 120-277VAC operation, this fixture allows installers to customize both light output and color temperature on-site while delivering up to 4,150 lumens. It is ideal for offices, healthcare facilities, hotels, museums, schools, retail stores, conference rooms, and other commercial applications requiring high-performance recessed lighting.

The Tri-Pro dimming driver supports 0-10V, TRIAC, and ELV dimming, providing exceptional compatibility across commercial and residential lighting control systems. Constructed with a white aluminum heat sink, optical polycarbonate diffuser, and aircraft cable safety support, the fixture delivers smooth, flicker-free illumination through a 90° beam angle while maintaining excellent color accuracy with a 90 CRI. The fixture is Type IC rated and carries an IP54 wet-location rating for dependable performance in damp and wet environments.

Engineered for long-term reliability, the LOC-10CDL-MW38W5CCT is rated for 50,000 hours of operation and is backed by a 5-year limited warranty. It is ENERGY STAR® certified, ETL Listed, IC Rated, and compatible with the optional LOC-EMDR-25WHV emergency battery for emergency lighting applications, making it an excellent choice for commercial new construction and retrofit projects.

Technical Performance Specifications
