LEDONE DR0056 LOD-EXTED-M20W 20W LED Emergency Driver 120-277V

Identification & Application

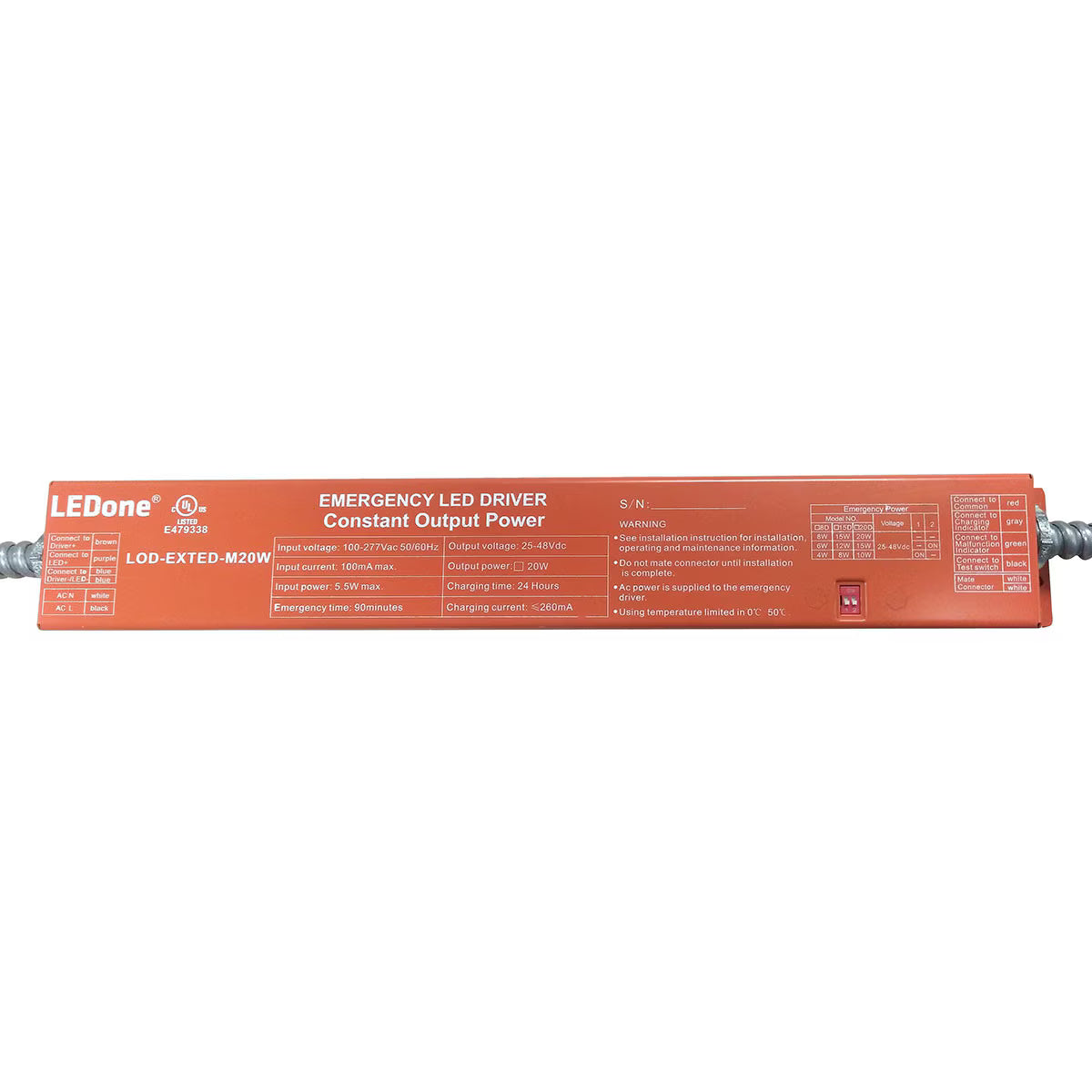

LEDone DR0056 LOD-EXTED-M20W 20W LED Emergency Driver 120-277V

The LEDone LOD-EXTED-M20W is a high-performance LED emergency driver designed to provide dependable emergency illumination for compatible LED fixtures during power outages. Operating from a 120-277VAC input, this emergency driver automatically transfers connected luminaires into emergency mode, delivering adjustable constant emergency output up to 20 watts while maintaining critical lighting for a minimum of 90 minutes. It is an excellent solution for commercial offices, schools, hospitals, warehouses, retail facilities, and institutional applications.

Featuring selectable emergency output levels of 10W, 15W, or 20W, the LOD-EXTED-M20W provides installation flexibility for a wide range of LED fixtures. The integrated Ni-MH battery, constant output design, and LVLE-compliant output ensure reliable emergency performance, while built-in over-voltage, low-voltage, over-temperature, and short-circuit protection help maximize system safety and longevity.

Listed to UL924 and tested to CSA C22.2 No. 141 standards, the emergency driver includes an illuminated test button for convenient system testing and charging status indication. With a 24-hour recharge time, field or factory installation capability, optional T-bar mounting kit, and a 5-year limited warranty, the LOD-EXTED-M20W is a dependable emergency backup solution for commercial lighting systems.
