LEDONE DR0096 LOC-EMDR-18W-AC-C 18W 2-Piece LED Emergency Driver 120-347V

Identification & Application

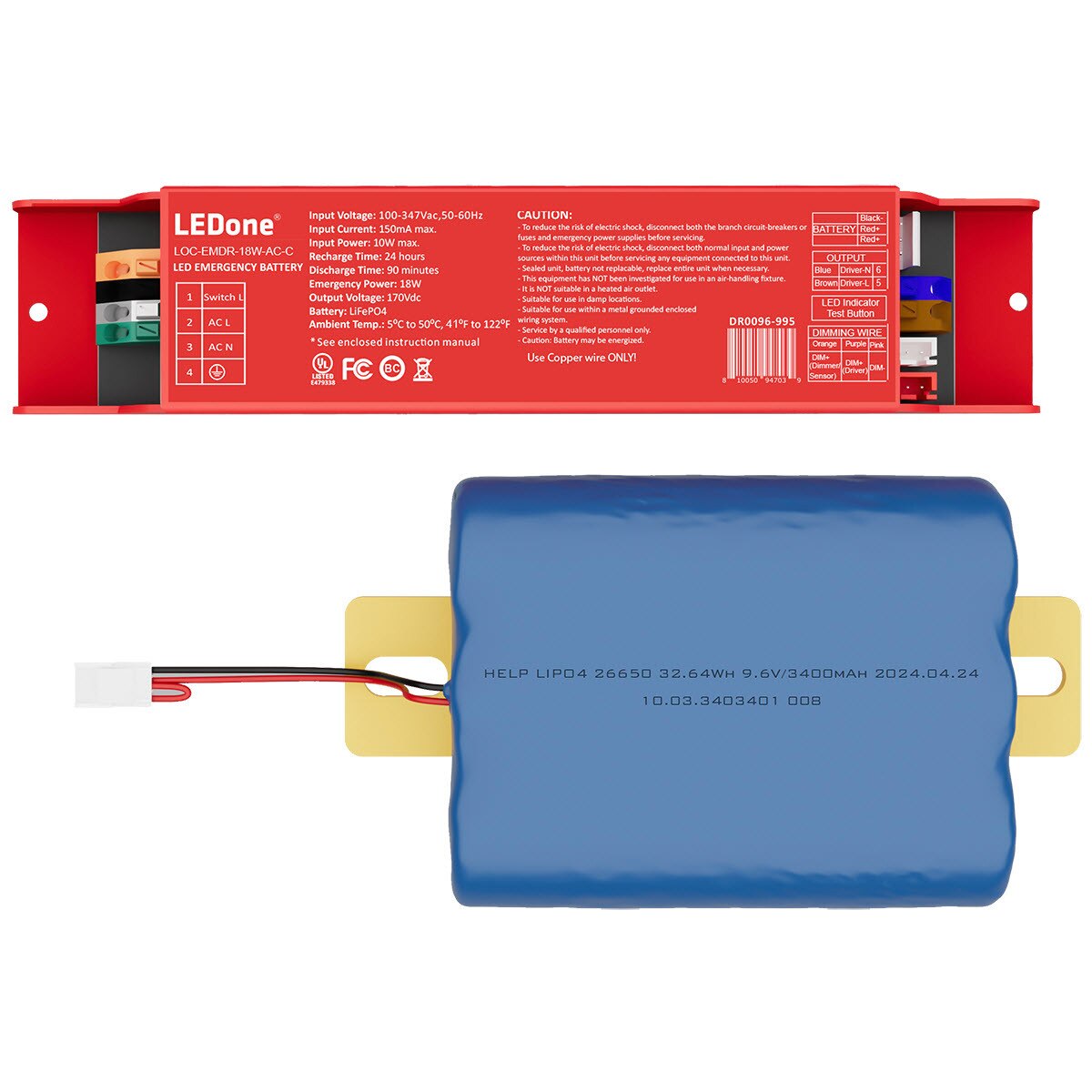

LEDone DR0096 LOC-EMDR-18W-AC-C 18W 2-Piece LED Emergency Driver 120-347V

The LEDone LOC-EMDR-18W-AC-C is a high-performance 2-piece LED emergency driver designed to provide dependable emergency illumination for compatible LED fixtures during power outages. Operating from a wide 100-347VAC input, the emergency driver automatically transfers connected luminaires into emergency mode, delivering constant 18-watt emergency output for up to 90 minutes to satisfy life safety lighting requirements. Its compact two-piece design allows for both factory and field installation, making it an ideal solution for commercial offices, schools, hospitals, warehouses, retail facilities, and institutional buildings.

Engineered for reliable long-term operation, the LOC-EMDR-18W-AC-C features intelligent self-testing that automatically performs monthly 30-second diagnostic tests and annual 90-minute discharge tests in accordance with NFPA 101 Life Safety Code requirements. The integrated Li-ion/LiFePO4 battery includes over-temperature, over-charge, and over-discharge protection, while built-in malfunction indication and 3kV line-to-neutral surge protection provide enhanced reliability and simplified maintenance.

Designed for energy-efficient operation, the emergency driver delivers constant output power with low energy consumption and CEC compliance. UL924 listed and tested to CSA C22.2 No. 141 standards, the LOC-EMDR-18W-AC-C offers dependable emergency lighting performance backed by a 5-year limited warranty for demanding commercial applications.

Technical Performance Specifications
