LEDONE DR0101 LOC-EMDR-16WLI-170SD 17W 2-Piece LED Emergency Driver 120-277V

Identification & Application

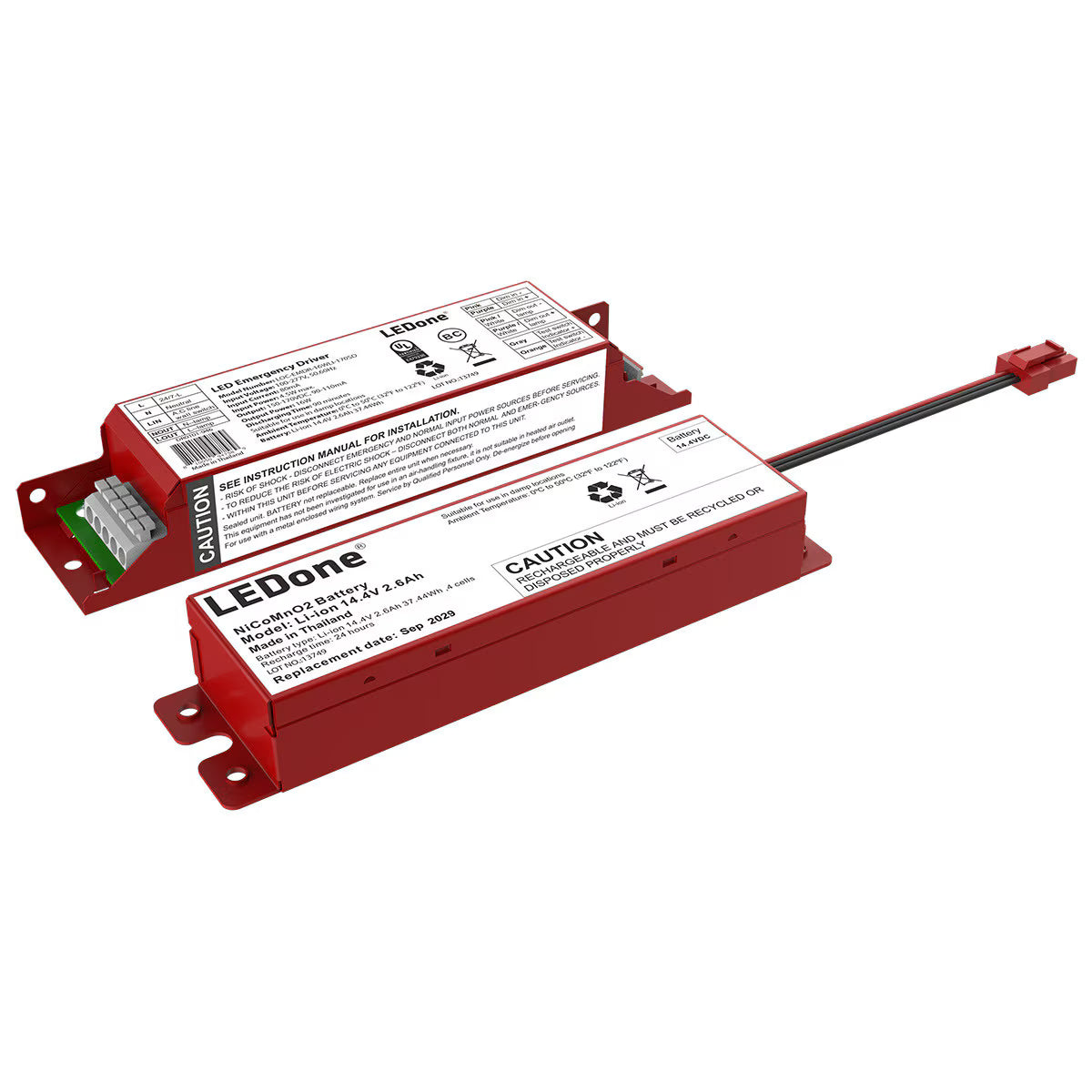

LEDone DR0101 LOC-EMDR-16WLI-170SD 17W 2-Piece LED Emergency Driver 120-277V

The LEDone LOC-EMDR-16WLI-170SD is a high-performance 2-piece LED emergency driver designed to provide reliable emergency illumination for compatible LED fixtures during power outages. Operating from a 100-277VAC input, the emergency driver automatically transfers connected luminaires into emergency mode, delivering constant emergency power while maintaining compliance with life safety lighting requirements. Its compact two-piece design allows for both factory and field installation, making it ideal for commercial offices, schools, healthcare facilities, retail spaces, warehouses, and institutional buildings.

Designed for dependable long-term operation, the LOC-EMDR-16WLI-170SD features an intelligent initial functional self-check that automatically verifies compatibility with the connected LED load, including lamp starting current, startup time, dimming voltage, and dimming slope. A built-in high-power AC relay seamlessly controls normal driver operation, while comprehensive protection circuitry guards against input overcurrent, output overvoltage, output undercurrent, short circuits, and overheating for enhanced system reliability.

The emergency driver utilizes a long-life lithium-ion battery with low energy consumption and CEC Title 20 compliance. Additional features such as rest mode for extended battery storage, fault reset capability, UL listing for damp locations, and a 5-year limited warranty make the LOC-EMDR-16WLI-170SD an excellent emergency lighting solution for demanding commercial installations.

Technical Performance Specifications
