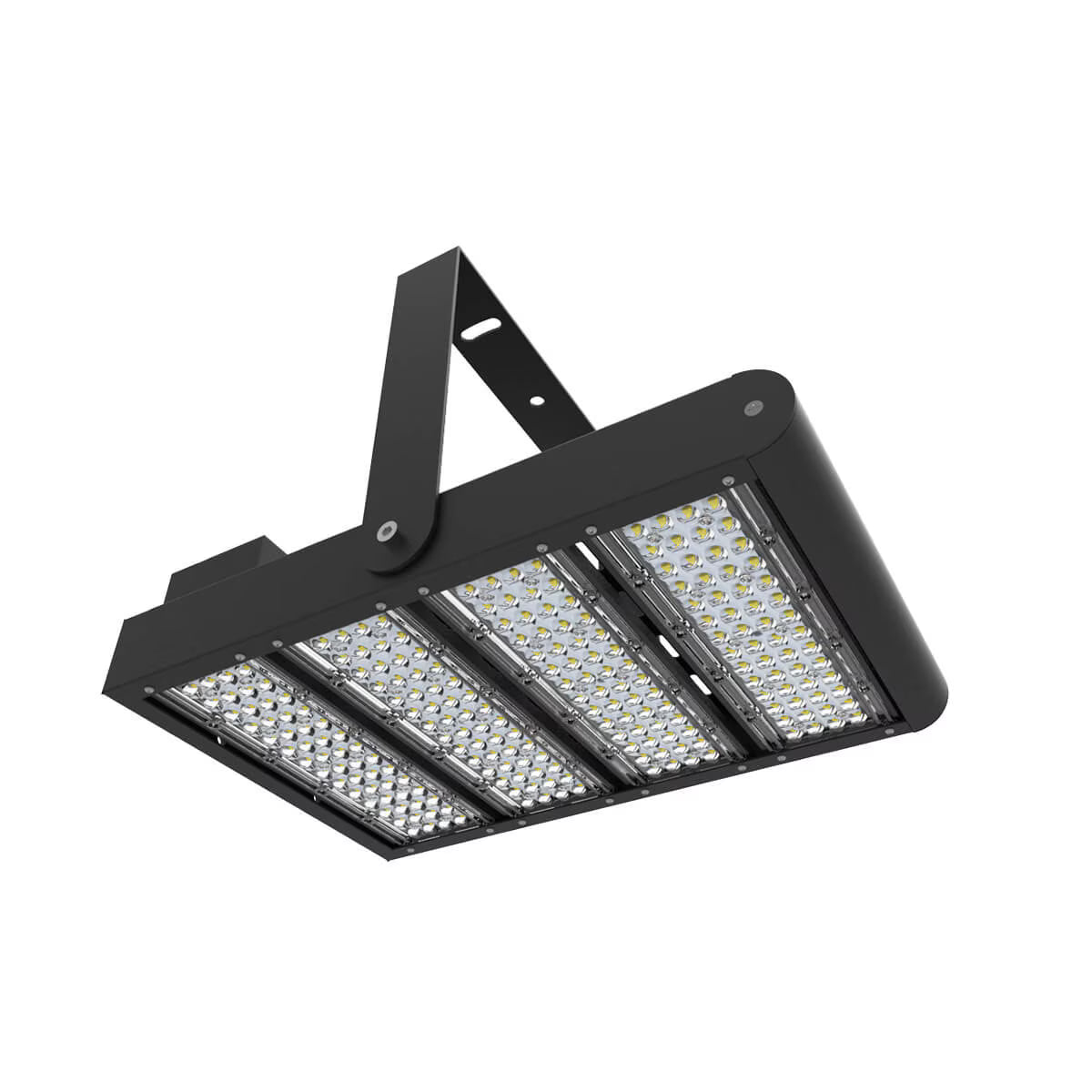

LEDONE FL0037 LOD-MSL-SF200W-50KD HV 200W LED Flood/High Bay/Stadium Light Fixture 5000K with Photocell 277-480V

Identification & Application

LEDone FL0037 LOD-MSL-SF200W-50KD HV 200W LED Flood/High Bay/Stadium Light Fixture 5000K with Photocell 277-480V

The LEDone LOD-MSL-SF200W-50KD HV with integrated photocell is a high-voltage modular LED flood light engineered for automatic dusk-to-dawn operation in demanding commercial, industrial, and sports lighting applications. Producing 28,000 lumens of crisp 5000K daylight while consuming only 200 watts, this fixture provides an energy-efficient replacement for traditional 500W HID lighting in stadiums, parking lots, warehouses, manufacturing facilities, ports, airports, and large-area security lighting powered by 277-480V electrical systems.

Constructed with a rugged heavy-duty die-cast aluminum housing, premium tempered glass optics, and a durable polyester powder-coated finish, the LOD-MSL-SF200W-50KD HV is built to withstand harsh outdoor environments. Premium Philips Lumileds 3030 LED chips deliver exceptional illumination through a wide 135° × 70° beam angle, while the integrated photocell automatically turns the fixture on at dusk and off at dawn to reduce energy consumption and provide dependable hands-free operation.

Designed for long-term commercial reliability, this high-voltage fixture features smooth 0-10V dimming, an IP66-rated enclosure for superior protection against dust, moisture, and corrosion, and a 50,000-hour rated LED lifespan. The adjustable mounting bracket allows versatile installation for flood lighting, stadium lighting, high bay applications, high mast lighting, and large outdoor lighting projects, making it an ideal solution for facilities utilizing 277-480V power distribution.

Technical Performance Specifications
