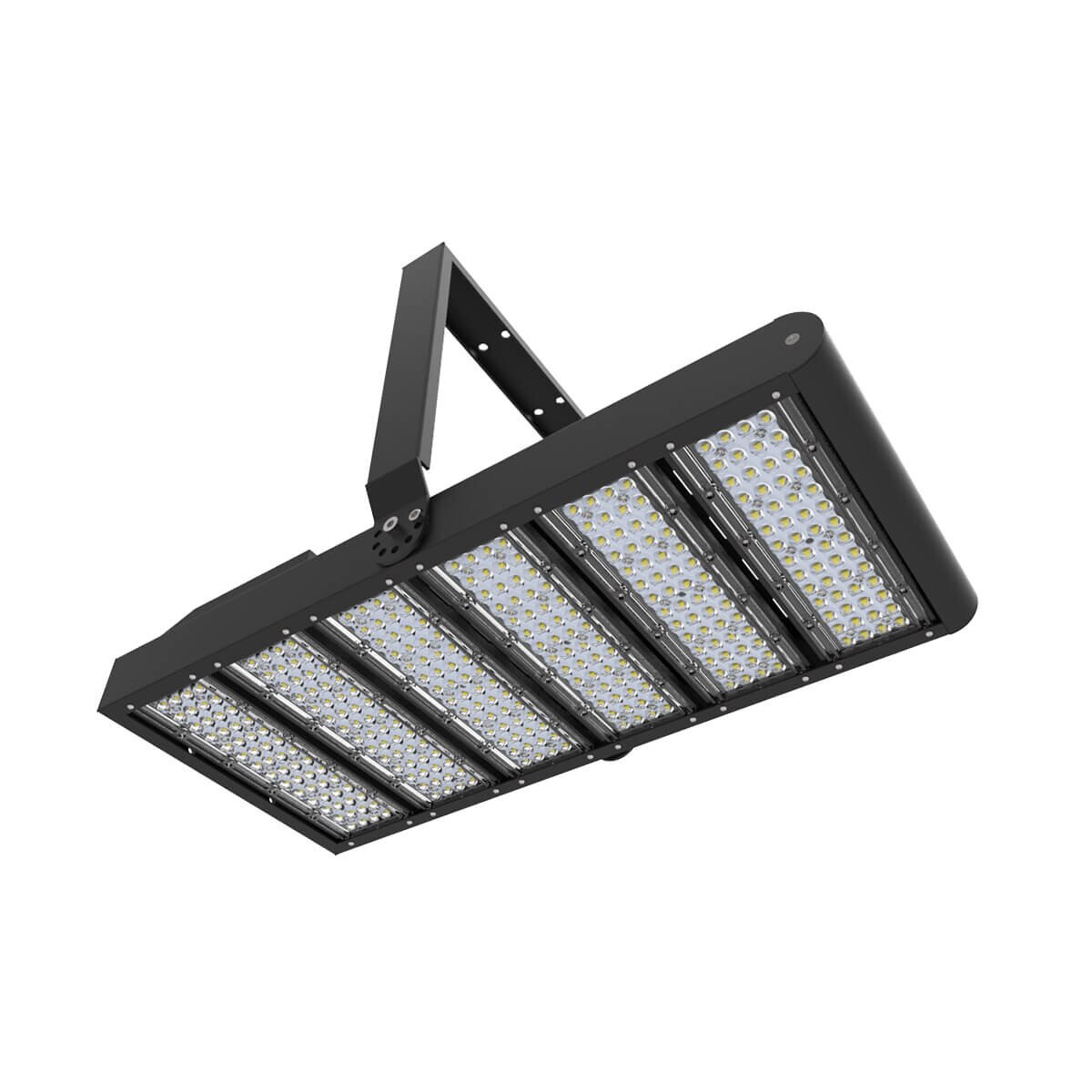

LEDONE FL0039 LOD-MSL-SF300W-50KD HV 300W LED Flood/High Bay/Stadium Light Fixture 5000K with Photocell 277-480V

Identification & Application

LEDone FL0039 LOD-MSL-SF300W-50KD HV 300W LED Flood/High Bay/Stadium Light Fixture 5000K with Photocell 277-480V

The LEDone LOD-MSL-SF300W-50KD HV with integrated photocell is a high-voltage modular LED flood light engineered for automatic dusk-to-dawn operation in demanding commercial, industrial, and sports lighting applications. Delivering 42,000 lumens of crisp 5000K daylight while consuming only 300 watts, this fixture provides an energy-efficient replacement for traditional 600W HID lighting used in stadiums, airports, ports, manufacturing facilities, parking lots, warehouses, and expansive outdoor security lighting powered by 277-480V electrical systems.

Built with a rugged heavy-duty die-cast aluminum housing, premium tempered glass optics, and a durable polyester powder-coated finish, the LOD-MSL-SF300W-50KD HV is designed to withstand harsh environmental conditions. Premium Philips Lumileds 3030 LED chips deliver exceptional illumination through a wide 135° × 70° beam angle, while the integrated photocell automatically switches the fixture on at dusk and off at dawn to maximize energy savings and minimize maintenance.

Designed for long-term commercial reliability, this high-voltage fixture features smooth 0-10V dimming, an IP66-rated enclosure for superior protection against dust and moisture, and a 50,000-hour rated LED lifespan. The adjustable mounting bracket provides flexible installation for flood lighting, stadium lighting, high bay applications, high mast lighting, and large-area illumination, making it an excellent solution for facilities operating on 277-480V power systems.

Technical Performance Specifications
