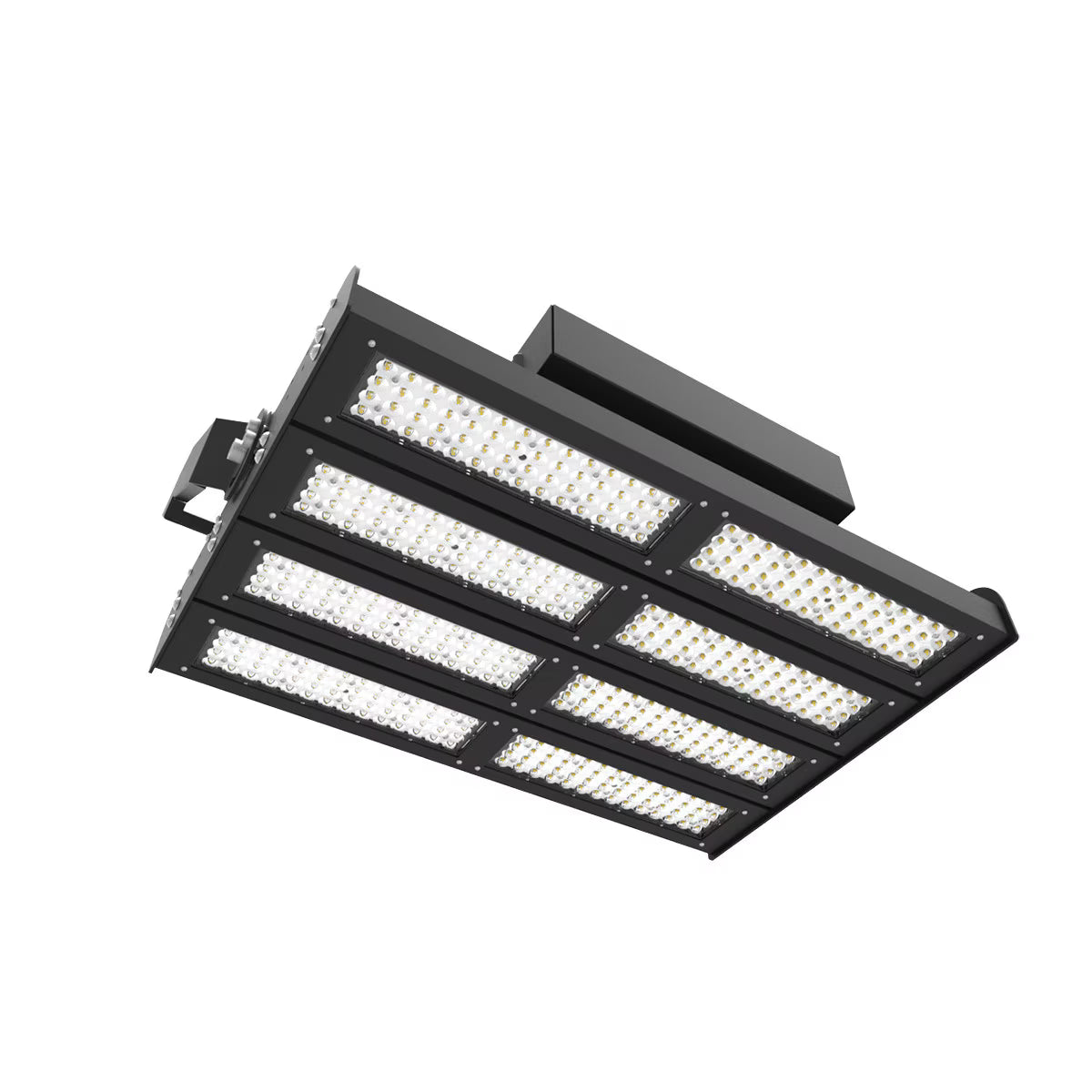

LEDONE FL0043 LOD-MSL-SF500W-50KD HV 500W LED Flood/High Bay/Stadium Light Fixture 5000K with Photocell 277-480V

Identification & Application

LEDone FL0043 LOD-MSL-SF500W-50KD HV 500W LED Flood/High Bay/Stadium Light Fixture 5000K with Photocell 277-480V

The LEDone LOD-MSL-SF500W-50KD HV with integrated photocell is a high-voltage modular LED flood light engineered for automatic dusk-to-dawn operation in demanding commercial, industrial, and sports lighting applications. Delivering 60,000 lumens of crisp 5000K daylight while consuming only 500 watts, this fixture provides an energy-efficient replacement for traditional 1,000W to 1,200W HID lighting used in stadiums, ports, airports, manufacturing facilities, parking lots, warehouses, and expansive outdoor security lighting operating on 277-480V electrical systems.

Constructed with a rugged heavy-duty die-cast aluminum housing, premium tempered glass optics, and a durable polyester powder-coated finish, the LOD-MSL-SF500W-50KD HV is built to withstand the harshest outdoor environments. Premium Philips Lumileds 3030 LED chips deliver powerful, uniform illumination through a wide 135° × 70° beam angle, while the integrated photocell automatically turns the fixture on at dusk and off at dawn to reduce energy consumption and eliminate manual switching.

Designed for long-term commercial reliability, this high-voltage fixture features smooth 0-10V dimming, an IP66-rated enclosure for superior protection against dust and moisture, and a 50,000-hour rated LED lifespan. The adjustable mounting bracket allows versatile installation for flood lighting, stadium lighting, high bay applications, high mast lighting, and large-area security lighting, making it an excellent solution for facilities utilizing 277-480V power distribution.

Technical Performance Specifications
