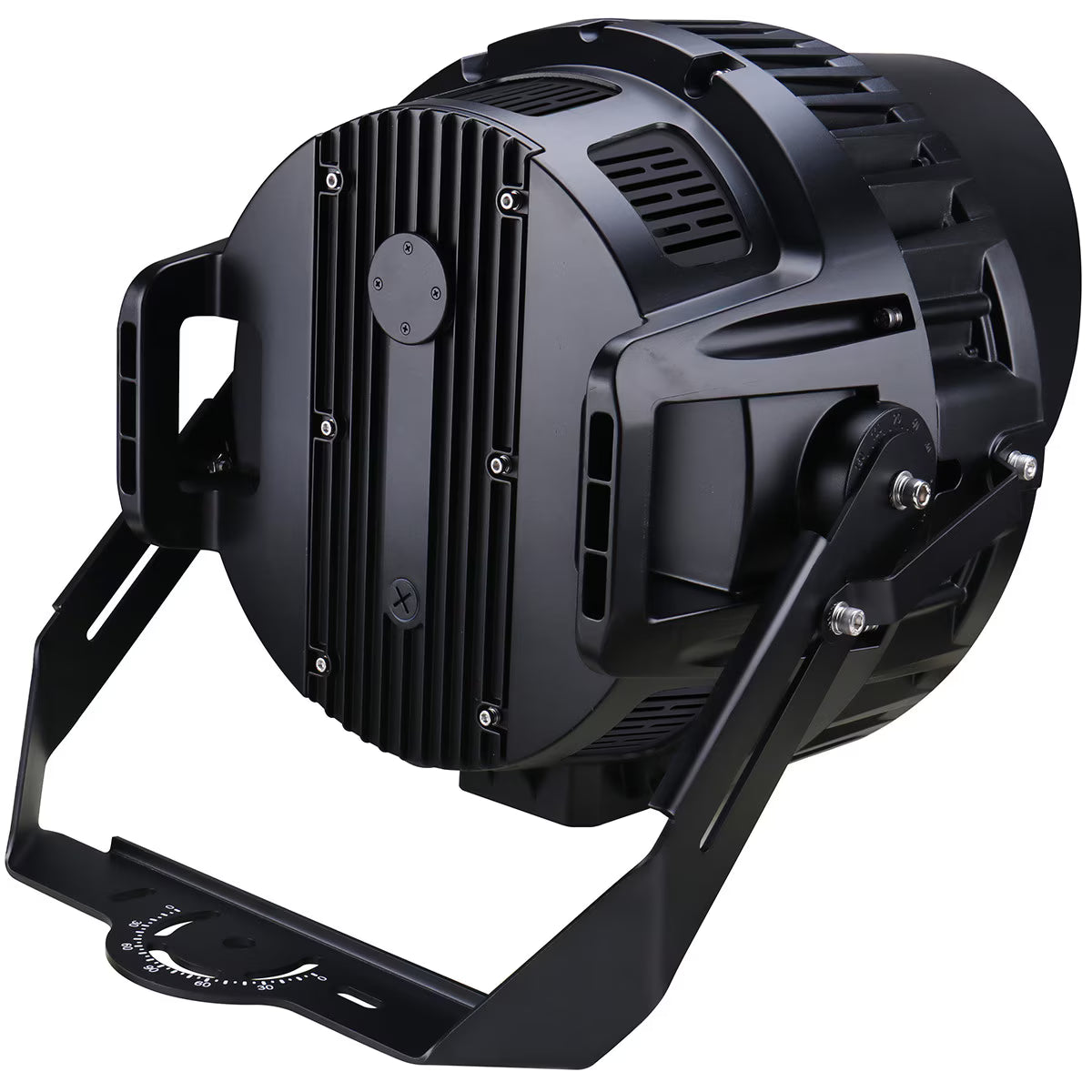

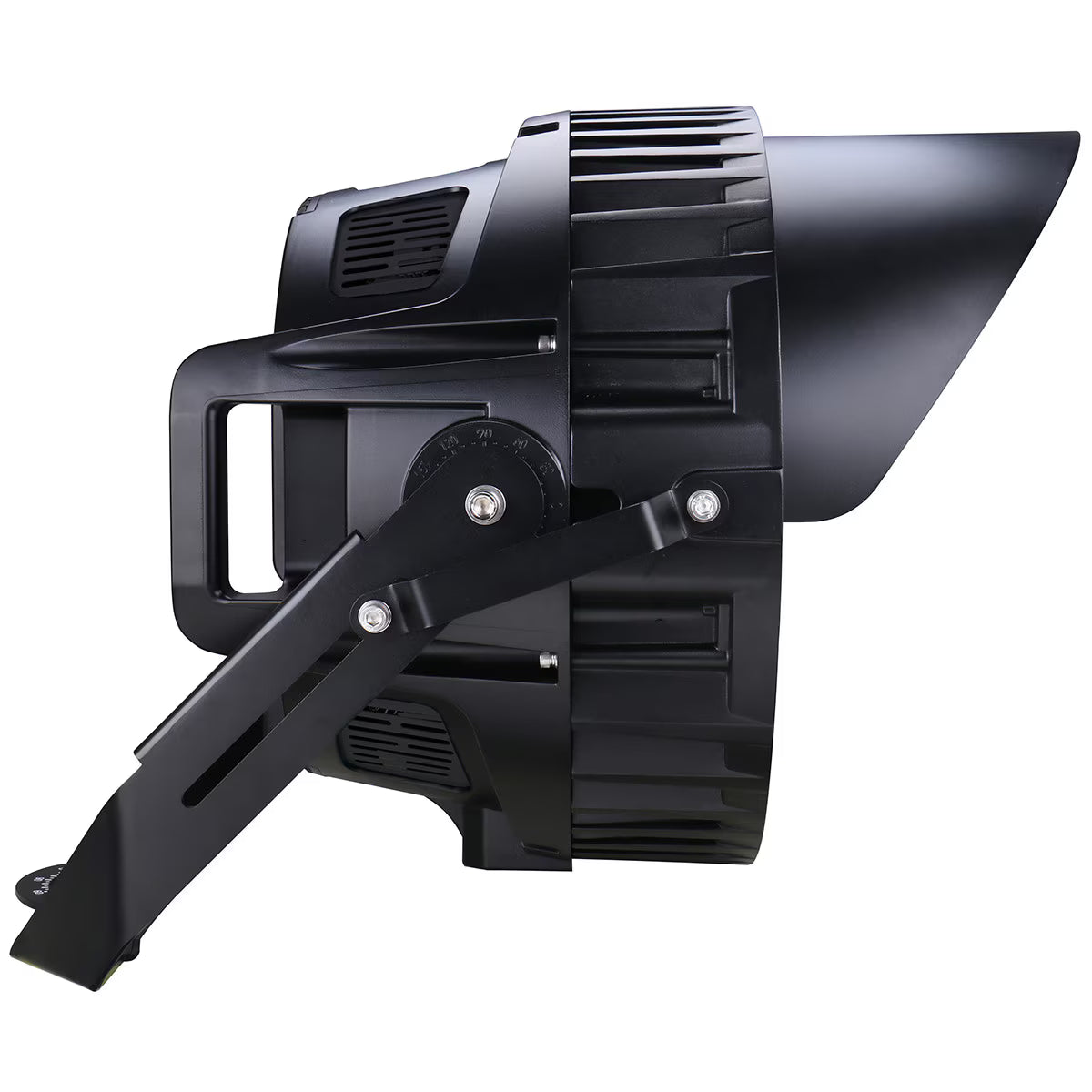

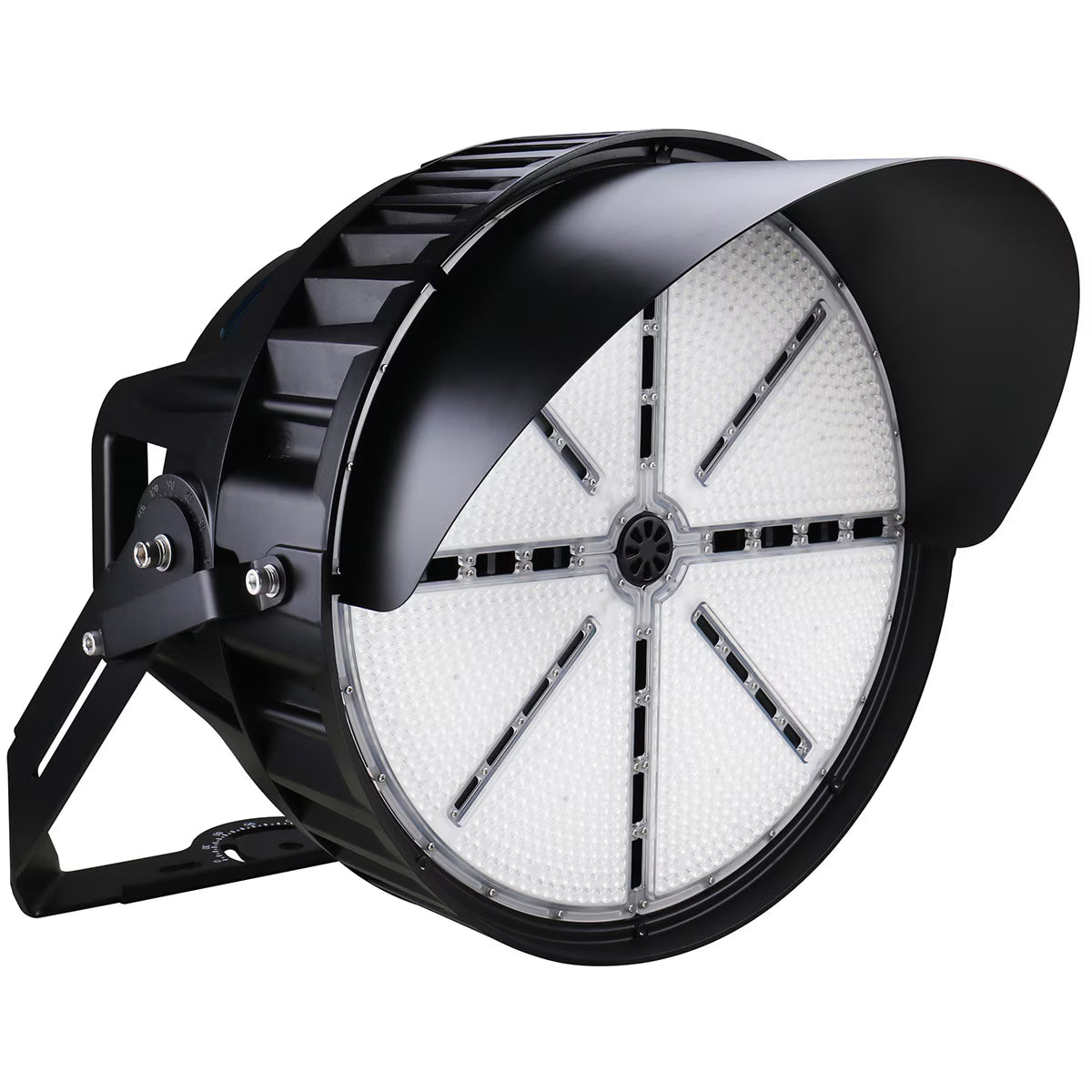

LEDONE FL0144 LOC-SP-MW(800/1000/1200)50K-LV 800/1000/1200/W LED Stadium Light Fixture 5000K Black Finish 120-277V

Identification & Application

LEDone FL0144 LOC-SP-MW(800/1000/1200)50K-LV 800W/1000W/1200W LED Stadium Light Fixture 5000K Black Finish 120-277V

The LEDone LOC-SP-MW(800/1000/1200)50K-LV is an ultra-high-output commercial LED stadium and sports light engineered to provide exceptional illumination for stadiums, athletic fields, warehouses, factories, parking lots, shopping centers, logistics facilities, and other large outdoor commercial environments. Featuring selectable 800W, 1000W, and 1200W power settings with a fixed 5000K daylight color temperature, this powerful fixture delivers outstanding lighting performance while maximizing energy efficiency. Producing up to 183,060 lumens with an efficacy of 152.55 lumens per watt, it is an ideal replacement for traditional high-wattage metal halide sports lighting.

Constructed with a heavy-duty die-cast aluminum alloy housing finished in durable black powder coating, the LOC-SP is built for long-term operation in demanding outdoor environments. Premium SMD 3030 LED chips, tempered glass optics, a precision 30° beam angle, and a NEMA 4 distribution pattern provide concentrated, uniform illumination for long-distance applications. The IP65-rated enclosure, standard 0-10V dimming, instant-on operation, and flicker-free performance deliver dependable lighting while minimizing maintenance requirements.

The fixture includes an adjustable mounting bracket for flexible aiming and installation, with an optional slip fitter and optional 60° lens available for specialized lighting applications. Backed by a 50,000-hour rated life, DLC Premium listing, UL certification, and a 5-year limited warranty, the LOC-SP-MW(800/1000/1200)50K-LV is an excellent solution for new construction and retrofit sports lighting projects.

Technical Performance Specifications
