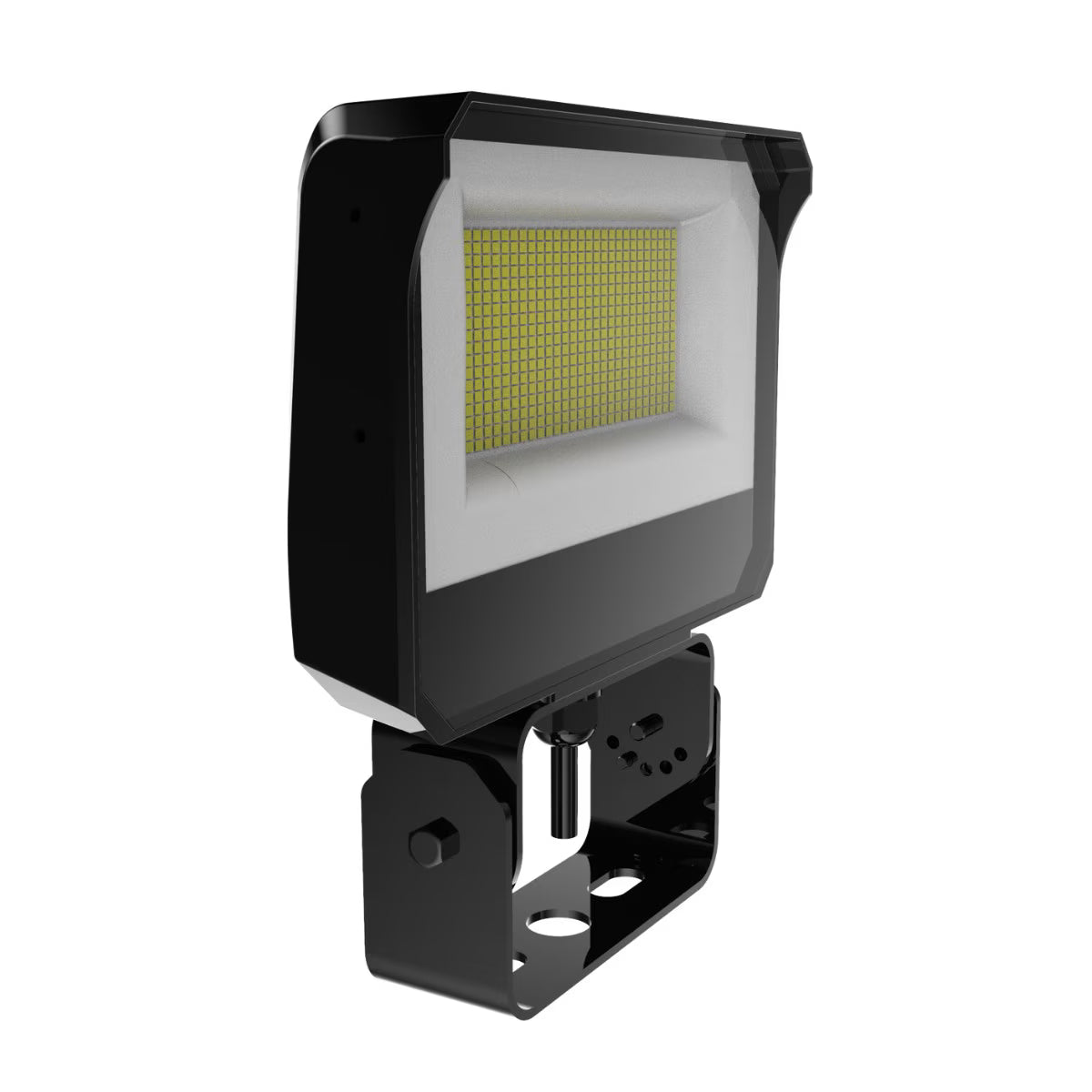

LEDONE FL0148 LOC-HKFL-MW35W3CCT-Trunnion 15/25/35W LED Flood Light Fixture 3000K/4000K/5000K Trunnion Mount 120-277V

Identification & Application

LEDone FL0148 LOC-HKFL-MW35W3CCT-Trunnion 15W/25W/35W LED Flood Light Fixture 3000K/4000K/5000K Trunnion Mount 120-277V

The LEDone LOC-HKFL-MW35W3CCT-Trunnion is a compact commercial-grade LED flood light designed to deliver precise, energy-efficient illumination for building exteriors, parking areas, landscapes, billboards, walkways, tunnels, and security lighting applications. Featuring selectable 15W, 25W, and 35W power settings along with selectable 3000K, 4000K, and 5000K color temperatures, this versatile fixture allows installers to tailor both light output and color temperature to meet project requirements. Producing up to 5,250 lumens with an efficacy of 150 lumens per watt, it provides an excellent replacement for traditional HID flood lights while reducing maintenance and energy costs.

Built with a durable die-cast aluminum housing and tempered glass lens, the LOC-HKFL is engineered for dependable outdoor performance. Premium Seoul LED chips produce consistent, high-quality illumination through a precise 7°H × 7°V beam angle for long-distance lighting applications. An integrated photocell with an external selector switch provides optional dusk-to-dawn operation, while standard 0-10V dimming and an IP66-rated enclosure ensure reliable operation in demanding commercial environments.

The heavy-duty adjustable trunnion mount allows for secure installation and precise aiming on walls, structures, and other flat mounting surfaces. Backed by a 50,000-hour rated life, DLC Premium listing, UL certification, and a 5-year limited warranty, the LOC-HKFL-MW35W3CCT-Trunnion is an ideal solution for both retrofit and new commercial lighting installations.

Technical Performance Specifications
