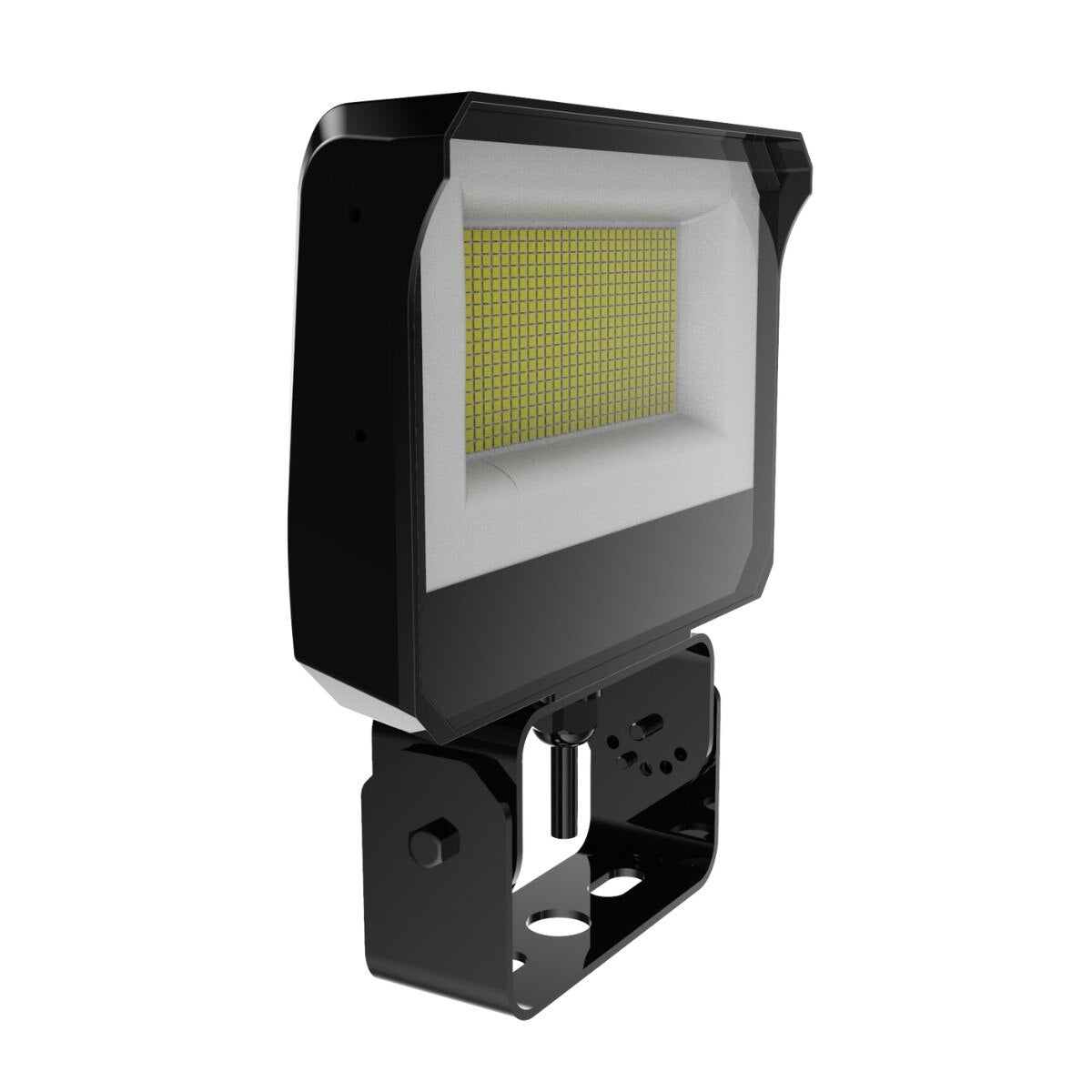

LEDONE FL0150 LOC-HKFL-MW60W3CCT-Trunnion 40/50/60W LED Flood Light Fixture 3000K/4000K/5000K Trunnion Mount 120-277V

Identification & Application

LEDone FL0150 LOC-HKFL-MW60W3CCT-Trunnion 40W/50W/60W LED Flood Light Fixture 3000K/4000K/5000K Trunnion Mount 120-277V

The LEDone LOC-HKFL-MW60W3CCT-Trunnion is a commercial-grade LED flood light engineered to provide powerful, energy-efficient illumination for parking areas, warehouses, building exteriors, billboards, landscapes, tunnels, walkways, and security lighting applications. Featuring selectable 40W, 50W, and 60W power settings together with selectable 3000K, 4000K, and 5000K color temperatures, this versatile fixture allows installers to customize both light output and color temperature from a single fixture. Producing up to 9,000 lumens with an efficacy of 150 lumens per watt, it delivers excellent performance while significantly reducing energy consumption and maintenance costs.

Constructed with a rugged die-cast aluminum housing and tempered glass lens, the LOC-HKFL is designed for dependable long-term operation in demanding outdoor environments. Premium Seoul LED chips provide consistent illumination through a narrow 7°H × 7°V beam angle, making the fixture ideal for precise architectural, signage, and security lighting applications. An integrated photocell with an external selector switch enables optional automatic dusk-to-dawn operation, while standard 0-10V dimming and an IP66-rated enclosure provide dependable performance in virtually any weather condition.

The heavy-duty adjustable trunnion mount allows secure installation and precise aiming on walls, structures, and other flat mounting surfaces. Backed by a 50,000-hour rated life, DLC Premium listing, UL certification, and a 5-year limited warranty, the LOC-HKFL-MW60W3CCT-Trunnion offers an ideal lighting solution for both commercial retrofit and new construction projects.

Technical Performance Specifications
