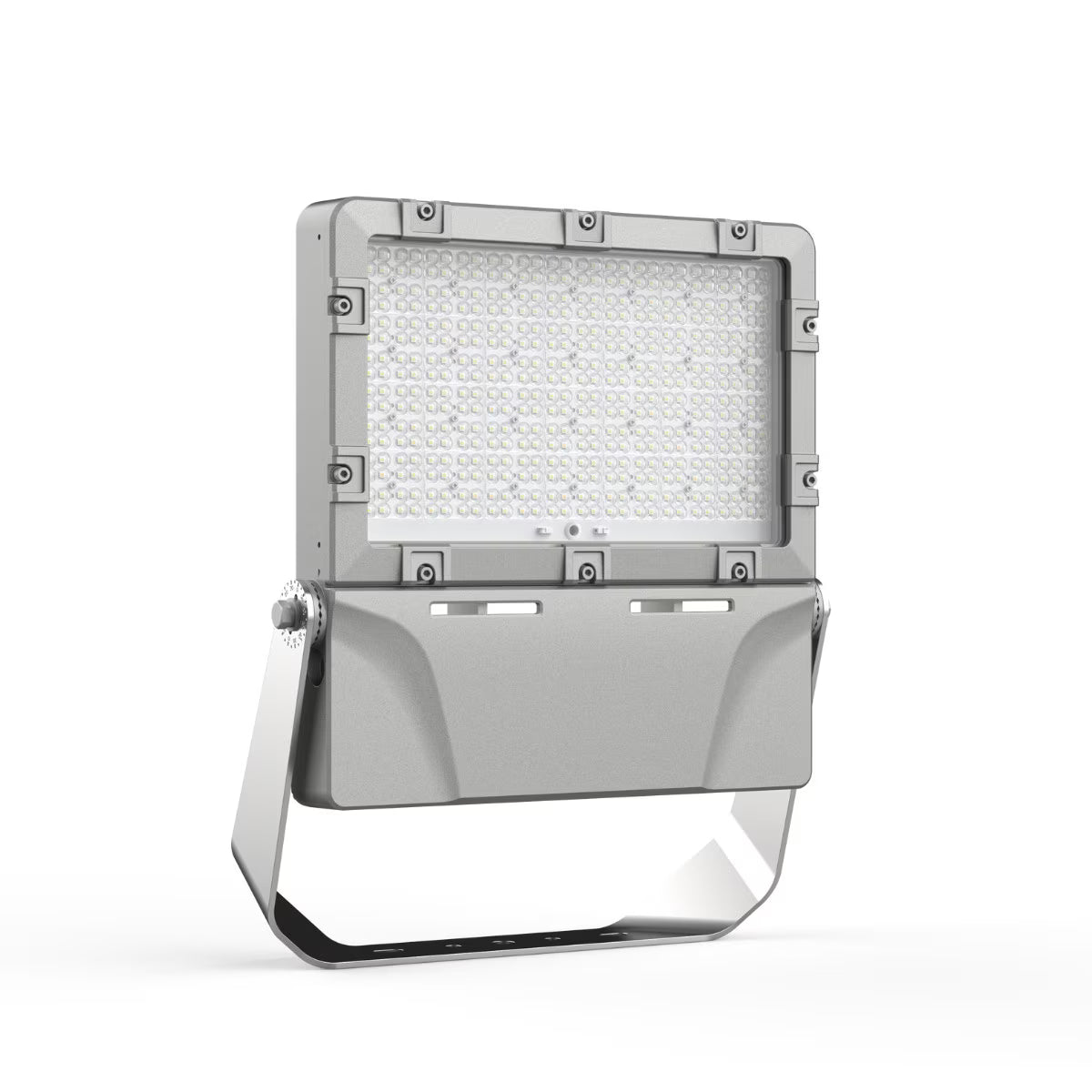

LEDONE FL0152 HA04-240-U-50-012-CG-B 240W LED Explosion-Proof Flood Light 5000K with Mounting Bracket 120-277V

Identification & Application

LEDone FL0152 HA04-240-U-50-012-CG-B 240W LED Explosion-Proof Flood Light 5000K with Mounting Bracket 120-277V

The LEDone FL0152 HA04-240-U-50-012-CG-B is a heavy-duty 240W LED explosion-proof flood light engineered for hazardous and demanding industrial environments where dependable illumination and safety are essential. Delivering up to 36,000 lumens at an efficacy of 150 lumens per watt, this fixture features a fixed 5000K daylight color temperature, 70 CRI, and a standard 146° beam angle for broad, uniform illumination. Designed for Class I, II, and III hazardous locations, it is an excellent lighting solution for warehouses, manufacturing facilities, petrochemical plants, refineries, marine facilities, shipyards, wastewater treatment plants, oil and gas facilities, power plants, chemical processing facilities, and other industrial environments requiring dependable hazardous location lighting.

Constructed with a heavy-duty die-cast aluminum alloy housing featuring low copper content and a marine-grade corrosion-resistant powder-coated finish, this explosion-proof flood light is built to withstand harsh industrial, offshore, and coastal environments. A high-impact polycarbonate optical lens provides excellent light transmission while eliminating UV and IR radiation within the beam. The fixture operates on 100-277VAC, 50/60Hz power using a high-efficiency constant current driver and supports 1-10V dimming from 10% to 100%. Additional performance features include a 0.9 power factor, 6kV line-to-line and 10kV line-to-earth surge protection, and standard adjustable bracket mounting for quick installation. A well-organized terminal block with dual cable entry points simplifies field wiring, while optional beam angles, CRI selections, color temperatures, and protective accessories provide added installation flexibility.

Designed for years of dependable operation, the HA04 Series provides an LED lifetime rated at L90 75,198 hours, L80 230,119 hours, and L70 378,051 hours under standard test conditions. Backed by a 5-year limited warranty, the fixture is certified for hazardous environments with UL844 Hazardous Location approval, Class I Division 2 Groups A, B, C, D, Class II Division 1 Groups E, F, G, Class II Division 2 Groups F, G, Class III, NEMA 4X, IP66, IK08, Wet Location, and Marine Rated certifications. Its T4 temperature classification, rugged corrosion-resistant construction, and long service life make it a reliable lighting solution for demanding industrial and hazardous location applications.

Technical Performance Specifications
