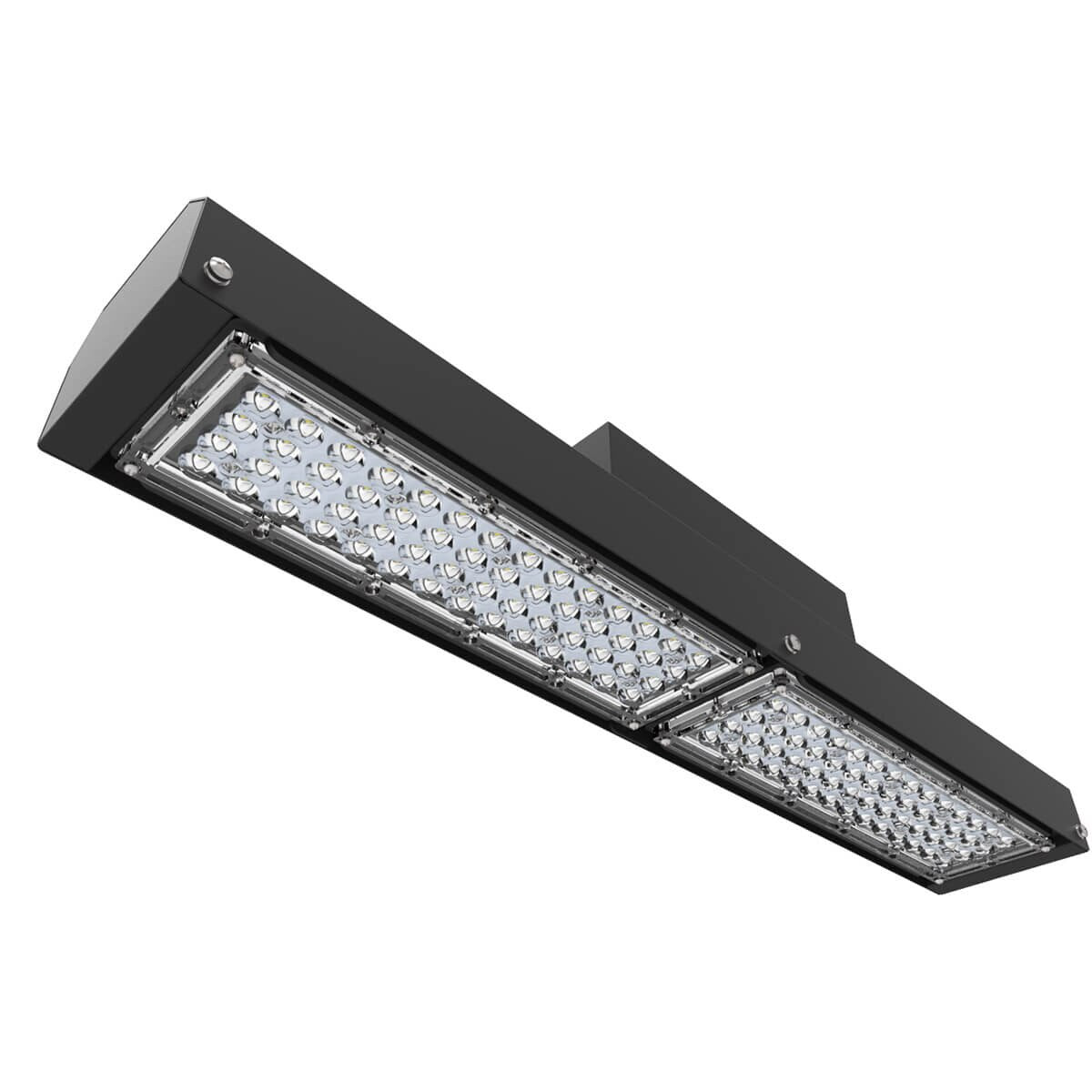

LEDONE HB0104 LOD-MSL-LHB100W-50K 100W LED 2ft Modular High Bay Fixture 5000K 120-277V

Identification & Application

LEDone HB0104 LOD-MSL-LHB100W-50K 100W LED 2ft Modular High Bay Fixture 5000K 120-277V

The LEDone HB0104 LOD-MSL-LHB100W-50K is a high-performance 2-foot LED modular high bay fixture engineered for commercial and industrial facilities requiring reliable, high-output illumination. Operating at 100 watts and producing 14,500 lumens with an outstanding efficacy of 145 lumens per watt, this fixture delivers crisp 5000K daylight illumination using premium Philips Lumileds 3030 LED chips. Its wide 110° beam angle provides uniform light distribution, making it ideal for warehouses, manufacturing facilities, distribution centers, retail spaces, and other large open areas.

Constructed with a heavy-duty die-cast aluminum housing and high-quality tempered glass optics, this modular high bay is built to withstand harsh environments. The polyester powder-coated finish resists rust, corrosion, cracking, and peeling, while the IP66-rated enclosure protects against dust and water intrusion. Designed for universal 120-277V operation, the fixture supports chain mounting or surface mounting for installation flexibility. The 100W model is non-dimming, making it an excellent choice for consistent, maintenance-free lighting applications.

Designed for dependable long-term operation, the LOD-MSL-LHB100W-50K delivers a rated service life of 50,000 hours and is backed by a 5-year limited warranty. ETL Listed for safety and engineered to operate in temperatures from -22°F to 113°F (-30°C to 45°C), this modular high bay is an ideal replacement for traditional 300W HID fixtures while significantly reducing energy consumption and maintenance costs.

Technical Performance Specifications
