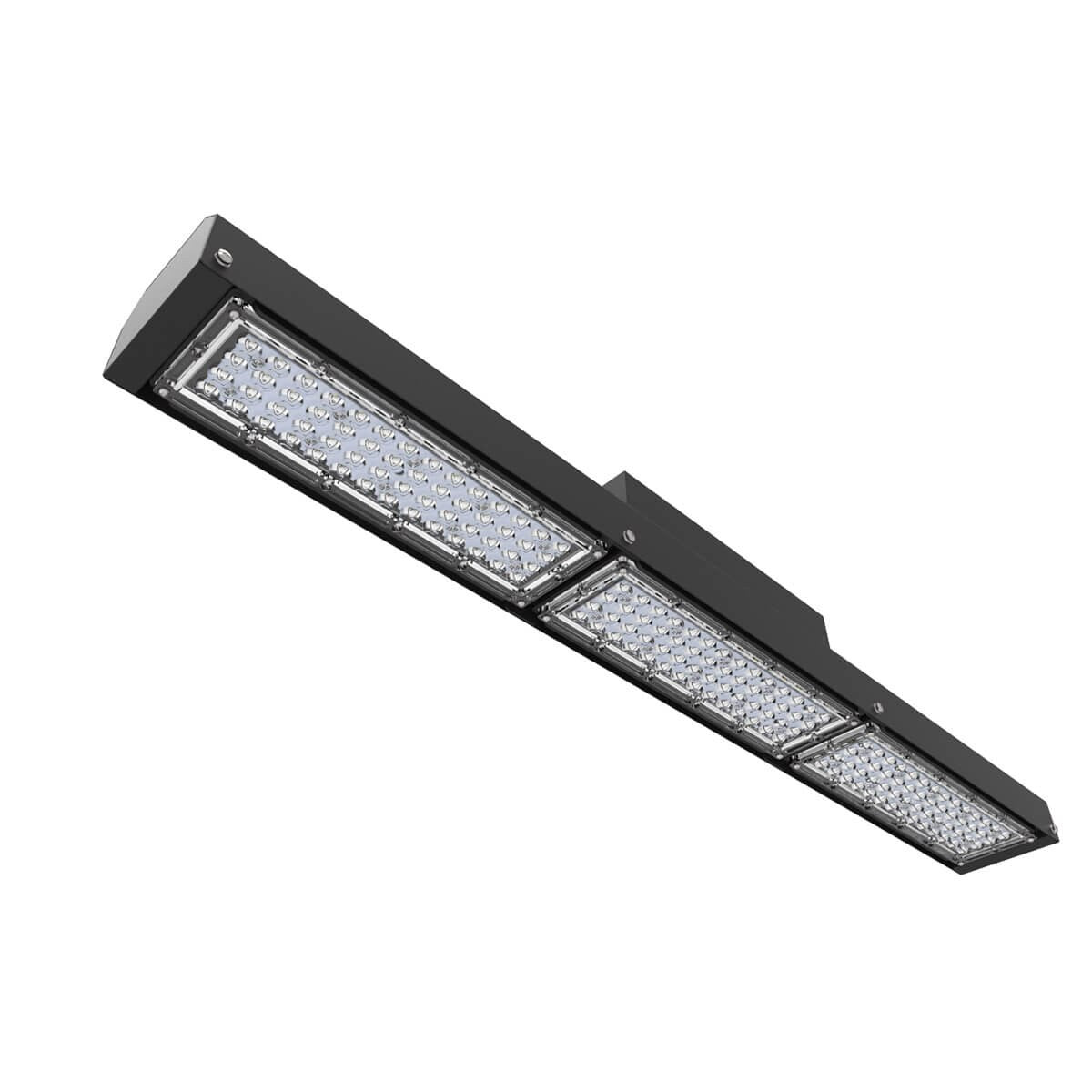

LEDONE HB0105 LOD-MSL-LHB150W-50KD 150W LED 3ft Modular High Bay Fixture 5000K 120-277V

Identification & Application

LEDone HB0105 LOD-MSL-LHB150W-50KD 150W LED 3ft Modular High Bay Fixture 5000K 120-277V

The LEDone HB0105 LOD-MSL-LHB150W-50KD is a high-performance 3-foot LED modular high bay fixture designed to provide powerful, energy-efficient illumination for demanding commercial and industrial environments. Operating at 150 watts and delivering 21,750 lumens with an exceptional efficacy of 145 lumens per watt, this fixture produces crisp 5000K daylight illumination using premium Philips Lumileds 3030 LED chips. Its wide 110° beam angle ensures consistent, uniform light distribution throughout warehouses, manufacturing facilities, distribution centers, retail buildings, and other high-ceiling applications.

Constructed with a heavy-duty die-cast aluminum housing and high-quality tempered glass optics, this modular high bay is built for long-lasting durability in harsh operating conditions. The polyester powder-coated finish resists rust, corrosion, cracking, and peeling, while the IP66-rated enclosure protects against dust and water intrusion. Operating on universal 120-277V input, the fixture includes standard 0-10V dimming and supports either chain mounting or surface mounting, providing flexibility for both retrofit and new construction installations.

Designed for dependable long-term performance, the LOD-MSL-LHB150W-50KD offers a rated life of 50,000 hours and is backed by a 5-year limited warranty. ETL Listed for safety and engineered to operate in temperatures from -22°F to 113°F (-30°C to 45°C), this modular high bay is an excellent replacement for traditional 400W HID fixtures while significantly reducing maintenance and energy costs.

Technical Performance Specifications
