LEDONE HB0106 LOD-MSL-LHB200W-50KD 200W LED 4ft Modular High Bay Fixture 5000K 120-277V

Identification & Application

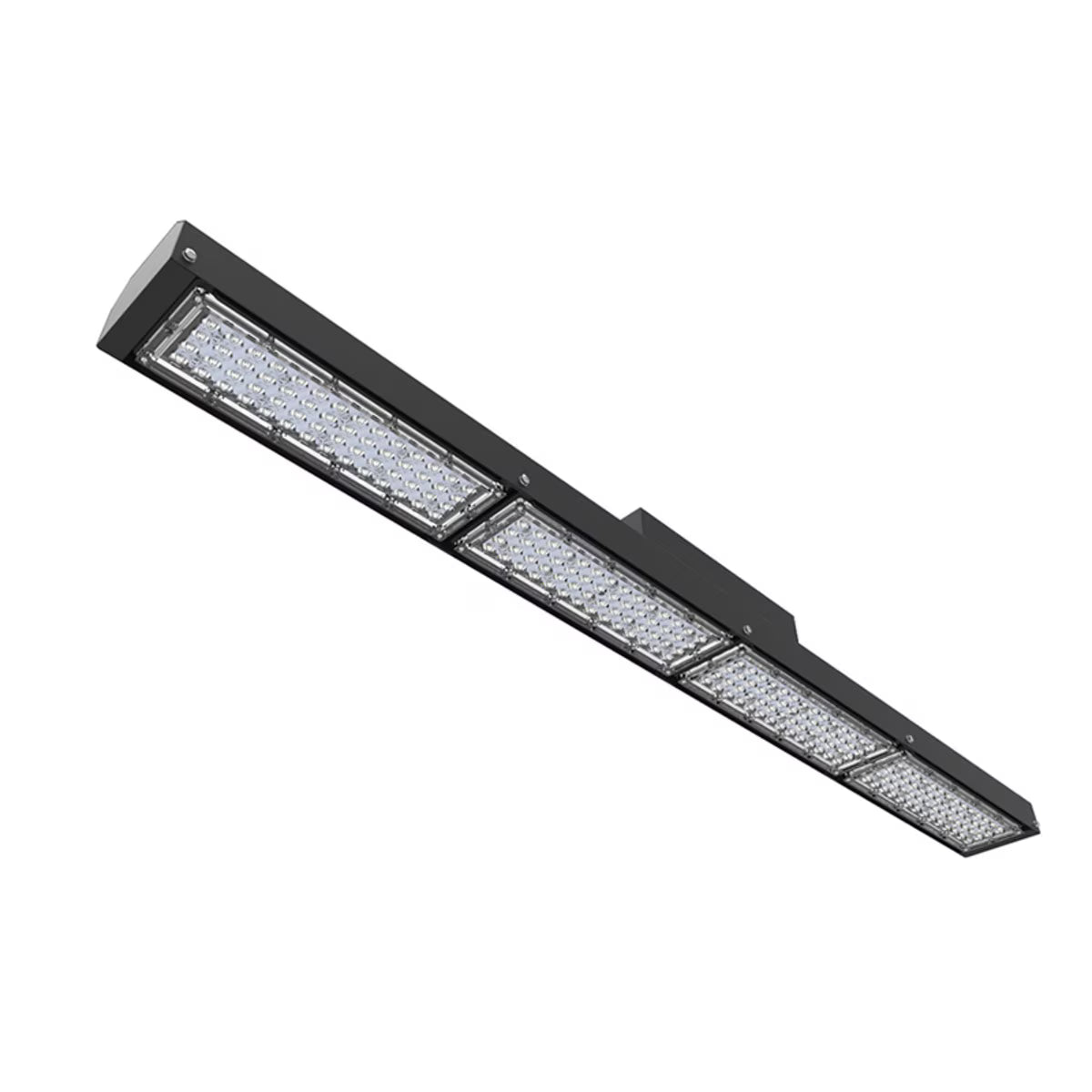

LEDone HB0106 LOD-MSL-LHB200W-50KD 200W LED 4ft Modular High Bay Fixture 5000K 120-277V

The LEDone HB0106 LOD-MSL-LHB200W-50KD is a heavy-duty 4-foot LED modular high bay fixture engineered to deliver exceptional illumination for large commercial and industrial facilities. Operating at 200 watts and producing an impressive 28,600 lumens with efficacy up to 143 lumens per watt, this fixture provides bright 5000K daylight illumination using premium Philips Lumileds 3030 LED chips. Its wide 110° beam angle delivers uniform light distribution throughout warehouses, manufacturing plants, distribution centers, gymnasiums, and other high-ceiling environments.

Constructed with a rugged die-cast aluminum housing and high-quality tempered glass optics, this modular high bay is designed to withstand demanding operating conditions. The polyester powder-coated finish resists rust, corrosion, cracking, and peeling, while the IP66-rated enclosure protects the fixture from dust and water intrusion. Universal 120-277V operation combined with standard 0-10V dimming provides installation flexibility, and the fixture supports either chain mounting or surface mounting for new construction or retrofit applications.

Designed for long-lasting reliability, the LOD-MSL-LHB200W-50KD features a 50,000-hour rated service life and is backed by a 5-year limited warranty. ETL Listed for safety and engineered to operate in temperatures ranging from -22°F to 113°F (-30°C to 45°C), this modular high bay provides an energy-efficient replacement for traditional 600W HID fixtures while significantly reducing maintenance requirements and operating costs.

Technical Performance Specifications
