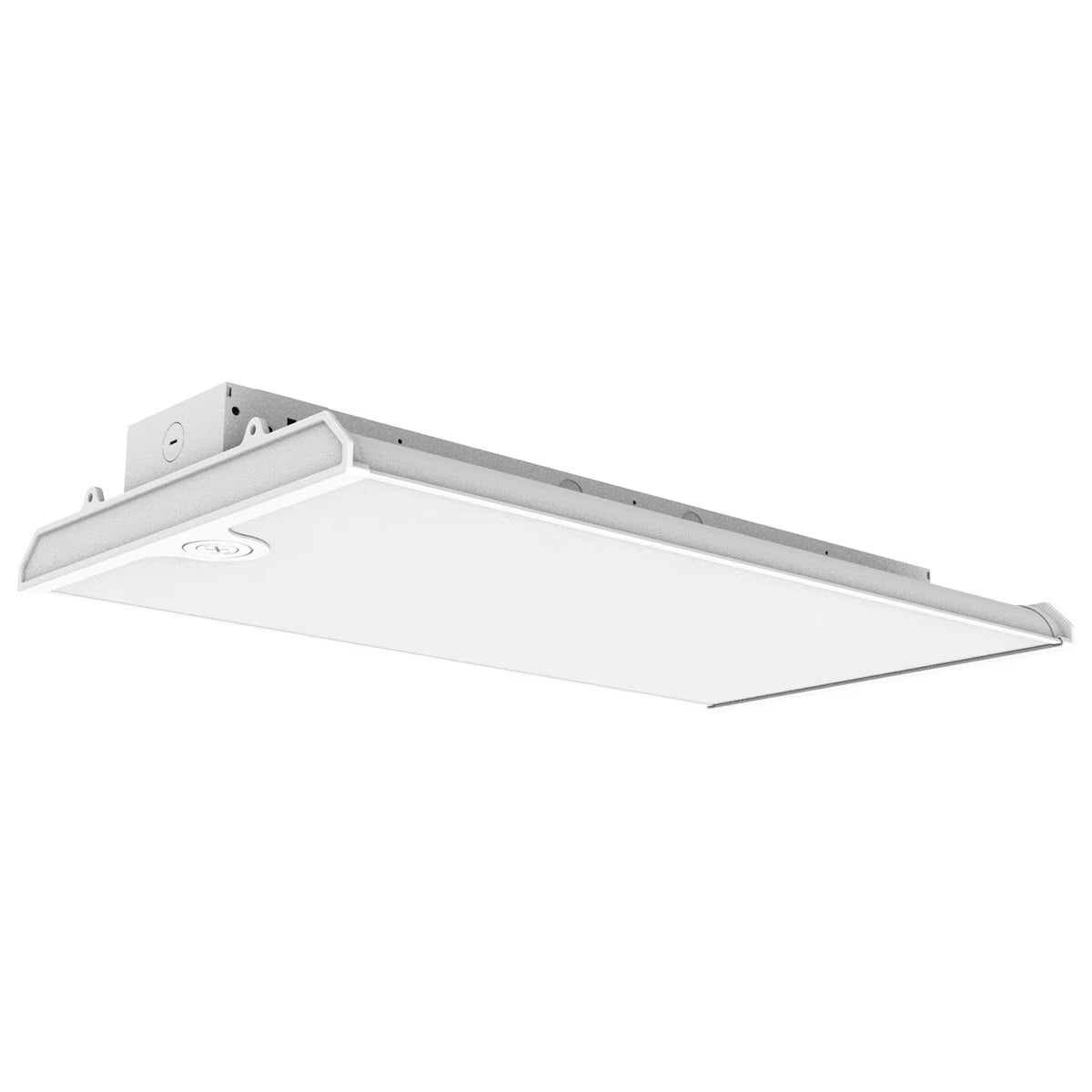

LEDONE HB0263 LOC-4FTHLHB-MW310W3CCT 230/270/310W LED 4ft Linear High Bay Fixture 3500K/4000K/5000K 120-277V

Identification & Application

LEDone HB0263 LOC-4FTHLHB-MW310W3CCT 230/270/310W LED 4ft Linear High Bay Fixture 3500K/4000K/5000K 120-277V

The LEDone HB0263 LOC-4FTHLHB-MW310W3CCT is a multi-wattage, multi-CCT 4-foot LED linear high bay fixture designed to provide powerful and energy-efficient illumination in large commercial and industrial spaces. Selectable 230W, 270W, or 310W output combined with selectable 3500K, 4000K, or 5000K color temperatures allows installers to customize the fixture's light output and color appearance while reducing the need to stock multiple models.

Constructed with a white powder-coated sheet metal housing and a frosted polycarbonate lens, the fixture utilizes high-performance Seoul LED chips to deliver up to 46,500 lumens at an efficacy of 150 lumens per watt. Universal 120-277VAC operation, standard 0-10V dimming, and an integrated sensor base provide compatibility with optional microwave, PIR, Bluetooth, and daylight harvesting sensors for advanced lighting control and increased energy savings.

Ideal for warehouses, factories, distribution centers, supermarkets, airports, logistics centers, exhibition halls, and other large indoor spaces, the fixture provides a 95° beam angle for effective high bay light distribution. V-hook and chain, pendant, and surface mounting options support flexible installation, while the 50,000-hour rated life and 5-year limited warranty provide dependable long-term performance.

Technical Performance Specifications
